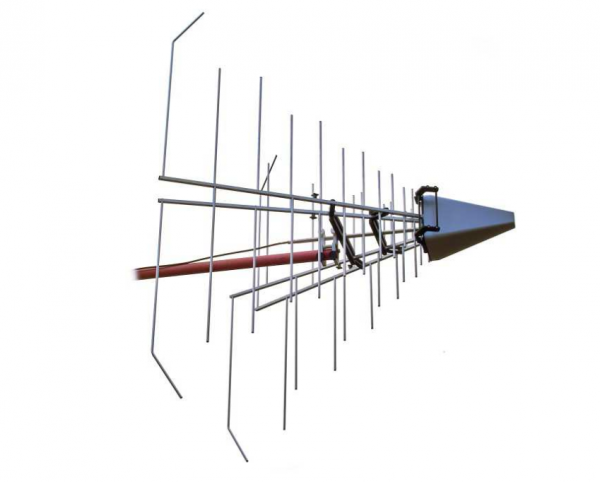

70MHz- 10GHz EMC Stacked Logarithmic-Periodic Broadband-Antenna OVLA-00710

70MHz- 10GHz EMC Stacked Logarithmic-Periodic Broadband-Antenna OVLA-00710

0 out of 5

The RFECHO stacked Logarithmic Periodic Dipole Antenna frequency range is70MHz to 10GHz。The OVLA-00710 was specially designed for wideband immunity tests. The unique OVLA-00710 is able to cover the entire frequency range from 70 MHz to 10 GHz with a typical isotropic far-field gain of 8.6 dBi with a ripple of less than +/- 2.3 dB only. OVLA-00710 does provide the optimum out of gain。 Main Application: Generation of de。 fined high field strength levels for radiated immunity testing acc。

SKU: OVLA-00710 Category: EMC Antenna

Description

PDF

Plot

70MHz- 10GHz EMC Stacked Logarithmic-Periodic Broadband-Antenna OVLA-0071070MHz- 10GHz EMC Stacked Logarithmic-Periodic Broadband-Antenna OVLA-0071070MHz- 10GHz EMC Stacked Logarithmic-Periodic Broadband-Antenna OVLA-00710

Additional information

Min. Frequency (MHz)

70

Max. Frequency (GHz)

10

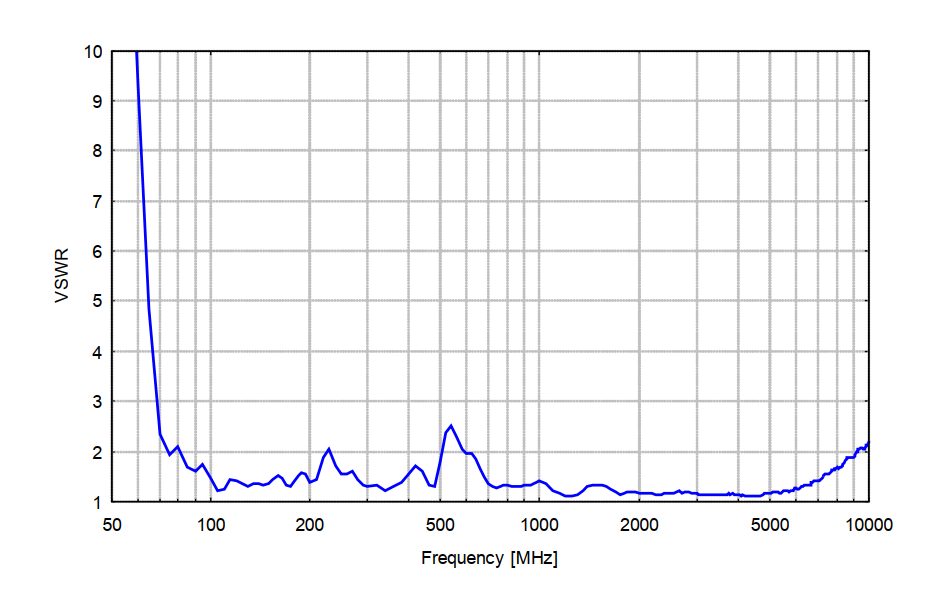

VSWR

2

Gain (dBi)

8.6dBi±2.3dB

Polarization

Linear

Impedance (Ω)

50

Connector

Type N female / Type 7/16 female

Pattern Type

Directional
