80MHz-1GHz EMC Antenna V-Log Periodic Array OVLA-00810

80MHz-1GHz EMC Antenna V-Log Periodic Array OVLA-00810

0 out of 5

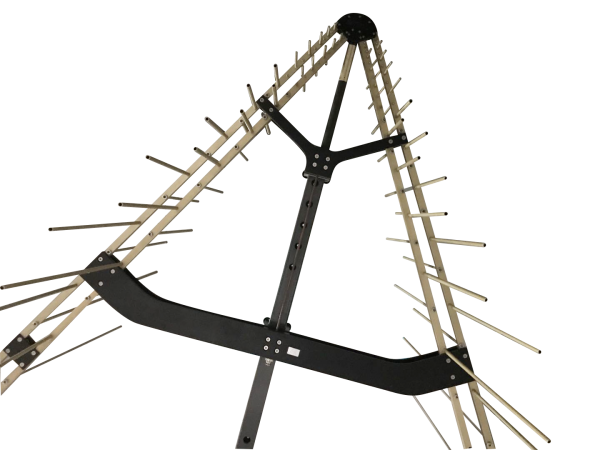

The RFECHO OVLA-00810 V-Log PeriodicAntenna offers a wide frequency range of 80MHz to 1GHz with enhanced gain over standard log periodic dipole array antennas. The OVLA-00810 features equalized E and H plane beam-widths, and its unique, feed design provides improved high-frequency response. Robust Design The OVLA-00810 is built for the harsh environments associated with EMC testing. It features an ultra-robust mechanical design and a highly durable feed to withstand the rigors of daily use.

SKU: OVLA-00810 Category: EMC Antenna

Description

PDF

Plot

80MHz-1GHz EMC Antenna V-Log Periodic Array OVLA-0081080MHz-1GHz EMC Antenna V-Log Periodic Array OVLA-00810

Additional information

Min. Frequency (MHz)

80

Max. Frequency (GHz)

1

VSWR

1.5:1 average

Gain (dBi)

8

Polarization

Linear

Impedance (Ω)

50

Connector

Type 7/16 female

Pattern Type

Directional
