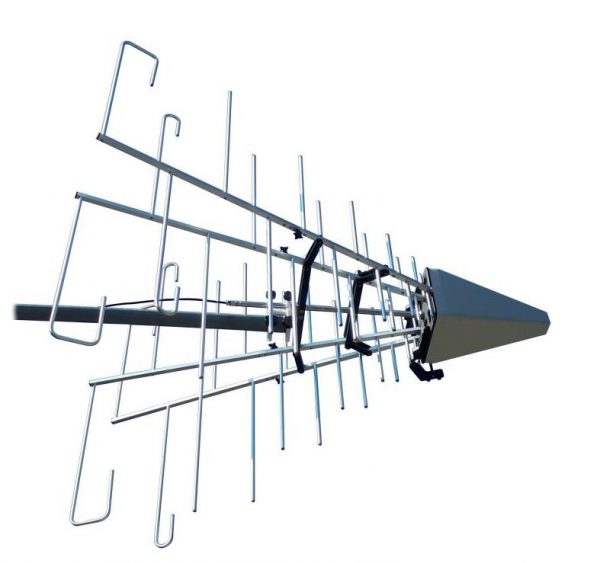

80MHz-10GHz EMC antenna V-Log Periodic Array OVLA-008100

80MHz-10GHz EMC antenna V-Log Periodic Array OVLA-008100

0 out of 5

The RFECHO OVLA-00810 V-Log Periodic Antenna offers a wide frequency range of80MHz to 10GHz with enhanced gain over standard log periodic dipole array antennas. The OVLA-00810 Used for anti-interference function in the frequency range from 80 MHz to10GHz. OVLA-008100 is a specially designed spectrum sensing test with a wide frequency range. Now, a single antenna can be used to cover the whole frequency range from 80 MHz to 10 GHz, and the far-field isothermal gain of 8.1 dBi is only +/-2.8 dB. Robust Design The OVLA-00810 is built for the harsh environments associated with EMC testing. It features an ultra-robust mechanical design and a highly durable feed to withstand the rigors of daily use.

SKU: OVLA-008100 Category: EMC Antenna

Description

PDF

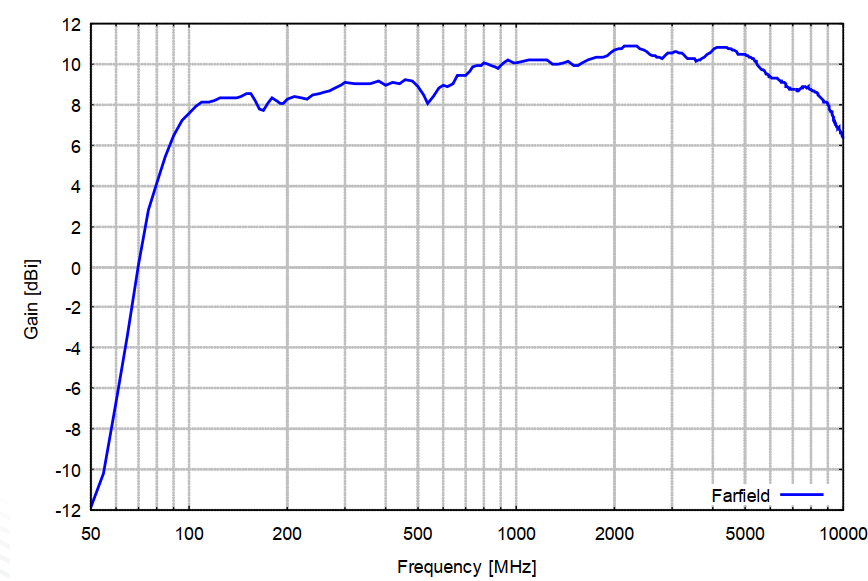

Plot

80MHz-10GHz EMC antenna V-Log Periodic Array OVLA-00810080MHz-10GHz EMC antenna V-Log Periodic Array OVLA-00810080MHz-10GHz EMC antenna V-Log Periodic Array OVLA-008100

Additional information

Min. Frequency (MHz)

80

Max. Frequency (GHz)

10

VSWR

<2

Gain (dBi)

8.1dBi±2.8dB

Polarization

Linear

Impedance (Ω)

50

Connector

N-Type, female

Pattern Type

Directional
