75 V / 220 uF CA38SH High-Temperature (175degC) Non-Solid Electrolyte Tantalum Capacitor
Rated Voltage (Ur): 75 V
Capacitance (CR): 220 uF
Tolerance: M (+/-20%)
Case Code: T3
- Description
- Datasheet

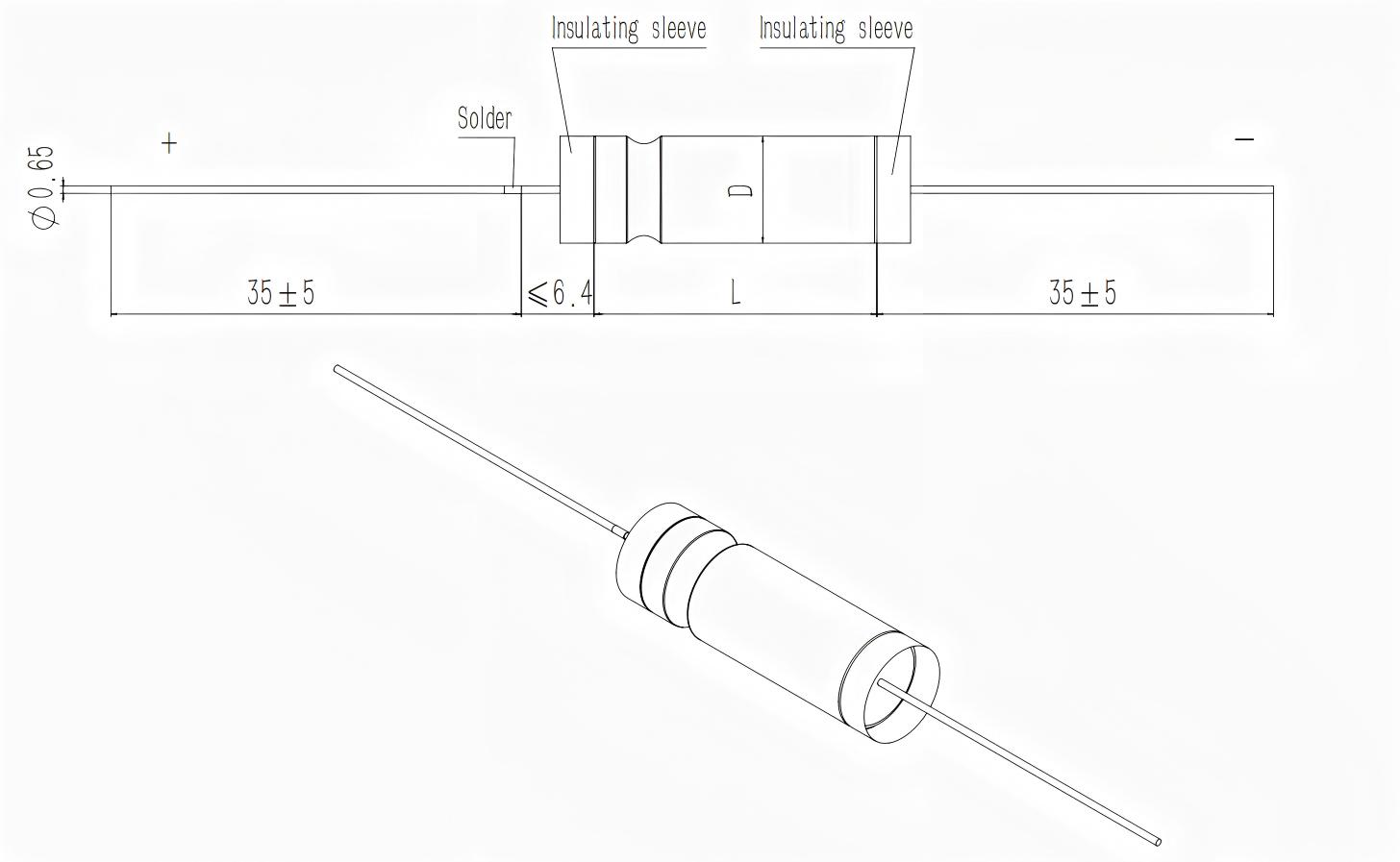

- Outline
- Reviews (0)
Description
High-temperature (175degC) non-solid electrolyte tantalum capacitor. Voltage derating required above +85degC.
CA38SH-75-220-M-T3 | |
| 75 V / 220 uF CA38SH High-Temperature (175degC) Non-Solid Electrolyte Tantalum Capacitor | |
Property | Value |
| Rated Voltage (Ur)(V) | 75 |
| Derated Voltage (175degC)(V) | 45 |
| Capacitance (CR)(uf) | 220 |
| Max. DC Leakage (25degC)(uA) | 5 |
| Max. DC Leakage (175degC)(uA) | 40 |
| Max. ESR (120 Hz)(Ohm) | 0.9 |
| Max. Ripple Current (85degC/40kHz)(mA) | 2100 |
| Capacitance Change (-25degC/-85degC/125degC)(%) | -15 / 10 / 25 |
| Capacitance Tolerance | M: +/-20% |
| Dimensions | D: 9.52 mm; L: 19.5 mm |
| Operational Temperature (°C) | -55 to +175 |
| Storage Life | <=18 months |
| Storage Conditions | RH <=70% |
| Applicable Standards | GJB 733B-2011; Q/TCPC2005-2024 |
Features | |
| Superior Electrical Stability | |
| Compact Design | |
| High Reliability | |
| Long-Lasting Service Life | |
|
| |
| Excellent Shelf-Stability | |
Applications | |
| Designed for use in aerospace, aviation, satellite, missile, ordnance, electronic, naval, and communication systems requiring high-reliability performance in DC or pulsating circuits. | |
| Particularly suitable for aerospace and aviation applications where strict space and volume constraints are imposed on capacitor components. | |
