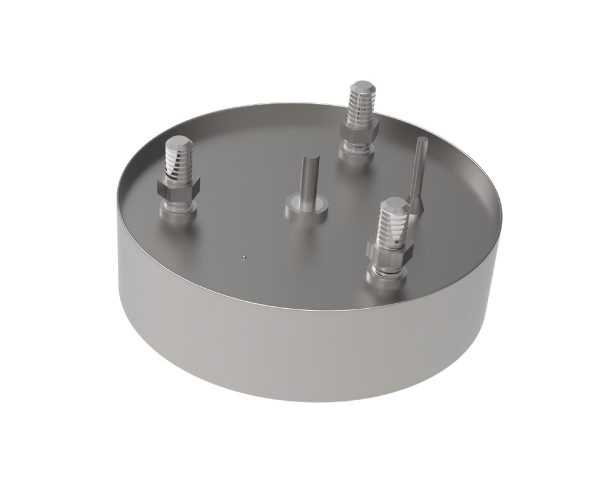

80 V / 8000 uF CAK36C Hermetically Sealed High-Energy Composite Tantalum Capacitor
CAK36C-80-8000-K-CE6-CL
Rated Voltage (Ur): 80 V
Category Voltage (Uc): 48 V
Surge Voltage (Us): 88 V
Capacitance (CR): 8000 uF
Capacitance Tolerance: +/-10% (Code K)
Case Code: CE6 / Size: 36 x 20
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The CAK36C-80-8000-K-CE6-CL is a hermetically sealed high-energy composite tantalum electrolytic capacitor rated at 80 V and 8000 uF with tolerance code K (+/-10%). The rated voltage is derated to 48 V for high-temperature operation, with a surge voltage of 88 V. Key electrical limits include tanδ of 45% max at 100 Hz, ESR of 0.035 Ohm max at 1 kHz, DC leakage current of 500 uA max at 25degC and 4000 / 5000 uA max at 125degC/150degC, and impedance of 2 Ohm max at 100 Hz. Capacitance change is -30 / +55 / +65% at -55degC and +60%/+70% at 125degC/150degC. The device operates from -55degC to +150degC, with voltage derating required above +85degC, and conforms to GJB733B-2011 and Q/TCPC2001-2024.
CAK36C-80-8000-K-CE6-CL | |
| 80 V / 8000 uF CAK36C Hermetically Sealed High-Energy Composite Tantalum Capacitor | |
Property | Value |
| Rated Voltage (Ur) (V) | 80 |
| Category Voltage (Uc) (V) | 48 |
| Surge Voltage (Us) (V) | 88 |
| Capacitance (CR) (uF) | 8000 |
| Max. tanδ (100 Hz) (%) | 45 |
| Max. ESR (1 kHz)(Ω) | 0.035 |
| Max. DC Leakage Current (25°C)(uA) | 500 |
| Max. DC Leakage Current (125°C/150°C)(uA) | 4000 / 5000 |
| Max. Impedance (100 Hz)(Ω) | 2 |
| Capacitance Change (-55°C / 125°C / 150°C)(%) | -30 / 55 / 65 |
| Capacitance Tolerance(%) | K: ±10 |
| Case Size(mm) | φ36 × 20 mm |

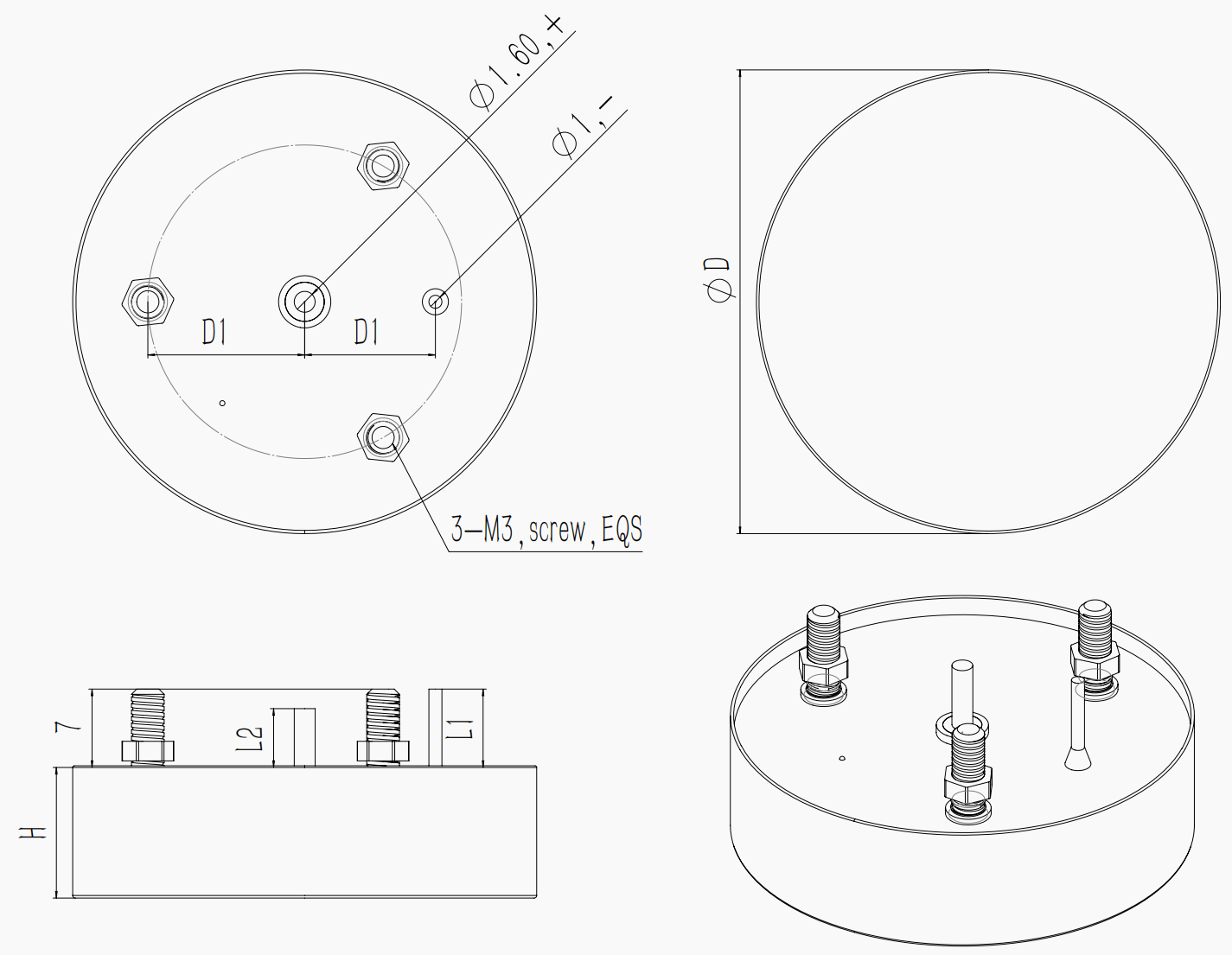

| Dimensions | D: 36+/-0.5 mm; H: 20+/-0.5 mm |
| Lead/Seal Diameter (D1) | 10.16+/-0.38 mm |
| Operational Temperature (°C) | -55 to +150 (derate voltage above +85) |
| Storage Temperature (°C) | -62degC to +130degC |
| Storage Conditions | RH ≤70% |
| Storage Life | ≤18 months from warehouse entry |
Features | |
| Superior Electrical Stability | |
| Compact Design | |
| High Reliability | |
| Long-Lasting Service Life | |
Applications | |
| For High-reliability military electronic equipment used in aviation,aerospace, weapons, satellites, radar, and other applications, where DC, pulsating, and low ripple circuits are required. | |
