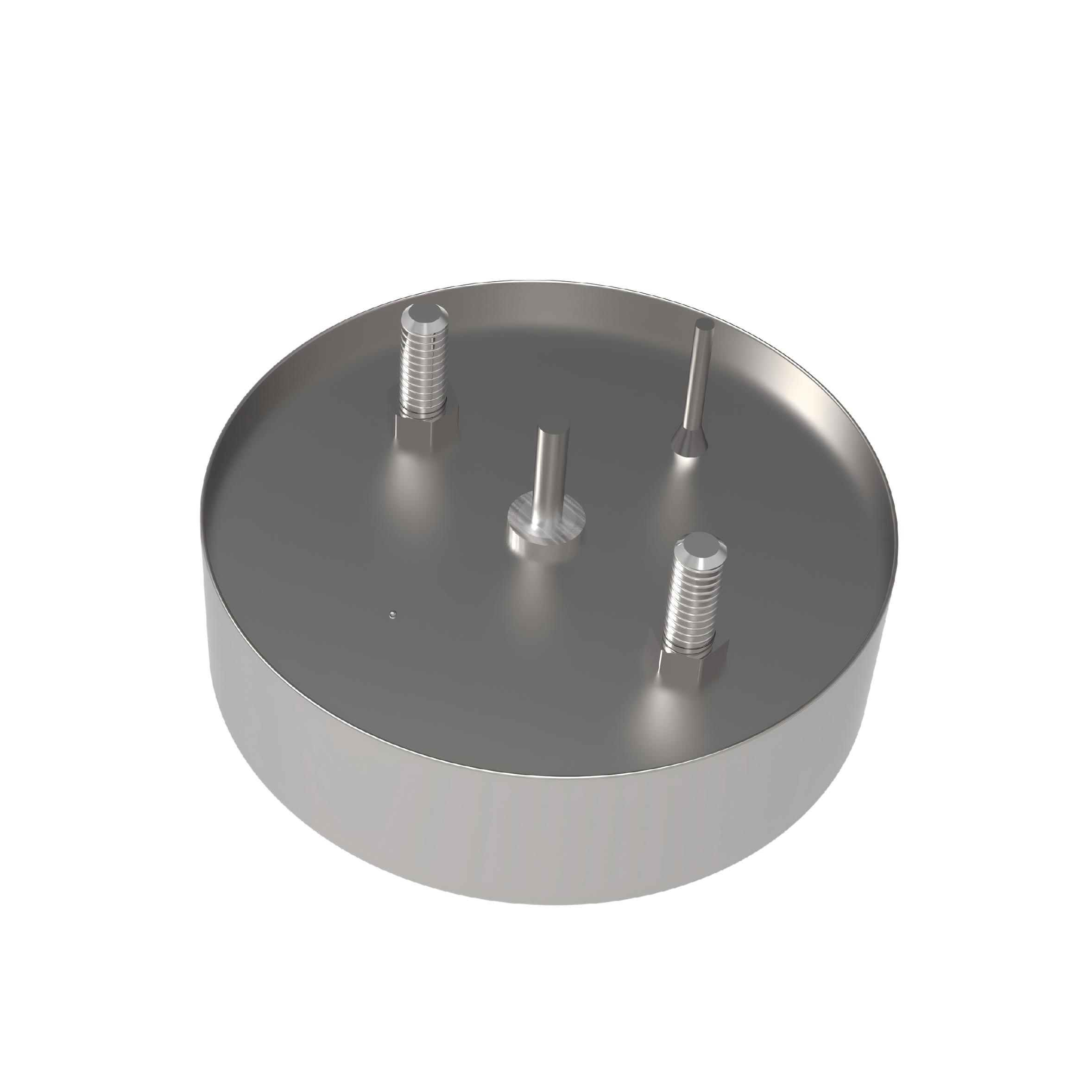

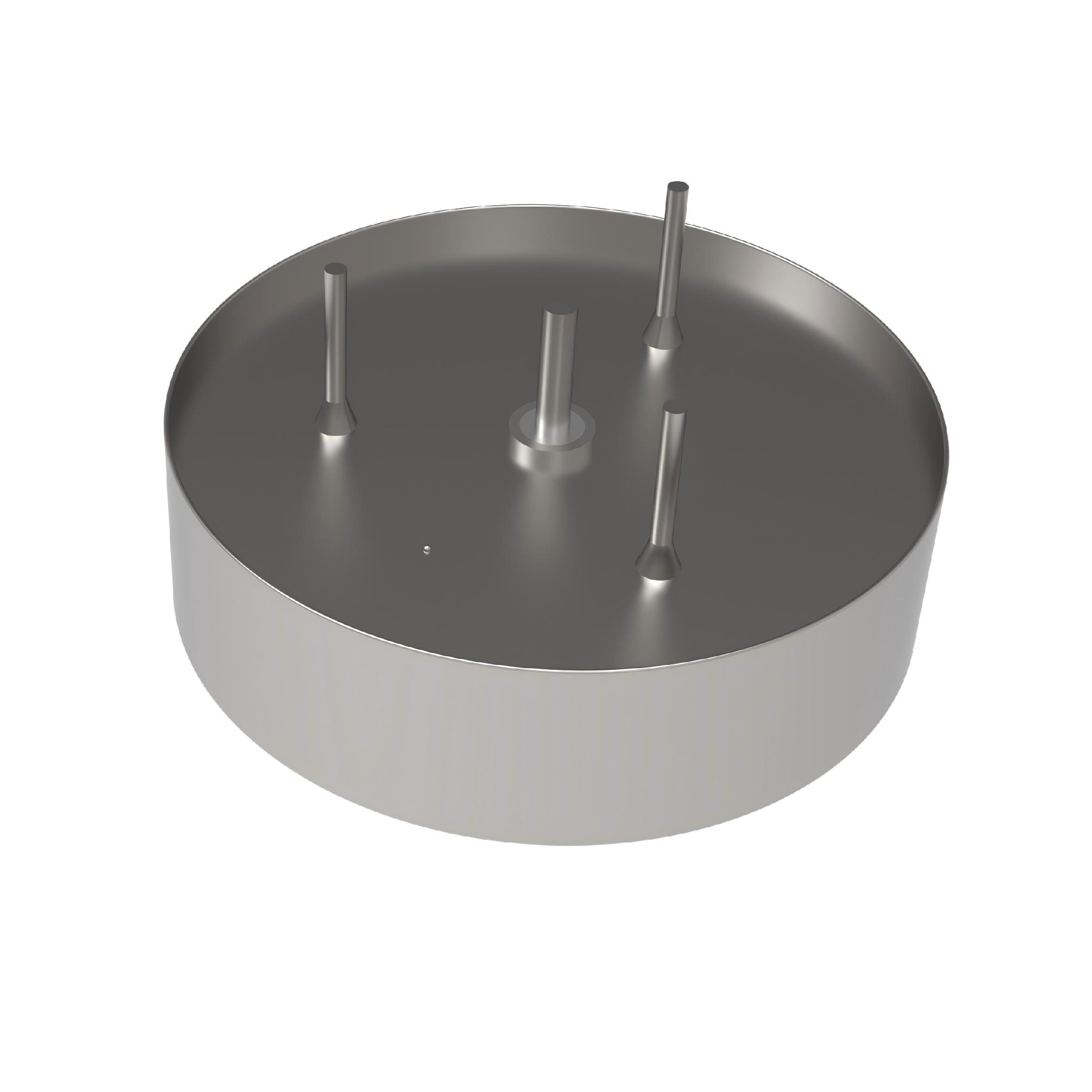

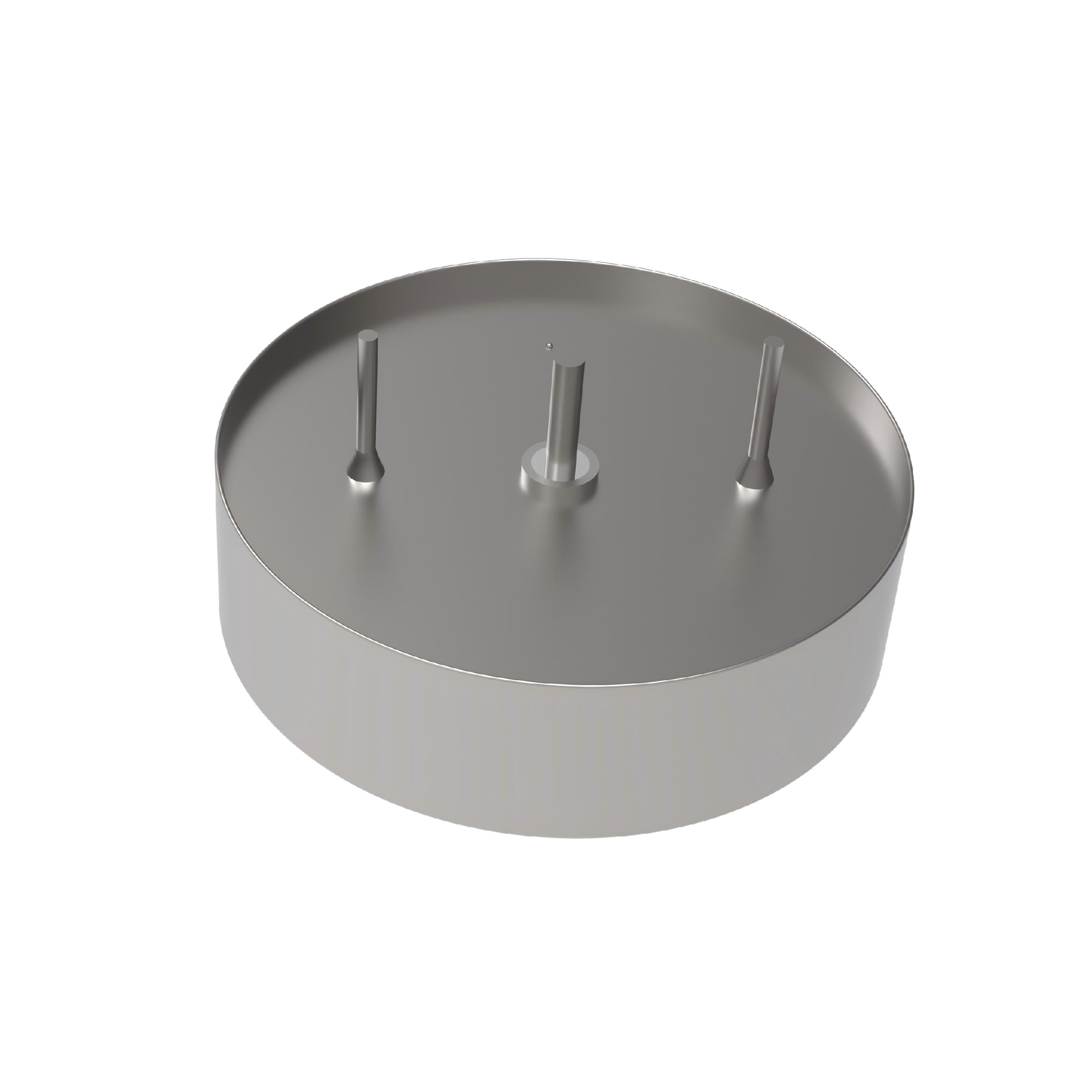

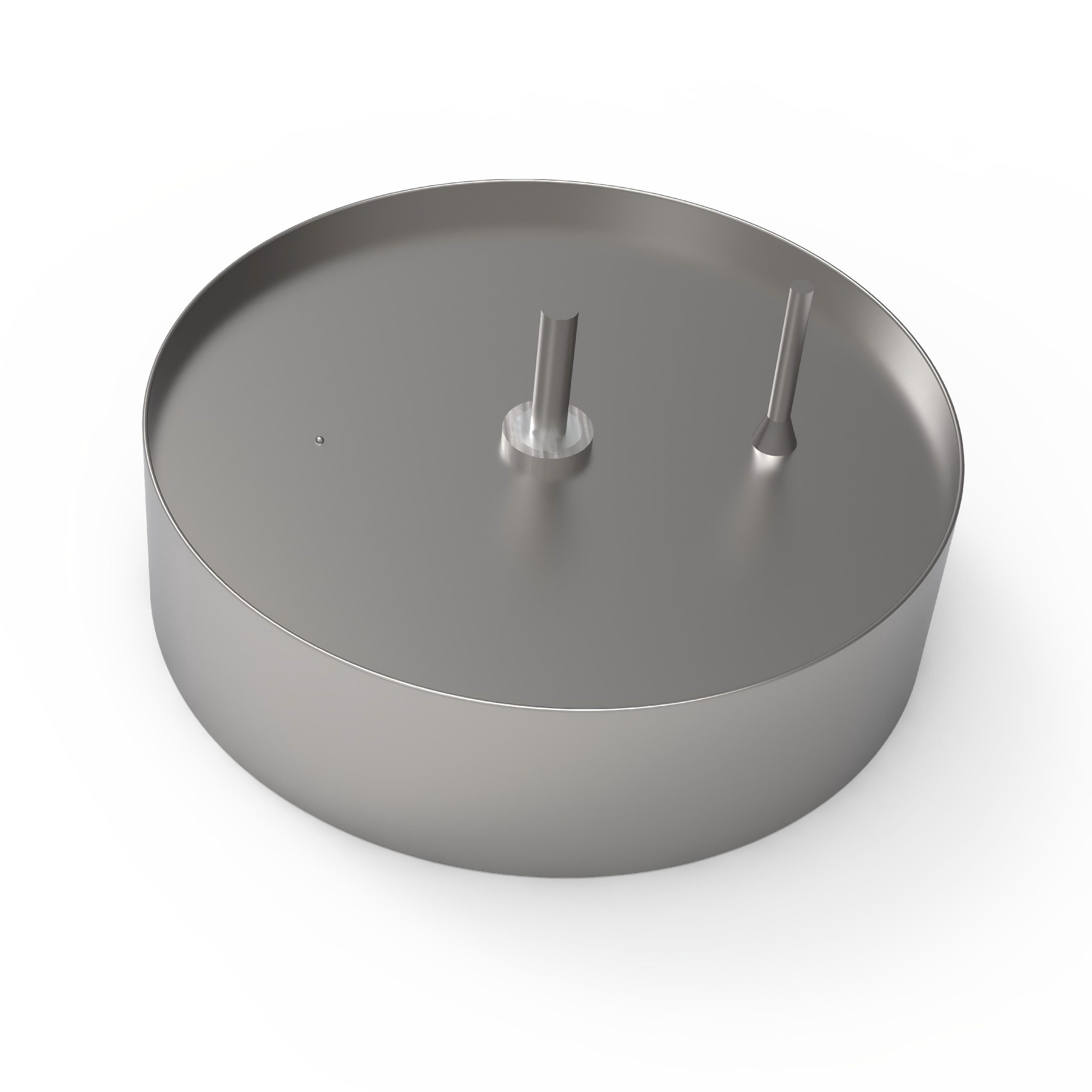

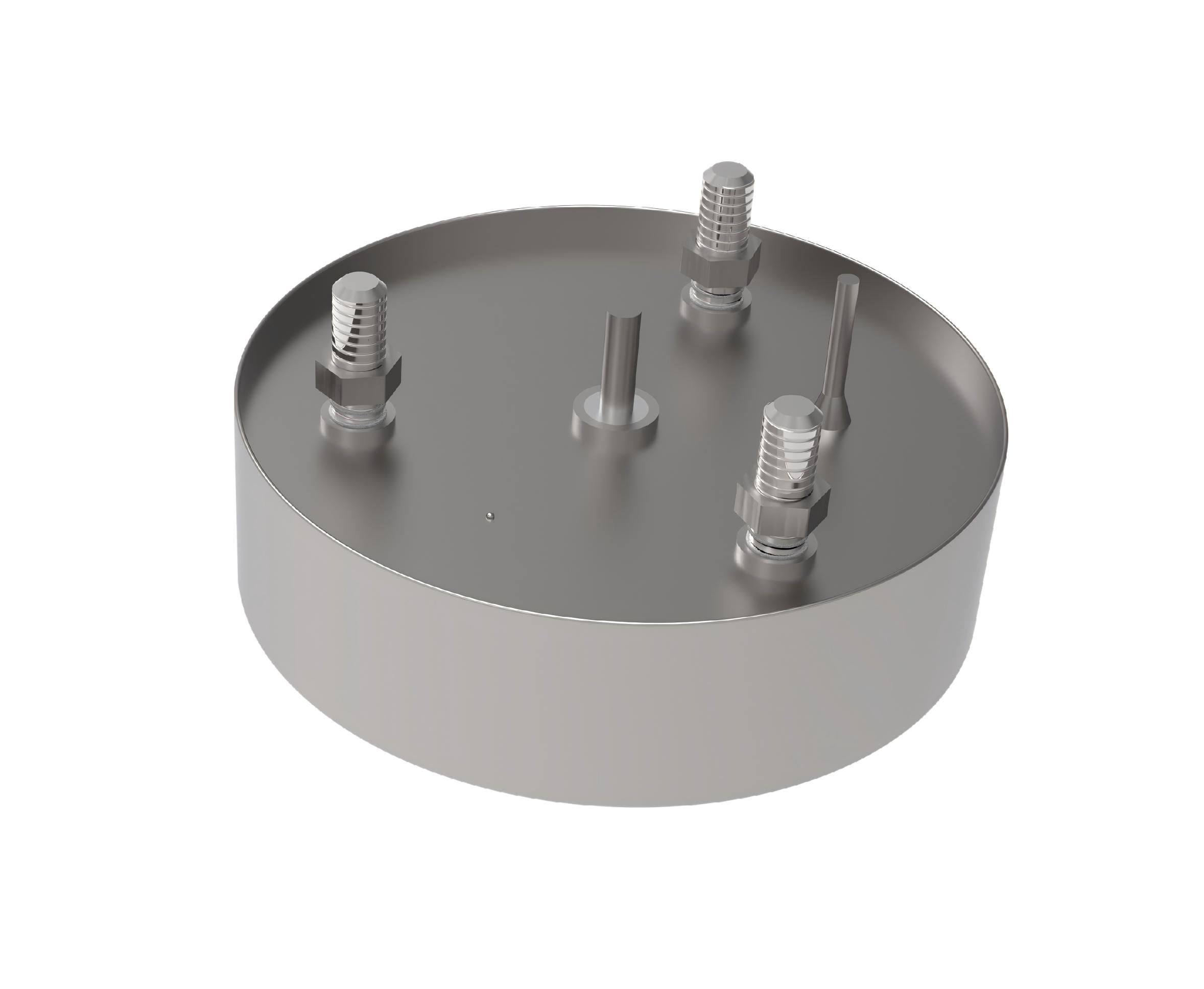

CAK36C Hermetically Sealed High-Temperature (150degC) High-Energy Hybrid Tantalum Capacitor

Filterable Table

SKU	Rated Voltage (Ur) (V)	Surge Voltage (Us) (V)	Capacitance (CR) (uF)	Case Size(mm)	Case Type	Dimensions
CAK36C-10-3000-K-CA1-A	10	11	3000	φ12 × 8 mm	A	D: 12+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-10-3000-K-CA1-B	10	11	3000	φ12 × 8 mm	B	D: 12+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-10-3000-K-CA1-C	10	11	3000	φ12 × 8 mm	C	D: 12+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-10-3600-K-CA2-A	10	11	3600	φ12 × 10 mm	A	D: 12+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-10-3600-K-CA2-B	10	11	3600	φ12 × 10 mm	B	D: 12+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-10-3600-K-CA2-C	10	11	3600	φ12 × 10 mm	C	D: 12+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-10-6000-K-CA3-A	10	11	6000	φ12 × 12 mm	A	D: 12+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-10-6000-K-CA3-B	10	11	6000	φ12 × 12 mm	B	D: 12+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-10-6000-K-CA3-C	10	11	6000	φ12 × 12 mm	C	D: 12+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-10-6000-K-CB1-A	10	11	6000	φ16 × 8 mm	A	D: 16+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-6000-K-CB1-B	10	11	6000	φ16 × 8 mm	B	D: 16+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-6000-K-CB1-C	10	11	6000	φ16 × 8 mm	C	D: 16+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-8000-K-CB2-A	10	11	8000	φ16 × 10 mm	A	D: 16+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-8000-K-CB2-B	10	11	8000	φ16 × 10 mm	B	D: 16+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-8000-K-CB2-C	10	11	8000	φ16 × 10 mm	C	D: 16+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-12000-K-CB3-A	10	11	12000	φ16 × 12 mm	A	D: 16+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-12000-K-CB3-B	10	11	12000	φ16 × 12 mm	B	D: 16+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-12000-K-CB3-C	10	11	12000	φ16 × 12 mm	C	D: 16+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-18000-K-CB4-A	10	11	18000	φ16 × 16 mm	A	D: 16+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-18000-K-CB4-B	10	11	18000	φ16 × 16 mm	B	D: 16+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-18000-K-CB4-C	10	11	18000	φ16 × 16 mm	C	D: 16+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-10-12000-K-CD1-A	10	11	12000	φ22 × 8 mm	A	D: 22+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-12000-K-CD1-B	10	11	12000	φ22 × 8 mm	B	D: 22+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-12000-K-CD1-C	10	11	12000	φ22 × 8 mm	C	D: 22+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-12000-K-CD1-BL	10	11	12000	φ22 × 8 mm	BL	D: 22+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-12000-K-CD1-CL	10	11	12000	φ22 × 8 mm	CL	D: 22+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-16000-K-CD2-A	10	11	16000	φ22 × 10 mm	A	D: 22+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-16000-K-CD2-B	10	11	16000	φ22 × 10 mm	B	D: 22+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-16000-K-CD2-C	10	11	16000	φ22 × 10 mm	C	D: 22+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-16000-K-CD2-BL	10	11	16000	φ22 × 10 mm	BL	D: 22+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-16000-K-CD2-CL	10	11	16000	φ22 × 10 mm	CL	D: 22+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-24000-K-CD3-A	10	11	24000	φ22 × 12 mm	A	D: 22+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-24000-K-CD3-B	10	11	24000	φ22 × 12 mm	B	D: 22+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-24000-K-CD3-C	10	11	24000	φ22 × 12 mm	C	D: 22+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-24000-K-CD3-BL	10	11	24000	φ22 × 12 mm	BL	D: 22+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-24000-K-CD3-CL	10	11	24000	φ22 × 12 mm	CL	D: 22+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-36000-K-CD4-A	10	11	36000	φ22 × 16 mm	A	D: 22+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-36000-K-CD4-B	10	11	36000	φ22 × 16 mm	B	D: 22+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-36000-K-CD4-C	10	11	36000	φ22 × 16 mm	C	D: 22+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-36000-K-CD4-BL	10	11	36000	φ22 × 16 mm	BL	D: 22+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-36000-K-CD4-CL	10	11	36000	φ22 × 16 mm	CL	D: 22+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-48000-K-CD5-A	10	11	48000	φ22 × 18 mm	A	D: 22+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-48000-K-CD5-B	10	11	48000	φ22 × 18 mm	B	D: 22+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-48000-K-CD5-C	10	11	48000	φ22 × 18 mm	C	D: 22+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-48000-K-CD5-BL	10	11	48000	φ22 × 18 mm	BL	D: 22+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-48000-K-CD5-CL	10	11	48000	φ22 × 18 mm	CL	D: 22+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-48000-K-CD6-A	10	11	48000	φ22 × 20 mm	A	D: 22+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-48000-K-CD6-B	10	11	48000	φ22 × 20 mm	B	D: 22+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-48000-K-CD6-C	10	11	48000	φ22 × 20 mm	C	D: 22+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-48000-K-CD6-BL	10	11	48000	φ22 × 20 mm	BL	D: 22+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-48000-K-CD6-CL	10	11	48000	φ22 × 20 mm	CL	D: 22+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-10-40000-K-CE1-A	10	11	40000	φ36 × 8 mm	A	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-40000-K-CE1-B	10	11	40000	φ36 × 8 mm	B	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-40000-K-CE1-C	10	11	40000	φ36 × 8 mm	C	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-40000-K-CE1-BL	10	11	40000	φ36 × 8 mm	BL	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-40000-K-CE1-CL	10	11	40000	φ36 × 8 mm	CL	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-50000-K-CE2-A	10	11	50000	φ36 × 10 mm	A	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-50000-K-CE2-B	10	11	50000	φ36 × 10 mm	B	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-50000-K-CE2-C	10	11	50000	φ36 × 10 mm	C	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-50000-K-CE2-BL	10	11	50000	φ36 × 10 mm	BL	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-50000-K-CE2-CL	10	11	50000	φ36 × 10 mm	CL	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-80000-K-CE3-A	10	11	80000	φ36 × 12 mm	A	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-80000-K-CE3-B	10	11	80000	φ36 × 12 mm	B	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-80000-K-CE3-C	10	11	80000	φ36 × 12 mm	C	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-80000-K-CE3-BL	10	11	80000	φ36 × 12 mm	BL	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-10-80000-K-CE3-CL	10	11	80000	φ36 × 12 mm	CL	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-1500-K-CA1-A	16	17.6	1500	φ12 × 8 mm	A	D: 12+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-16-1500-K-CA1-B	16	17.6	1500	φ12 × 8 mm	B	D: 12+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-16-1500-K-CA1-C	16	17.6	1500	φ12 × 8 mm	C	D: 12+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-16-1800-K-CA2-A	16	17.6	1800	φ12 × 10 mm	A	D: 12+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-16-1800-K-CA2-B	16	17.6	1800	φ12 × 10 mm	B	D: 12+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-16-1800-K-CA2-C	16	17.6	1800	φ12 × 10 mm	C	D: 12+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-16-3000-K-CA3-A	16	17.6	3000	φ12 × 12 mm	A	D: 12+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-16-3000-K-CA3-B	16	17.6	3000	φ12 × 12 mm	B	D: 12+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-16-3000-K-CA3-C	16	17.6	3000	φ12 × 12 mm	C	D: 12+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-16-4000-K-CB1-A	16	17.6	4000	φ16 × 8 mm	A	D: 16+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-4000-K-CB1-B	16	17.6	4000	φ16 × 8 mm	B	D: 16+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-4000-K-CB1-C	16	17.6	4000	φ16 × 8 mm	C	D: 16+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-5000-K-CB2-A	16	17.6	5000	φ16 × 10 mm	A	D: 16+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-5000-K-CB2-B	16	17.6	5000	φ16 × 10 mm	B	D: 16+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-5000-K-CB2-C	16	17.6	5000	φ16 × 10 mm	C	D: 16+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-8000-K-CB3-A	16	17.6	8000	φ16 × 12 mm	A	D: 16+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-8000-K-CB3-B	16	17.6	8000	φ16 × 12 mm	B	D: 16+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-8000-K-CB3-C	16	17.6	8000	φ16 × 12 mm	C	D: 16+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-12000-K-CB4-A	16	17.6	12000	φ16 × 16 mm	A	D: 16+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-12000-K-CB4-B	16	17.6	12000	φ16 × 16 mm	B	D: 16+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-12000-K-CB4-C	16	17.6	12000	φ16 × 16 mm	C	D: 16+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
CAK36C-16-7500-K-CD1-A	16	17.6	7500	φ22 × 8 mm	A	D: 22+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-7500-K-CD1-B	16	17.6	7500	φ22 × 8 mm	B	D: 22+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-7500-K-CD1-C	16	17.6	7500	φ22 × 8 mm	C	D: 22+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-7500-K-CD1-BL	16	17.6	7500	φ22 × 8 mm	BL	D: 22+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-7500-K-CD1-CL	16	17.6	7500	φ22 × 8 mm	CL	D: 22+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-10000-K-CD2-A	16	17.6	10000	φ22 × 10 mm	A	D: 22+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-10000-K-CD2-B	16	17.6	10000	φ22 × 10 mm	B	D: 22+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-10000-K-CD2-C	16	17.6	10000	φ22 × 10 mm	C	D: 22+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-10000-K-CD2-BL	16	17.6	10000	φ22 × 10 mm	BL	D: 22+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-10000-K-CD2-CL	16	17.6	10000	φ22 × 10 mm	CL	D: 22+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-15000-K-CD3-A	16	17.6	15000	φ22 × 12 mm	A	D: 22+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-15000-K-CD3-B	16	17.6	15000	φ22 × 12 mm	B	D: 22+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-15000-K-CD3-C	16	17.6	15000	φ22 × 12 mm	C	D: 22+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-15000-K-CD3-BL	16	17.6	15000	φ22 × 12 mm	BL	D: 22+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-15000-K-CD3-CL	16	17.6	15000	φ22 × 12 mm	CL	D: 22+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-22500-K-CD4-A	16	17.6	22500	φ22 × 16 mm	A	D: 22+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-22500-K-CD4-B	16	17.6	22500	φ22 × 16 mm	B	D: 22+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-22500-K-CD4-C	16	17.6	22500	φ22 × 16 mm	C	D: 22+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-22500-K-CD4-BL	16	17.6	22500	φ22 × 16 mm	BL	D: 22+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-22500-K-CD4-CL	16	17.6	22500	φ22 × 16 mm	CL	D: 22+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-30000-K-CD5-A	16	17.6	30000	φ22 × 18 mm	A	D: 22+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-30000-K-CD5-B	16	17.6	30000	φ22 × 18 mm	B	D: 22+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-30000-K-CD5-C	16	17.6	30000	φ22 × 18 mm	C	D: 22+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-30000-K-CD5-BL	16	17.6	30000	φ22 × 18 mm	BL	D: 22+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-30000-K-CD5-CL	16	17.6	30000	φ22 × 18 mm	CL	D: 22+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-30000-K-CD6-A	16	17.6	30000	φ22 × 20 mm	A	D: 22+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-30000-K-CD6-B	16	17.6	30000	φ22 × 20 mm	B	D: 22+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-30000-K-CD6-C	16	17.6	30000	φ22 × 20 mm	C	D: 22+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-30000-K-CD6-BL	16	17.6	30000	φ22 × 20 mm	BL	D: 22+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-30000-K-CD6-CL	16	17.6	30000	φ22 × 20 mm	CL	D: 22+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 7.5+/-0.38 mm
CAK36C-16-24000-K-CE1-A	16	17.6	24000	φ36 × 8 mm	A	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-24000-K-CE1-B	16	17.6	24000	φ36 × 8 mm	B	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-24000-K-CE1-C	16	17.6	24000	φ36 × 8 mm	C	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-24000-K-CE1-BL	16	17.6	24000	φ36 × 8 mm	BL	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-24000-K-CE1-CL	16	17.6	24000	φ36 × 8 mm	CL	D: 36+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-30000-K-CE2-A	16	17.6	30000	φ36 × 10 mm	A	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-30000-K-CE2-B	16	17.6	30000	φ36 × 10 mm	B	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-30000-K-CE2-C	16	17.6	30000	φ36 × 10 mm	C	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-30000-K-CE2-BL	16	17.6	30000	φ36 × 10 mm	BL	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-30000-K-CE2-CL	16	17.6	30000	φ36 × 10 mm	CL	D: 36+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-48000-K-CE3-A	16	17.6	48000	φ36 × 12 mm	A	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-48000-K-CE3-B	16	17.6	48000	φ36 × 12 mm	B	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-48000-K-CE3-C	16	17.6	48000	φ36 × 12 mm	C	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-48000-K-CE3-BL	16	17.6	48000	φ36 × 12 mm	BL	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-48000-K-CE3-CL	16	17.6	48000	φ36 × 12 mm	CL	D: 36+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-72000-K-CE4-A	16	17.6	72000	φ36 × 16 mm	A	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-72000-K-CE4-B	16	17.6	72000	φ36 × 16 mm	B	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-72000-K-CE4-C	16	17.6	72000	φ36 × 16 mm	C	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-72000-K-CE4-BL	16	17.6	72000	φ36 × 16 mm	BL	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-72000-K-CE4-CL	16	17.6	72000	φ36 × 16 mm	CL	D: 36+/-0.5 mm; H: 16+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-90000-K-CE5-A	16	17.6	90000	φ36 × 18 mm	A	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-90000-K-CE5-B	16	17.6	90000	φ36 × 18 mm	B	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-90000-K-CE5-C	16	17.6	90000	φ36 × 18 mm	C	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-90000-K-CE5-BL	16	17.6	90000	φ36 × 18 mm	BL	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-90000-K-CE5-CL	16	17.6	90000	φ36 × 18 mm	CL	D: 36+/-0.5 mm; H: 18+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-96000-K-CE6-A	16	17.6	96000	φ36 × 20 mm	A	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-96000-K-CE6-B	16	17.6	96000	φ36 × 20 mm	B	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-96000-K-CE6-C	16	17.6	96000	φ36 × 20 mm	C	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-96000-K-CE6-BL	16	17.6	96000	φ36 × 20 mm	BL	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-16-96000-K-CE6-CL	16	17.6	96000	φ36 × 20 mm	CL	D: 36+/-0.5 mm; H: 20+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 10.16+/-0.38 mm
CAK36C-25-1200-K-CA1-A	25	27.5	1200	φ12 × 8 mm	A	D: 12+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-25-1200-K-CA1-B	25	27.5	1200	φ12 × 8 mm	B	D: 12+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-25-1200-K-CA1-C	25	27.5	1200	φ12 × 8 mm	C	D: 12+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-25-1500-K-CA2-A	25	27.5	1500	φ12 × 10 mm	A	D: 12+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-25-1500-K-CA2-B	25	27.5	1500	φ12 × 10 mm	B	D: 12+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-25-1500-K-CA2-C	25	27.5	1500	φ12 × 10 mm	C	D: 12+/-0.5 mm; H: 10+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-25-2400-K-CA3-A	25	27.5	2400	φ12 × 12 mm	A	D: 12+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-25-2400-K-CA3-B	25	27.5	2400	φ12 × 12 mm	B	D: 12+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-25-2400-K-CA3-C	25	27.5	2400	φ12 × 12 mm	C	D: 12+/-0.5 mm; H: 12+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 4+/-0.38 mm
CAK36C-25-2500-K-CB1-A	25	27.5	2500	φ16 × 8 mm	A	D: 16+/-0.5 mm; H: 8+/-0.5 mm L1: 7+/-0.5 mm; L2: 5.84+/-0.76 mm D1: 5.08+/-0.38 mm
