RF High pass Passive Filter 9.0GHz to 18GHz Cavity High pass Filter rejection ≥ 40dB DC~8.40GHz with SMA Female Connector

RF High pass Passive Filter 9.0GHz to 18GHz Cavity High pass Filter rejection ≥ 40dB DC~8.40GHz with SMA Female Connector

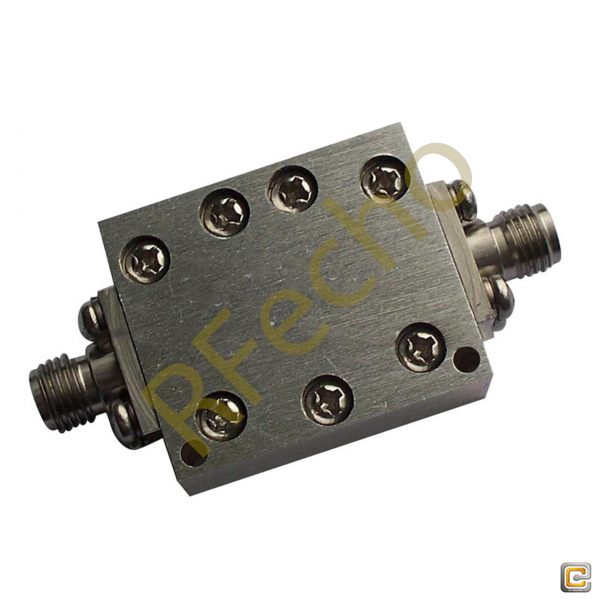

RF High Pass Passive Filter model OHP: 9000-18000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This RF High Pass Passive Filter Manufactured with a passband frequency from 9.0GHz to 18GHz and a Cut-off frequency 8.4GHz. Our Cavity High Pass Filter provides a nominal insertion loss of 2.0dB across its passband and a typical rejection of ≥40dB @DC- 8.40GHz. Since the high end cutoff frequency of RF High Pass Passive Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity High Pass Filter has Passband VSWR of ≤2.0:1 and power handling of ≤5W. RF High Pass Passive Filter is manufactured with SMA Female Connector and Impendence of 50ohms.
9.0GHz to 18GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 9.0GHz to 18GHz RF High Pass Passive Filter is ready for shipping worldwide after purchase. Additional specs of this Cavity High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-9000-18000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Filter (OHP) – OHP-9000-18000:

  • Cut Off Frequency: 8.4GHz,
  • Pass Band Frequency: 9-18GHz,
  • Pass Band Insertion Loss: 2.0dB,
  • Pass Band VSWR: 2.0,
  • Rejection: ≥40 dB @ DC-8.4 GHz.

Outline

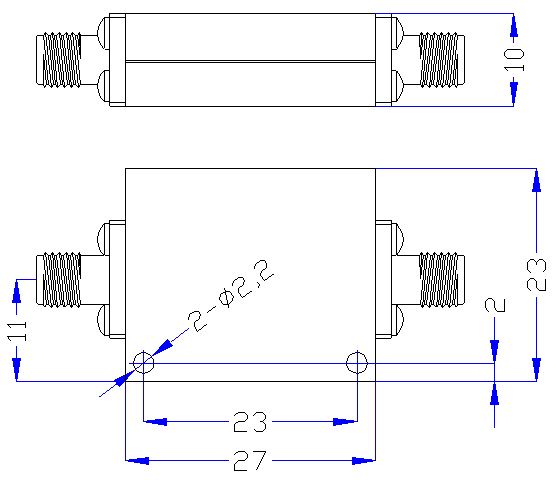

9.0 GHz to 18 GHz Rejection ≥40 dB @ DC-8.4 GHz High Pass Cavity Filter 01

Plot

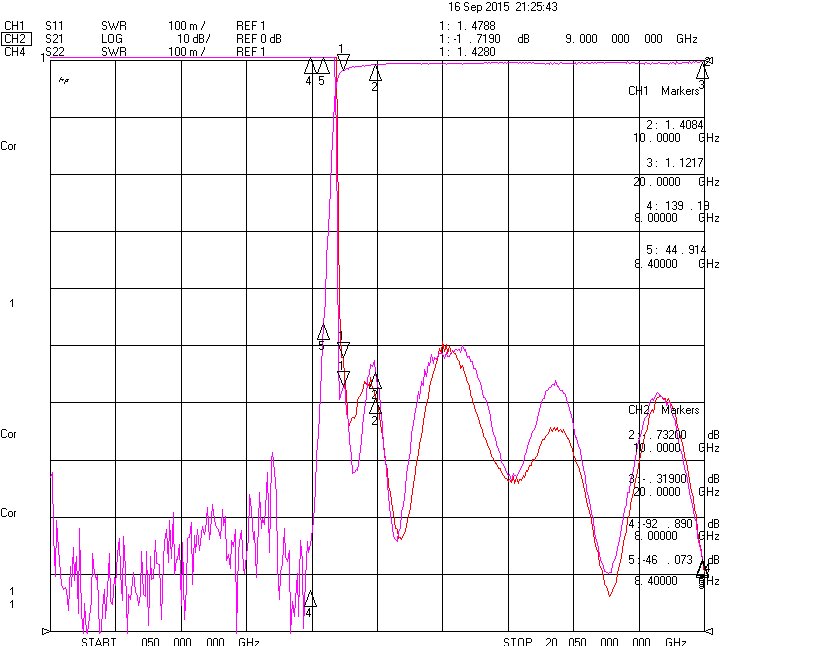

9.0 GHz to 18 GHz Rejection ≥40 dB @ DC-8.4 GHz High Pass Cavity Filter 02

PDF

Additional information

Min. Pass Band Frequency (GHz)

9.0

Max. Pass Band Frequency (GHz)

18

Connection Type

SMA-Female

Power Handling (W)

5

Insertion Loss

≤2.0dB

VSWR

≤2.0:1

Rejection

≥40 dB @ DC-8.4 GHz

Impedance (Ω)

50

Surface Finish

Guide Oxygen or Black Paint
