Absorptive Coaxial SP2T Switch from 0.02GHz to 18GHz .OSA0200021800B

HOT

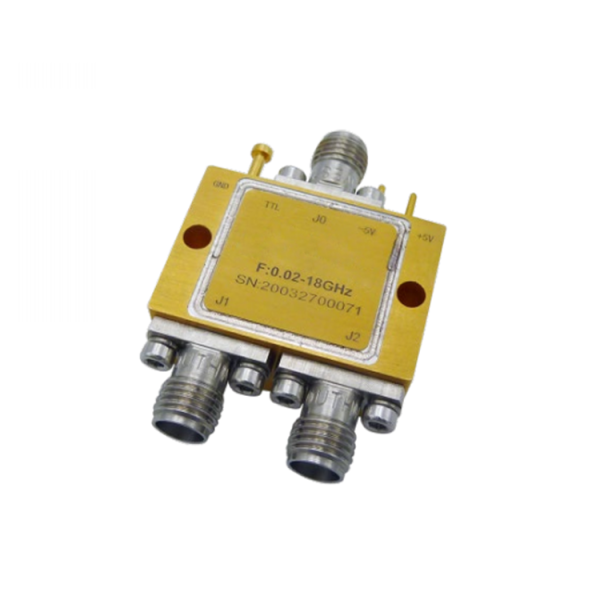

Absorptive Coaxial SP2T Switch from 0.02GHz to 18GHz .OSA0200021800B

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.02GHz to 18GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0200021800B Categories: Active Device, Routing, SP2T, Switch

Description



PDF

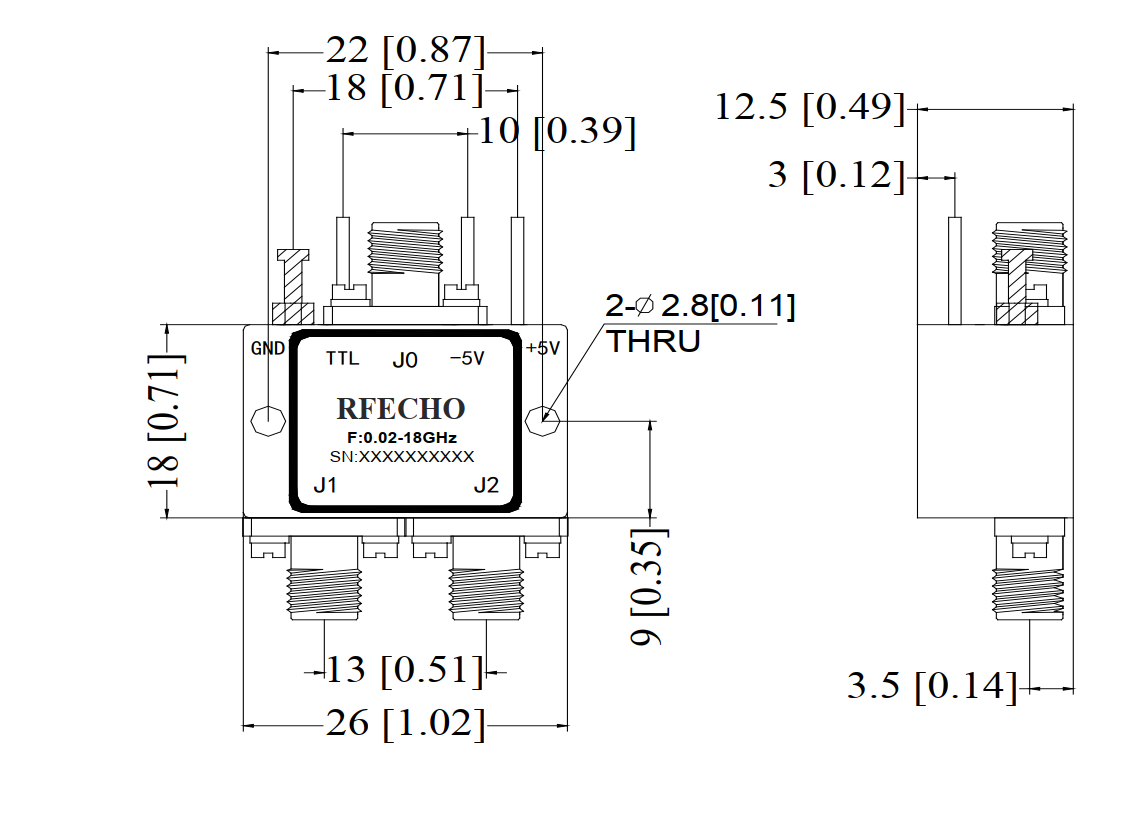

Outline

text





Additional information

Min. Frequency (GHz)

0.02

Max. Frequency (GHz)

18

VSWR (Max.)

1.8

Switch Type

SP2T

RF Input Power (W)

1

Insertion Loss (dB)

4.5
