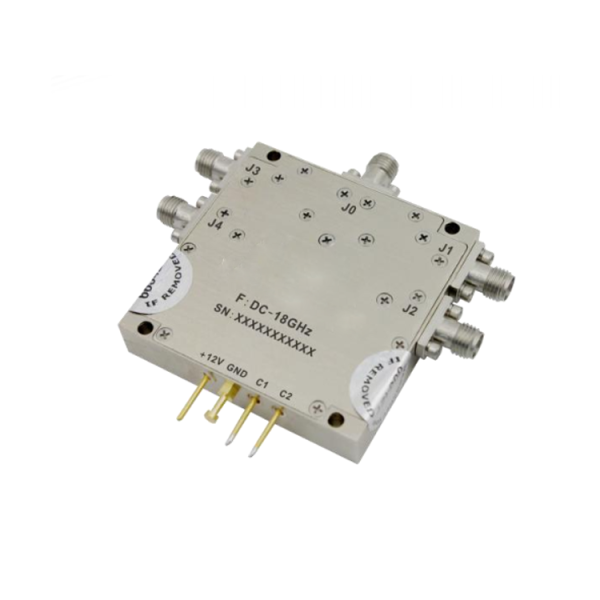

Absorptive Coaxial SP4T Switch DC – 18GHz .OSR0400001800A

HOT

Absorptive Coaxial SP4T Switch DC – 18GHz .OSR0400001800A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range is DC-18GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0400001800A Categories: Active Device, SP4T, Switch

Description



PDF

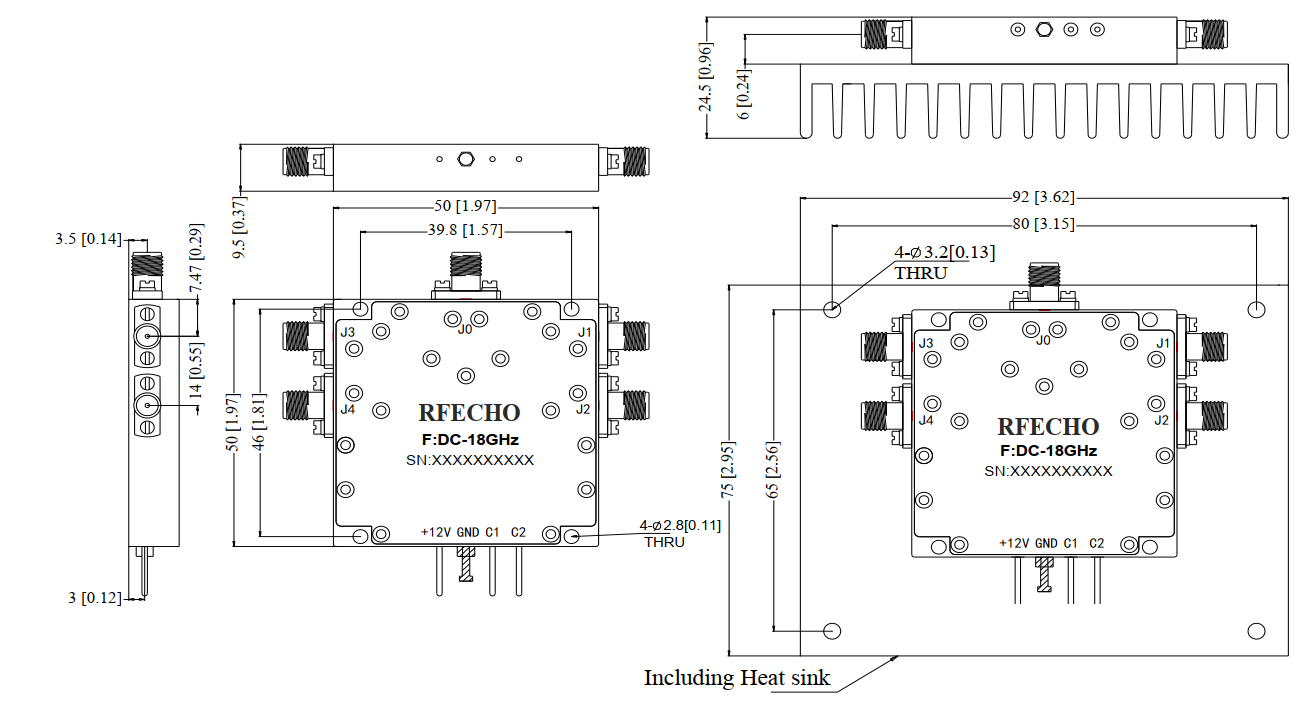

Outline

text









Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

18

VSWR (Max.)

2

Switch Type

SP4T

RF Input Power (W)

10

Insertion Loss (dB)

4
