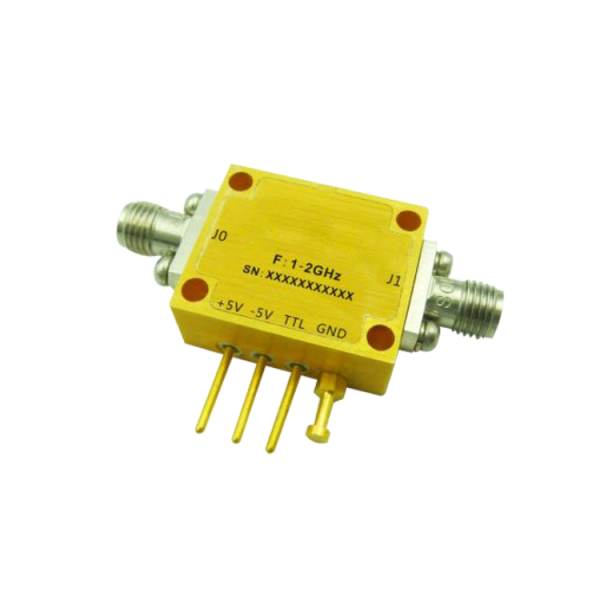

Absorptive Coaxial SPST Switch from 1GHz to 2GHz .OSA0101000200A

HOT

Absorptive Coaxial SPST Switch from 1GHz to 2GHz .OSA0101000200A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 1GHz to 2GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0101000200A Categories: Routing, SPST, Switch

Description



PDF

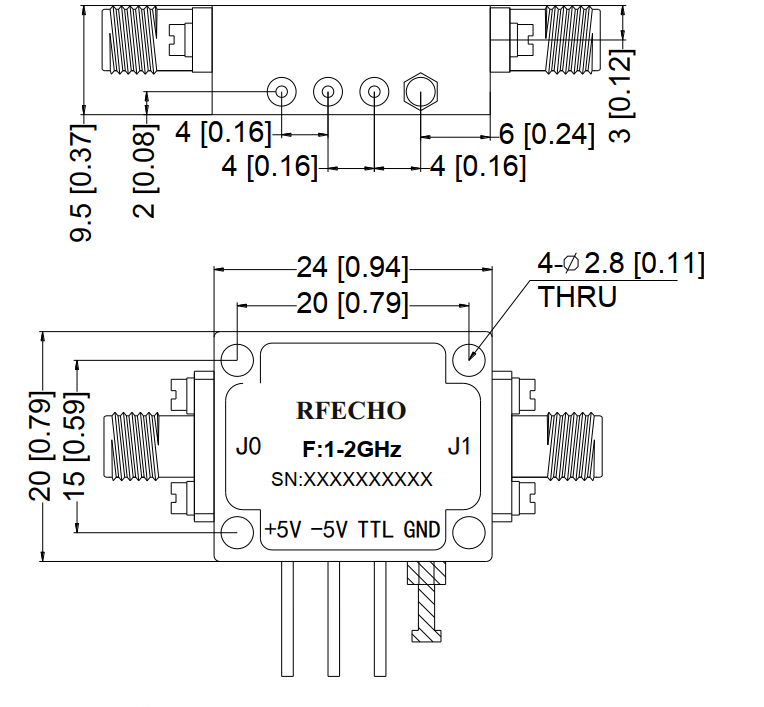

Outline



text





Additional information

Min. Frequency (GHz)

1

Max. Frequency (GHz)

2

VSWR (Max.)

1.3

Switch Type

SPST

RF Input Power (W)

1

Insertion Loss (dB)

1
