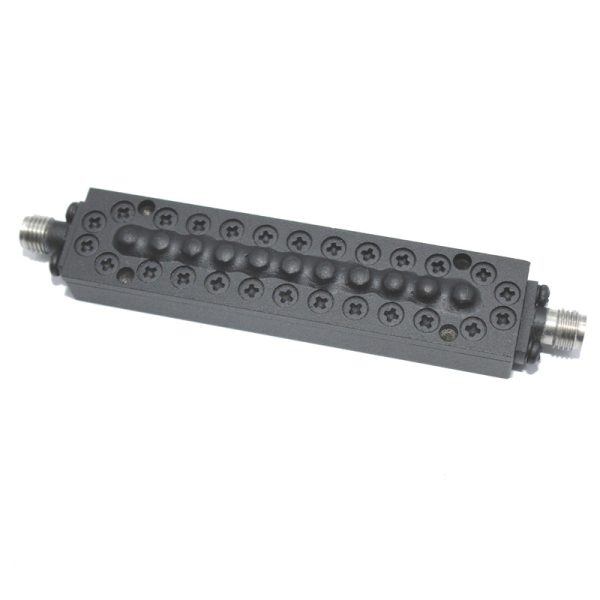

Band Pass Filter From 1.6GHz (21.2~22.8GHz) OBP-22000-1600 With 2.92mm(K)-Female Connectors

Band Pass Filter From 1.6GHz (21.2~22.8GHz) OBP-22000-1600 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22000-1600, its Center Frequency(F0) is 22GHz, its Pass Band Bandwidth is 1.6GHz (21.2~22.8GHz) ,its Pass Band Insertion Loss is ≤1.5dB@21.5~22.5GHz, PassBandVSWR is≤1.3:1@21.5~22.5GHz ,and the Stop Band frequency is ≥70dB @0~18GHz≥20dB @18~21GHz ≥70dB @24~40GHz.

Availability: Available on backorder SKU: OBP-22000-1600 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22000-1600, its Center Frequency(F0) is 22GHz, its Pass Band Bandwidth is 1.6GHz (21.2~22.8GHz) ,its Pass Band Insertion Loss is ≤1.5dB@21.5~22.5GHz, PassBandVSWR is≤1.3:1@21.5~22.5GHz ,and the Stop Band frequency is ≥70dB @0~18GHz≥20dB @18~21GHz ≥70dB @24~40GHz.

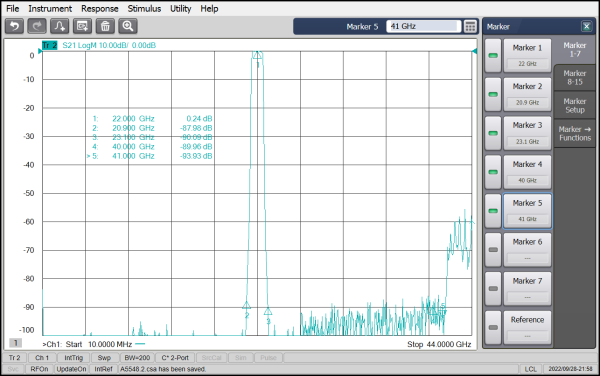

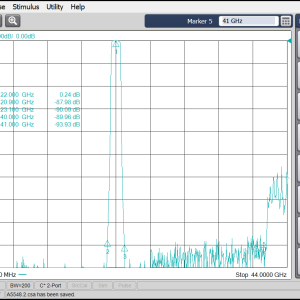

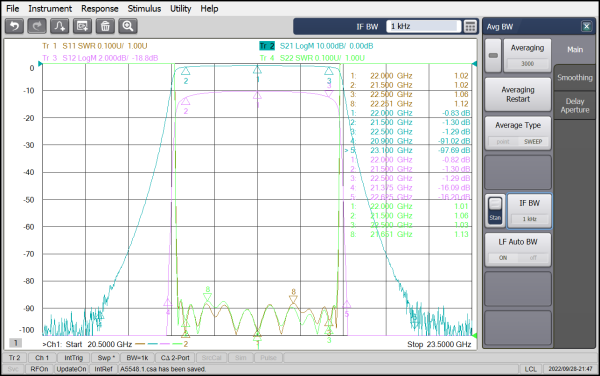

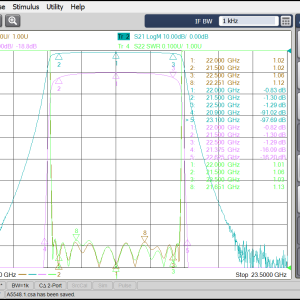

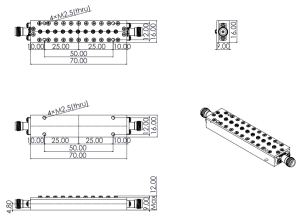

Outline

Band Pass Filter From 1.6GHz (21.2~22.8GHz) OBP-22000-1600 With 2.92mm(K)-Female Connectors

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

22000

Min. Pass Band Frequency (MHz)

21200

Max. Pass Band Frequency (MHz)

22800

Pass Band Insertion Loss (dB)

≤1.5dB ≤0.35dB

Stop Band Rejection

≥70dB @ 0 ~ 18GHz ≥20dB @ 18 ~ 21GHz ≥70dB @ 24 ~ 40GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
