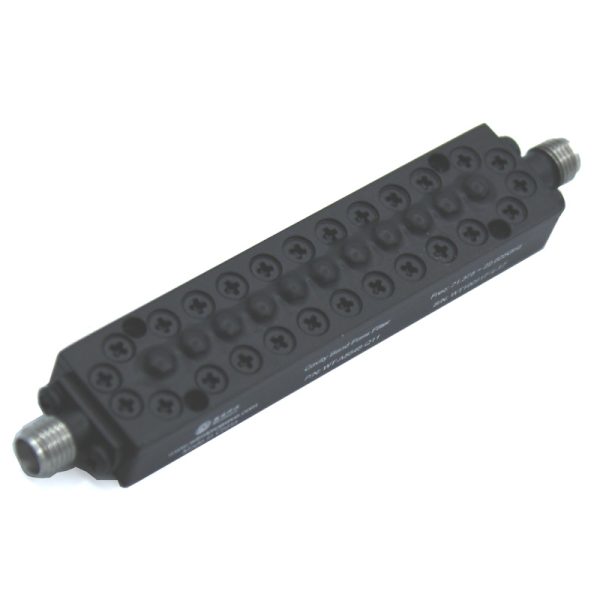

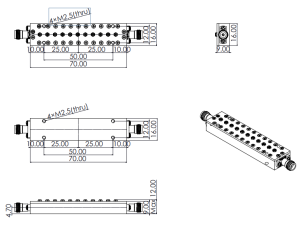

Band Pass Filter From 1.25GHzMax.(21.375~22.625GHzMax.) OBP-22000-1250 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22000-1250, its Center Frequency(F0) is 22GHz, its Pass Band Bandwidth is 1.25GHzMax.(21.375~22.625GHzMax.) ,its Pass Band Insertion Loss is ≤2.0dB, PassBand VSWR is≤1.3:1 ,and the Stop Band frequency is ≥70dB@F0±1.1GHz (DC~20.9GHz, 23.1~40GHz).

Availability: Available on backorder SKU: OBP-22000-1250 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22000-1250, its Center Frequency(F0) is 22GHz, its Pass Band Bandwidth is 1.25GHzMax.(21.375~22.625GHzMax.) ,its Pass Band Insertion Loss is ≤2.0dB, PassBand VSWR is≤1.3:1 ,and the Stop Band frequency is ≥70dB@F0±1.1GHz (DC~20.9GHz, 23.1~40GHz).

Band Pass Filter Datasheet (Click to download)

Additional information

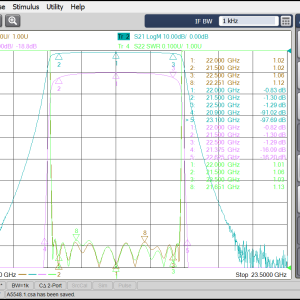

Center Frequency (F0) (MHz)

22000

Min. Pass Band Frequency (MHz)

21375

Max. Pass Band Frequency (MHz)

22625

Pass Band Insertion Loss (dB)

≤2.0dB ≤1.0dB

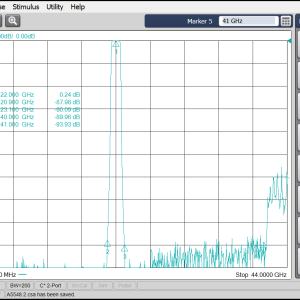

Stop Band Rejection

≥70dB @ F0±1.1GHz (DC ~ 20.9GHz , 23.1 ~ 40GHz)

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

SMA-Female
