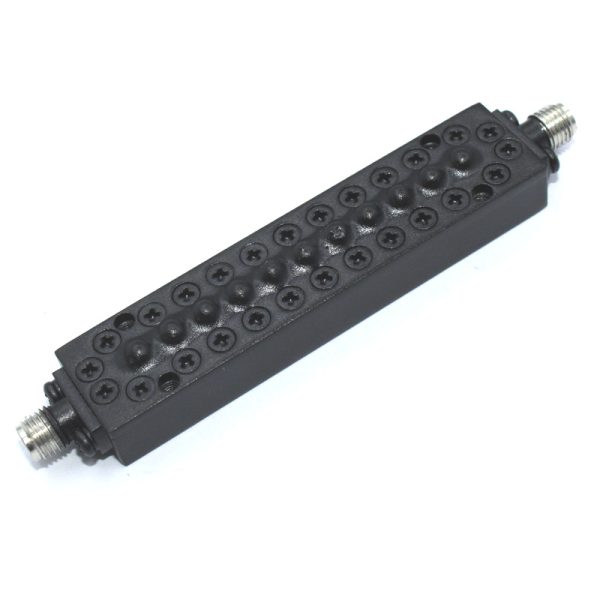

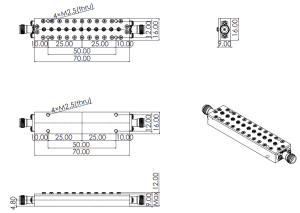

Band Pass Filter From 21.6~22.4GHz OBP-22000-800 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

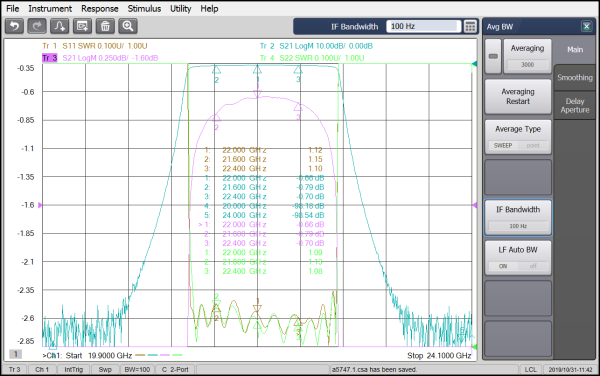

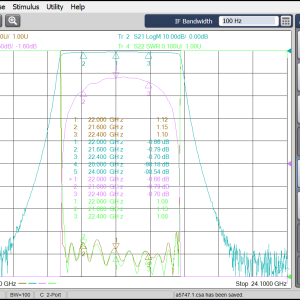

The product name of this Ocean band-pass filter (OBP) is OBP-22000-800, its Center Frequency(F0) is 22GHz, its Pass Band Bandwidth is 21.6~22.4GHz ,its Pass Band Insertion Loss is ≤1.5dB, Pass Band VSWR is ≤1.3:1 ,and the Stop Band frequency is ≥60dB @DC~20GHz ≥60dB @24~40GHz.

Availability: Available on backorder SKU: OBP-22000-800 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22000-800, its Center Frequency(F0) is 22GHz, its Pass Band Bandwidth is 21.6~22.4GHz ,its Pass Band Insertion Loss is ≤1.5dB, Pass Band VSWR is ≤1.3:1 ,and the Stop Band frequency is ≥60dB @DC~20GHz ≥60dB @24~40GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

22000

Min. Pass Band Frequency (MHz)

21600

Max. Pass Band Frequency (MHz)

22400

Pass Band Insertion Loss (dB)

≤1.5dB ≤0.5dB

Stop Band Rejection

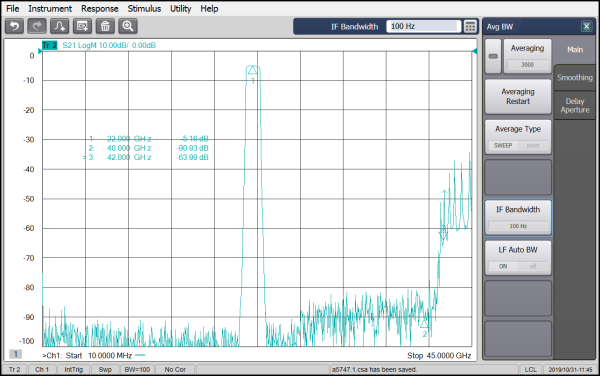

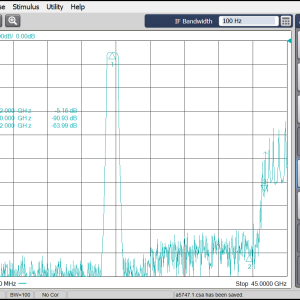

≥60dB @ DC ~ 20GHz ≥60dB @ 24 ~ 40GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

SMA-Female
