Band Pass Filter From 100MHz (22.95~23.05GHz) With 2.92mm(K)-Female Connectors OBP-23000-100

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-23000-100, its Center Frequency(F0) is 23GHz, its Pass Band Bandwidth is 100MHz (22.95~23.05GHz) ,its Pass Band Insertion Loss is ≤4.0dB, Pass Band VSWR is ≤1.3:1, and the Stop Band frequency is ≥40dB@DC~22.8GHz≥40dB@23.2~30GHz.

Availability: Available on backorder SKU: OBP-23000-100 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

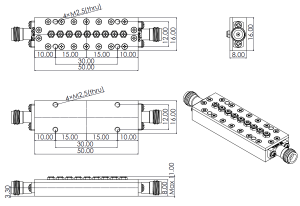

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-23000-100, its Center Frequency(F0) is 23GHz, its Pass Band Bandwidth is 100MHz (22.95~23.05GHz) ,its Pass Band Insertion Loss is ≤4.0dB, Pass Band VSWR is ≤1.3:1, and the Stop Band frequency is ≥40dB@DC~22.8GHz≥40dB@23.2~30GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

23000

Min. Pass Band Frequency (MHz)

22950

Max. Pass Band Frequency (MHz)

23050

Pass Band Insertion Loss (dB)

≤4.0dB

Stop Band Rejection

≥40dB @ DC~22.8GHz ≥40dB @ 23.2~30GHz

Impedance (Ω)

50

Power Handling (W)

≤5W

Connection Type

SMA-Female
