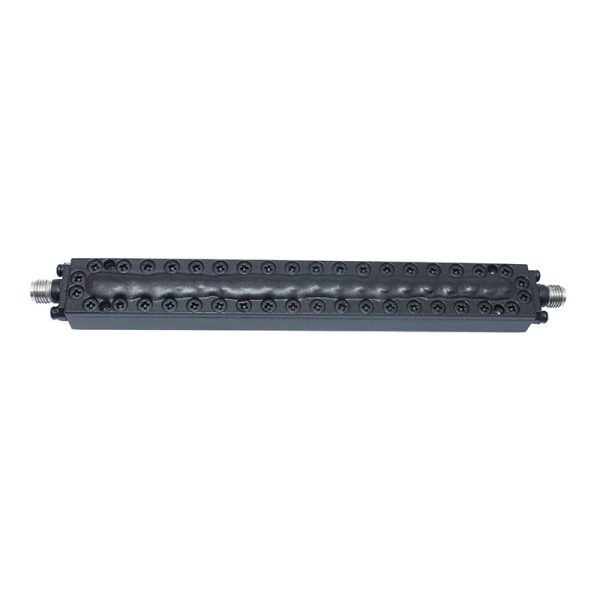

Band pass Filter From 16 ~ 20.1GHz OBP-18050-4100 With SMA-Female Connectors

Band pass Filter From 16 ~ 20.1GHz OBP-18050-4100 With SMA-Female Connectors

0 out of 5

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-18050-4100,its Center Frequency(F0) is 18.05GHz, its Pass BandBandwidth is 16 ~ 20.1GHz its Pass Band Insertion Loss is≤1.1dB, and its PassBand VSWR is≤1.3:1. Its Stop Band frequency is≥45dB @ DC ~ 15.65GHz≥10dB @ 15.65 ~ 15.85GHz≥10dB @ 20.25 ~ 20.45GHz≥45dB @ 20.45 ~ 34.5GHz.

SKU: OBP-18050-4100 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

SPEC

Cavity bandpass filter

Band pass Filter From 16 ~ 20.1GHz OBP-18050-4100 With SMA-Female Connectors

OBP-18050-4100

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-18050-4100,its Center Frequency(F0) is 18.05GHz, its Pass BandBandwidth is 16 ~ 20.1GHz its Pass Band Insertion Loss is≤1.1dB, and its PassBand VSWR is≤1.3:1. Its Stop Band frequency is≥45dB @ DC ~ 15.65GHz≥10dB @ 15.65 ~ 15.85GHz≥10dB @ 20.25 ~ 20.45GHz≥45dB @ 20.45 ~ 34.5GHz.

Property

Value

Center Frequency (F0) (MHz)

18050

Min. Pass Band Frequency (MHz)

16000

Max. Pass Band Frequency (MHz)

20100

Pass Band Insertion Loss (dB)

≤1.1

Stop Band Rejection

≥45dB @ DC ~ 15650MHz≥10dB @ 15650 ~ 15850MHz≥10dB @ 20250 ~ 20450MHz≥45dB @ 20450 ~ 34500MHz

Impedance (Ω)

50

Power Handling (W)

5.0W Max.

Connection Type

SMA-Female

Data Sheet

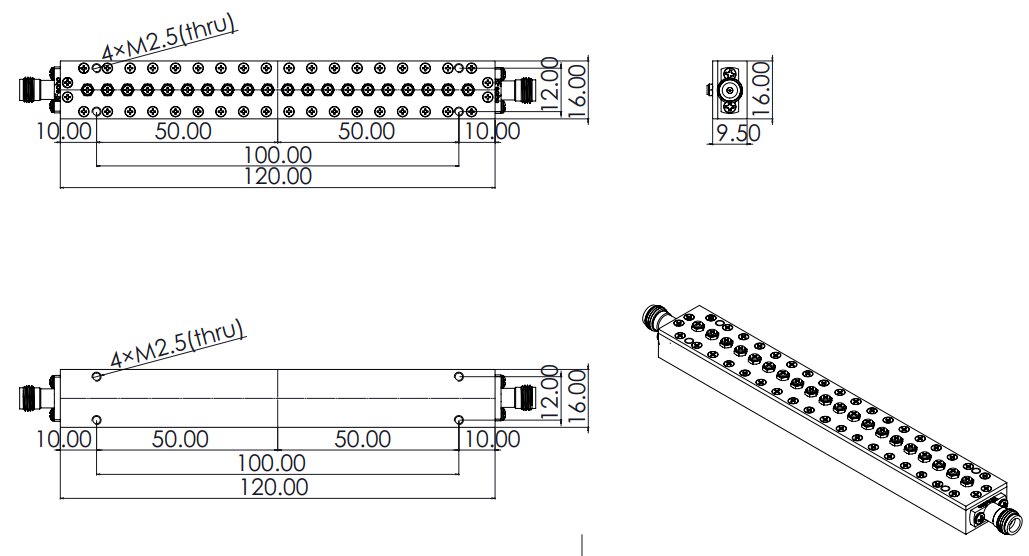

Outline

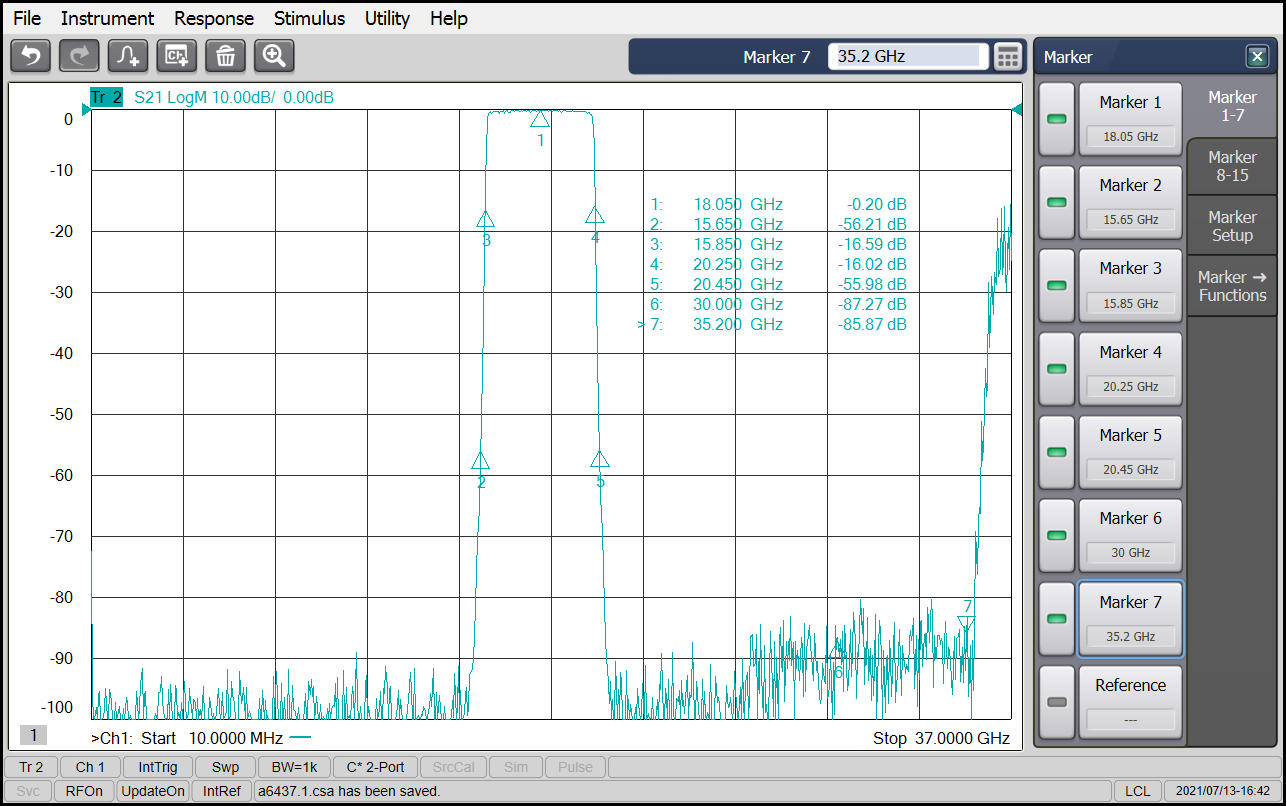

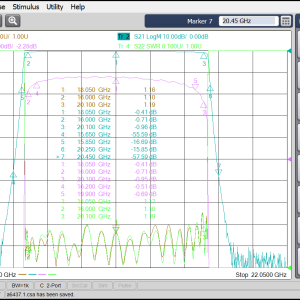

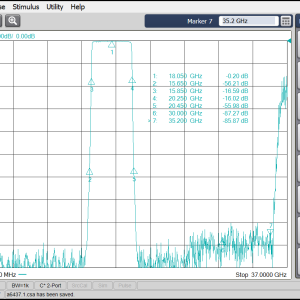

Plot

Additional information

Min. Pass Band Frequency (MHz)

16000

Max. Pass Band Frequency (MHz)

20100

Pass Band Insertion Loss (dB)

≤1.1

1

≥45dB @ DC ~ 15650MHz≥10dB @ 15650 ~ 15850MHz≥10dB @ 20250 ~ 20450MHz≥45dB @ 20450 ~ 34500MHz

Impedance (Ω)

50

Power Handling (W)

5.0W Max.

Connection Type

SMA-Female
