Bandpass Filter From 10.352GHz To 11.818GHz With SMA-Female Connectors OBP-11085-1466

SKU: OBP-11085-1466 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

SPEC

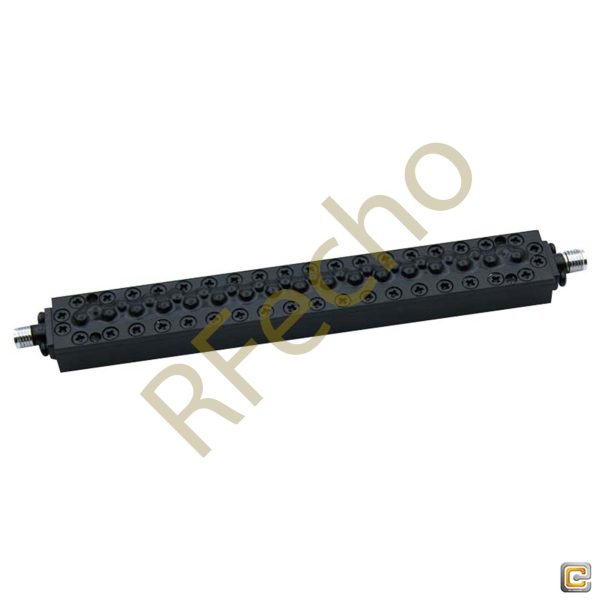

Cavity bandpass filter

Bandpass Filter From 10.352GHz To 11.818GHz With SMA-Female Connectors OBP-11085-1466

OBP-11085-1466

Cavity bandpass filter part number OBP-11085-1466 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 10.352GHz to 11.818GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.5:1 and a maximum power of 5 Watts. RFecho bandpass filter has a minimum passband frequency of 0.01 GHz and a maximum passband frequency of 40 GHz. Cavity RF band-pass filter part number OBP-11085-1466 has an insertion loss maximum that is 3.5 dB. More coaxial SMA bandpass filter design specs for this radio frequency component can be found on its cavity RF bandpass filter PDF specifications datasheet. RFecho also stocks a large selection of other RF filter products that will ship the same day from our location. RF/microwave and millimeter wave bandpass cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.

Property

Value

Center Frequency (F0) (MHz)

11085

Min. Pass Band Frequency (MHz)

10352

Max. Pass Band Frequency (MHz)

11818

Pass Band Insertion Loss (dB)

≤3.5

Stop Band Rejection

≥30dB @ DC~10.252GHz ≥30dB @ 11.918~18GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

SMA-Female

Data Sheet

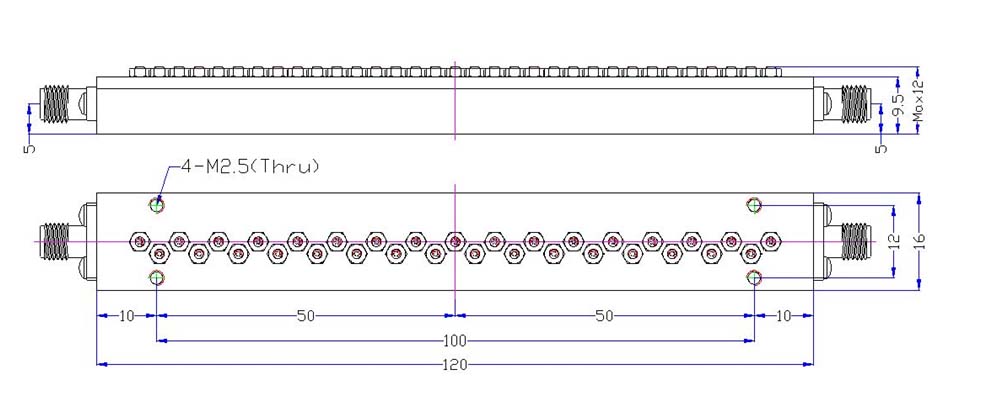

Outline

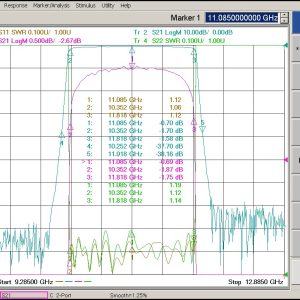

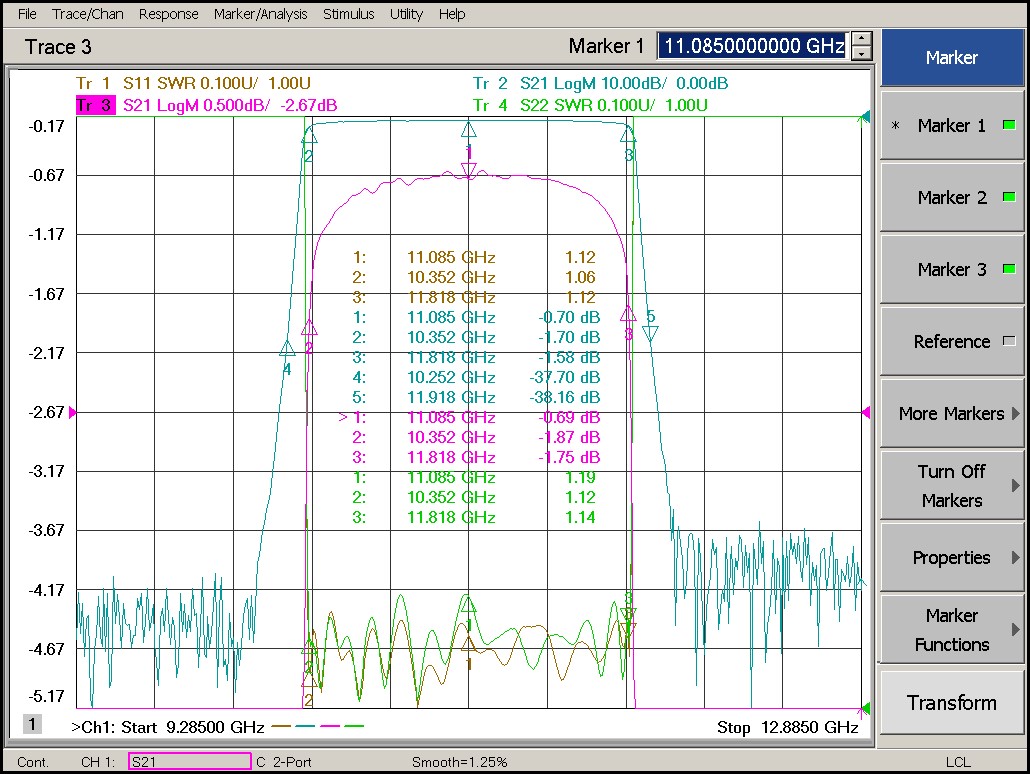

Plot

Additional information

Center Frequency (F0) (MHz)

11085

Min. Pass Band Frequency (MHz)

10352

Max. Pass Band Frequency (MHz)

11818

Pass Band Insertion Loss (dB)

≤3.5

1

≥30dB @ DC~10.252GHz ≥30dB @ 11.918~18GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

SMA-Female
