Band Pass Filter From 20.25~20.75GHz OBP-20500-500 With SMA-Female Connectors

Band Pass Filter From 17.2～23.76GHz OBP-20480-6560 With SMA-Female Connectors
Band Pass Filter From 1000MHz (20.2~21.2GHz) OBP-20700-1000 With SMA-Female Connectors
0 out of 5
( There are no reviews yet. )

$398

Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-20500-500, itsCenter Frequency(F0) is 20.5GHz, its Pass Band Bandwidth is 20.25~20.75GHz ,its Pass Band Insertion Loss is ≤1.5dB, PassBand VSWR is≤1.22:1, and the Stop Band frequency is ≥80dB @DC~19.5GHz ≥80dB@21.5~41GHz.

Availability: Available on backorder SKU: OBP-20500-500 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters
Add to Wishlist

Description

Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

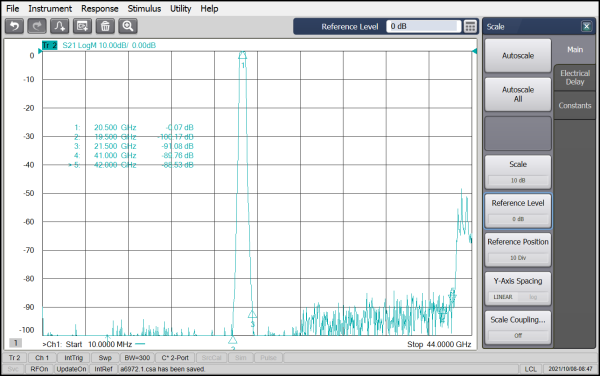

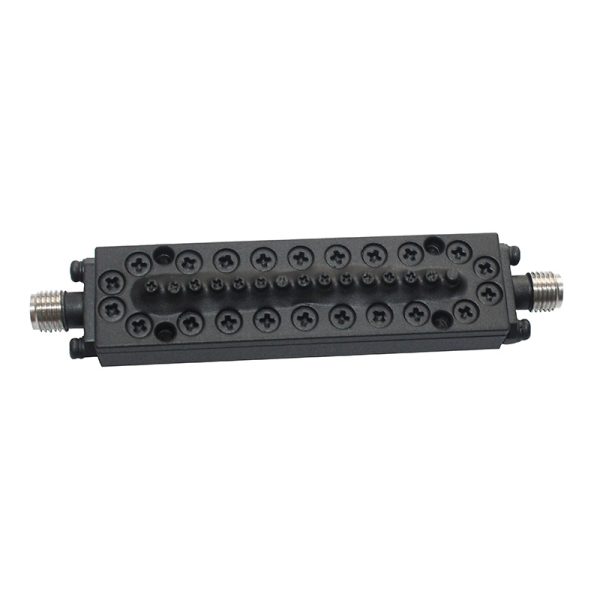

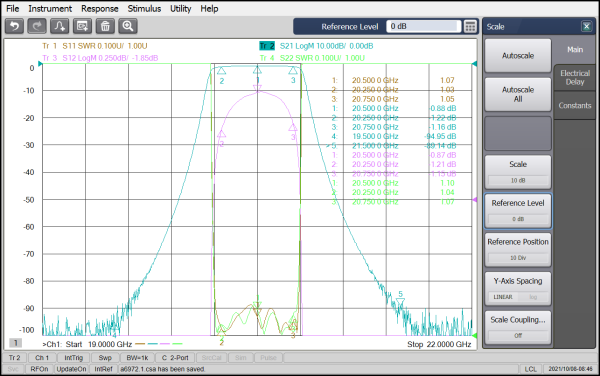

The product name of this Ocean band-pass filter (OBP) is OBP-20500-500, itsCenter Frequency(F0) is 20.5GHz, its Pass Band Bandwidth is 20.25~20.75GHz ,its Pass Band Insertion Loss is ≤1.5dB, PassBand VSWR is≤1.22:1, and the Stop Band frequency is ≥80dB @DC~19.5GHz ≥80dB@21.5~41GHz.

Band Pass Filter Datasheet (Click to download)

Reviews

There are no reviews yet.

Be the first to review “Band Pass Filter From 20.25~20.75GHz OBP-20500-500 With SMA-Female Connectors”
