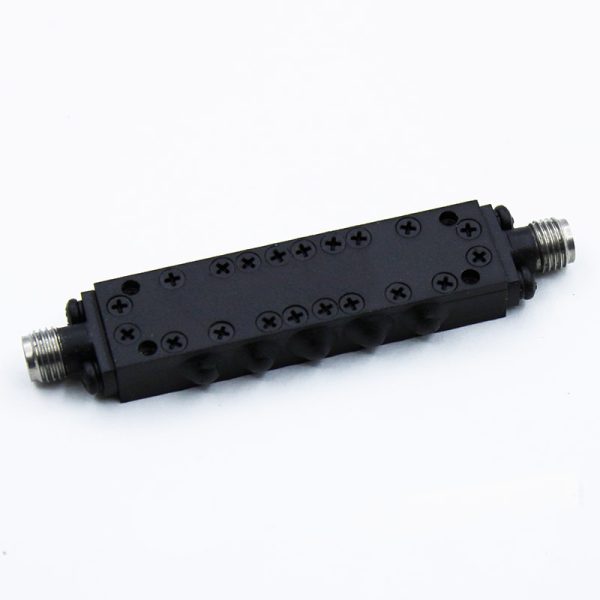

Band Pass Filter From 20~26GHz OBP-23000-6000 With SMA-Female Connectors

Band Pass Filter From 20~26GHz OBP-23000-6000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-23000-6000, its Center Frequency(F0) is 23GHz, its Pass Band Bandwidth is 20~26GHz ,its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is ≤1.7:1, and the Stop Band frequency is ≥55dB @13GHz≥55dB @30GHz.

Availability: Available on backorder SKU: OBP-23000-6000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-23000-6000, its Center Frequency(F0) is 23GHz, its Pass Band Bandwidth is 20~26GHz ,its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is ≤1.7:1, and the Stop Band frequency is ≥55dB @13GHz≥55dB @30GHz.

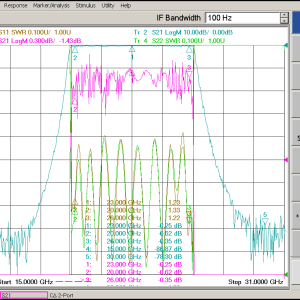

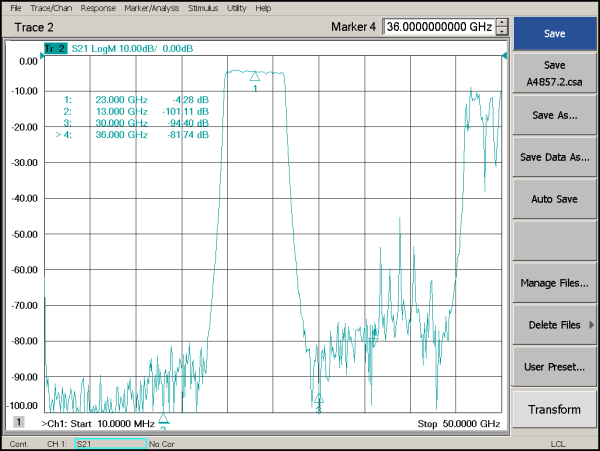

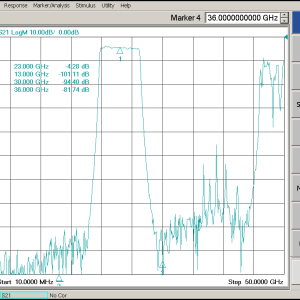

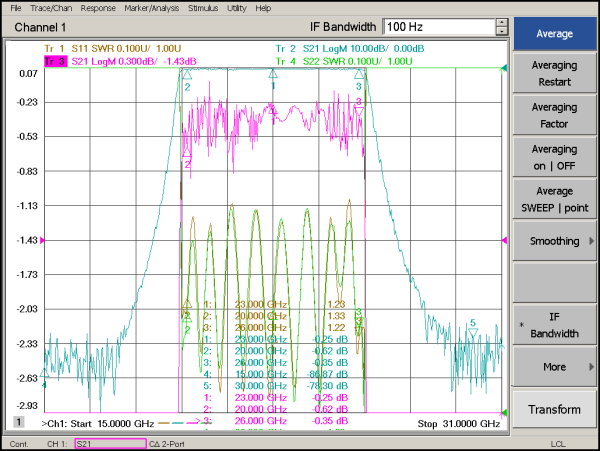

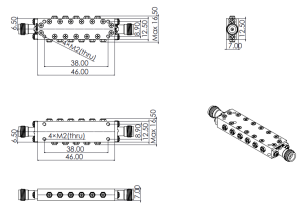

Outline

Band Pass Filter From  20~26GHz OBP-23000-6000 With SMA-Female Connectors

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

23000

Min. Pass Band Frequency (MHz)

20000

Max. Pass Band Frequency (MHz)

26000

Pass Band Insertion Loss (dB)

≤1.0dB

Stop Band Rejection

≥55dB @ 13GHz ≥55dB @ 30GHz

Impedance (Ω)

50

Power Handling (W)

≤2W

Connection Type

SMA-Female
