Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-345500-200, it’s Center Frequency(F0) is34.55GHz, it’s Pass Band Bandwidth is<200MHz(<34.45 ~ 34.65GHz), it’s Pass Band Insertion Loss is ≤3.0dB. Its Stop Band frequency is ≥50dB @ F0±500MHz (DC ~ 34.05GHz , 35.05 ~ 52GHz).



Availability: Available on backorder SKU: OBP-345500-200 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-345500-200, it’s Center Frequency(F0) is34.55GHz, it’s Pass Band Bandwidth is <200MHz(<34.45 ~ 34.65GHz), it’s Pass Band Insertion Loss is ≤3.0dB. Its Stop Band frequency is ≥50dB @ F0±500MHz (DC ~ 34.05GHz , 35.05 ~ 52GHz).

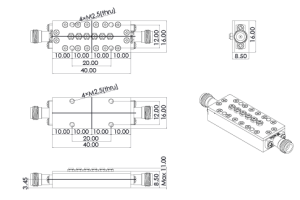

Outline

Band pass Filter From &lt;200MHz(&lt;34.45 ~ 34.65GHz) OBP-345500-200 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-345500-200

Additional information

Center Frequency (F0) (MHz)

34550

Min. Pass Band Frequency (MHz)

34450

Max. Pass Band Frequency (MHz)

34650

Pass Band Insertion Loss (dB)

≤3.0 ≤0.6 ≥18

Stop Band Rejection

≥50dB @ F0±500MHz (DC ~ 34.05GHz , 35.05 ~ 52GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm(K)-Female
