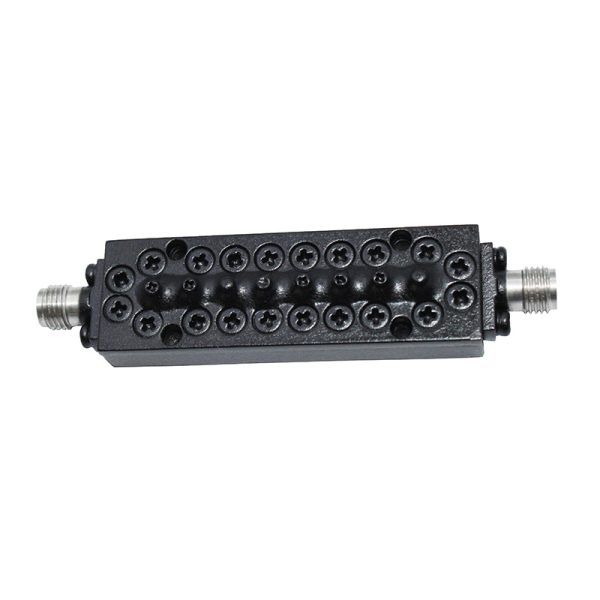

Band pass Filter From 1.0GHz (36.575 ~37.575GHz) OBP-370500-1000 With SMA-Female Connectors

Band pass Filter From 1.0GHz (36.575 ~37.575GHz) OBP-370500-1000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.

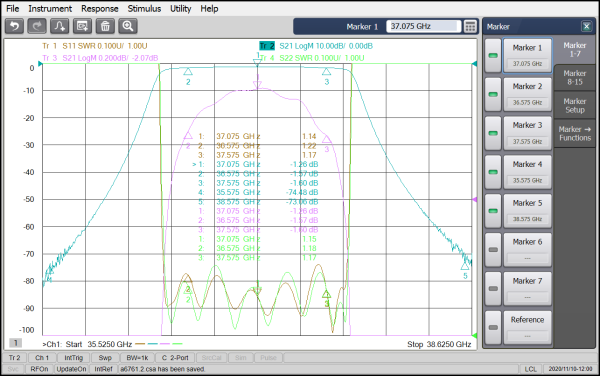

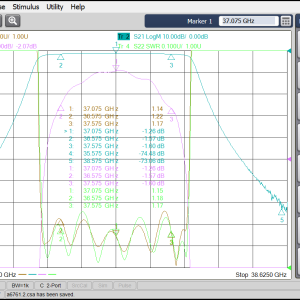

The product name of this Ocean band-pass filter (OBP) is OBP-370500-1000, it’s Center Frequency(F0) is37.075GHz, it’s Pass Band Bandwidth is 1.0GHz (36.575 ~37.575GHz), it’s PassBand Insertion Loss is≤1.8dB and its Pass Band VSWR is ≤1.3:1. Its Stop Band frequency is ≥65dB @ DC ~ 35.575GHz ≥65dB @ 38.575 ~60GHz.





Availability: Available on backorder SKU: OBP-370500-1000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-370500-1000, it’s Center Frequency(F0) is37.075GHz, it’s Pass Band Bandwidth is 1.0GHz (36.575 ~37.575GHz), it’s PassBand Insertion Loss is≤1.8dB and its Pass Band VSWR is ≤1.3:1. Its Stop Band frequency is ≥65dB @ DC ~ 35.575GHz ≥65dB @ 38.575 ~60GHz.

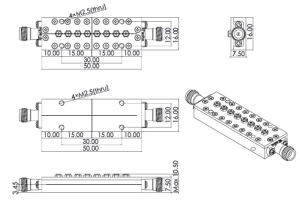

Outline

Band pass Filter From 1.0GHz (36.575 ~37.575GHz) OBP-370500-1000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-370500-1000

Additional information

Center Frequency (F0) (MHz)

37075

Min. Pass Band Frequency (MHz)

36575

Max. Pass Band Frequency (MHz)

37575

Pass Band Insertion Loss (dB)

≤1.8 ≤0.4dB

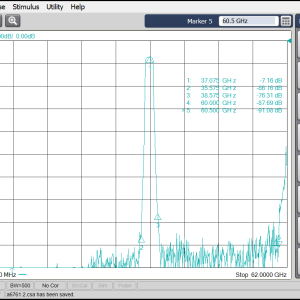

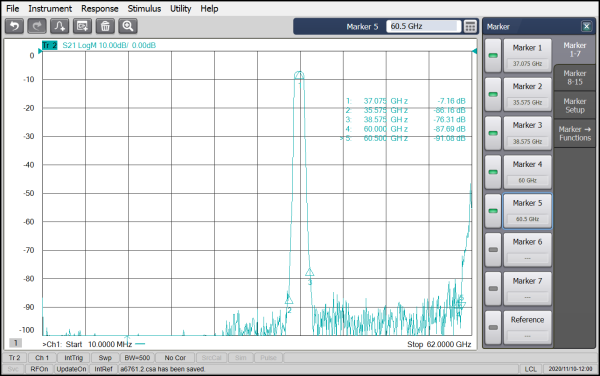

Stop Band Rejection

≥65dB @ DC ~ 35.575GHz ≥65dB @ 38.575 ~ 60GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm(K)-Female
