Band Pass Filter From 20~28.5GHz OBP-24250-8500 With 2.4mm-Female Connectors

Band Pass Filter From 20~28.5GHz OBP-24250-8500 With 2.4mm-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

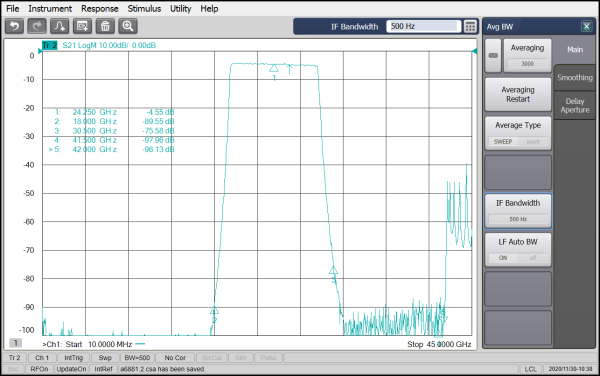

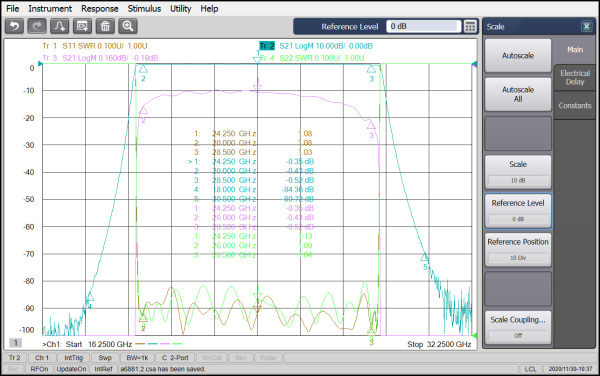

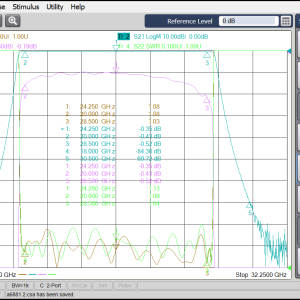

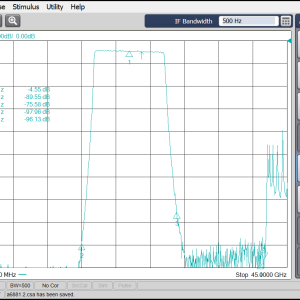

The product name of this Ocean band-pass filter (OBP) is OBP-24250-8500, its Center Frequency(F0) is 24.25GHz, it’s Pass Band Bandwidth is 20~28.5GHz ,its Pass Band Insertion Loss is ≤0.8dB, Pass Band VSWR is ≤1.33:1, and the Stop Band frequency is ≥75dB @DC~18GHz ≥60dB @30.5~41.5GHz.

Availability: Available on backorder SKU: OBP-24250-8500 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-24250-8500, its Center Frequency(F0) is 24.25GHz, it’s Pass Band Bandwidth is 20~28.5GHz ,its Pass Band Insertion Loss is ≤0.8dB, Pass Band VSWR is ≤1.33:1, and the Stop Band frequency is ≥75dB @DC~18GHz ≥60dB @30.5~41.5GHz.

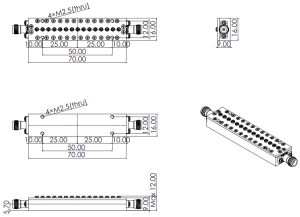

Outline

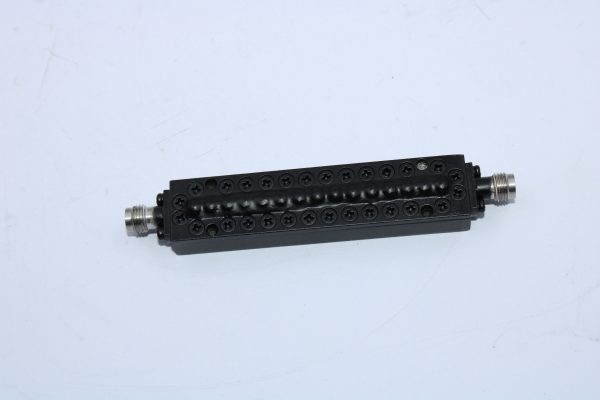

Band Pass Filter From  20~28.5GHz OBP-24250-8500 With 2.4mm-Female Connectors

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

24250

Min. Pass Band Frequency (MHz)

20000

Max. Pass Band Frequency (MHz)

24650, 28500

Pass Band Insertion Loss (dB)

≤0.8dB ≤0.3dB

Stop Band Rejection

≥75dB @ DC ~ 18GHz ≥60dB @ 30.5 ~ 41.5GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.4mm-Female
