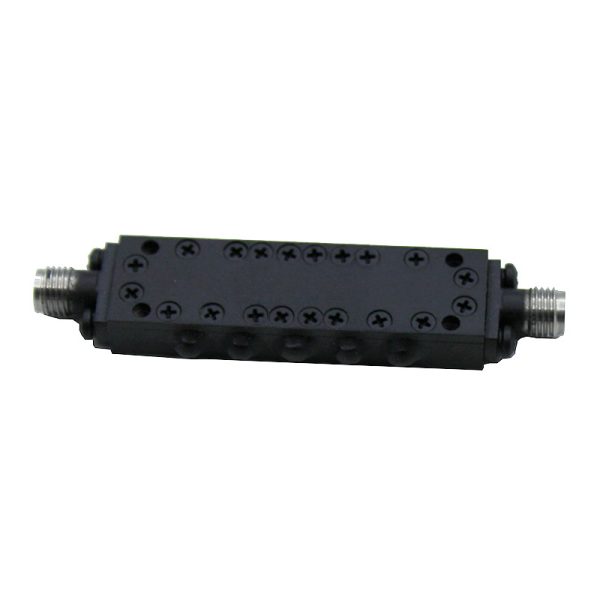

Band pass Filter From 25~32GHz OBP-285000-7000 With SMA-Female Connectors

Band pass Filter From 25~32GHz OBP-285000-7000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-285000-7000,its Center Frequency(F0) is 28.5GHz, its Pass Band Bandwidth is 25~32GHz, its Pass Band Insertion Loss is≤1.0dB,PassBandVSWR≤1.7:1and the Stop Bandfrequency is≥55dB @16GHz≥55dB @37.5GHz

Availability: Available on backorder SKU: OBP-285000-7000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-285000-7000,its Center Frequency(F0) is 28.5GHz, its Pass Band Bandwidth is 25~32GHz, its Pass Band Insertion Loss is≤1.0dB,PassBandVSWR≤1.7:1and the Stop Bandfrequency is≥55dB @16GHz≥55dB @37.5GHz

Outline

Band pass Filter From 25~32GHz OBP-285000-7000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-285000-7000

Additional information

Center Frequency (F0) (MHz)

28500

Min. Pass Band Frequency (MHz)

25000

Max. Pass Band Frequency (MHz)

32000

Pass Band Insertion Loss (dB)

≤1.0

Stop Band Rejection

≥55dB @ 16GHz≥55dB @ 37.5GHz

Impedance (Ω)

50

Power Handling (W)

≤2

Connection Type

2.92mm-Female
