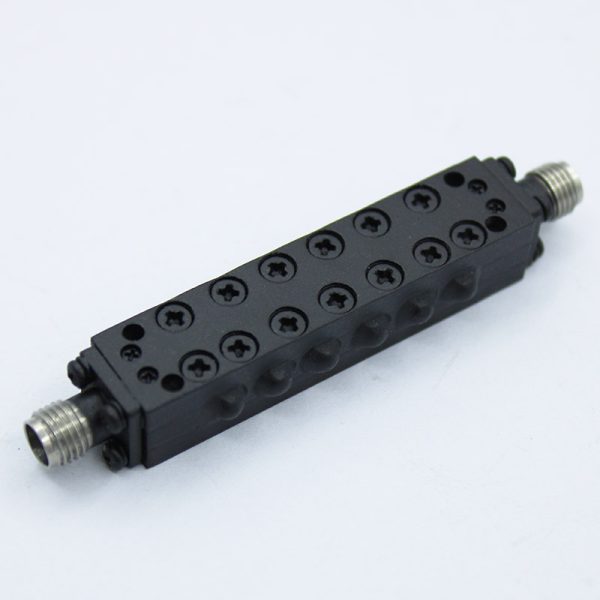

Band pass Filter From 26~31.5GHz OBP-287500-5500 With SMA-Female Connectors

Band pass Filter From 26~31.5GHz OBP-287500-5500 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.

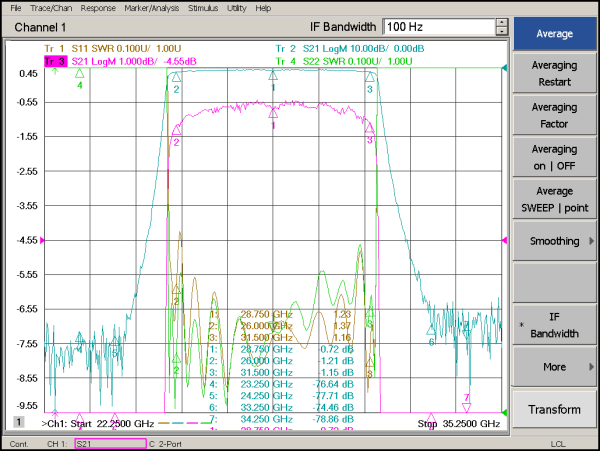

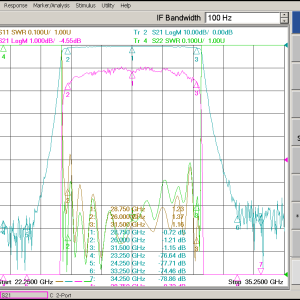

The product name of this Ocean band-pass filter (OBP) is OBP-287500-5500,itsCenter Frequency(F0) is 28.75GHz , its Pass Band Bandwidth is 26~31.5GHz, itsPass Band Insertion Loss is ≤2.5dB, and it’s PassBandVSWR is ≤2.0:1. Its Stop Band frequency is ≥45dB @ 24.25GHz≥45dB @ 33.25GHz≥70dB @ 23.25GHz≥70dB @34.25GHz.

Availability: Available on backorder SKU: OBP-287500-5500 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-287500-5500,itsCenter Frequency(F0) is 28.75GHz , its Pass Band Bandwidth is 26~31.5GHz, itsPass Band Insertion Loss is ≤2.5dB, and it’s PassBandVSWR is ≤2.0:1. Its Stop Band frequency is ≥45dB @ 24.25GHz≥45dB @ 33.25GHz≥70dB @ 23.25GHz≥70dB @34.25GHz.

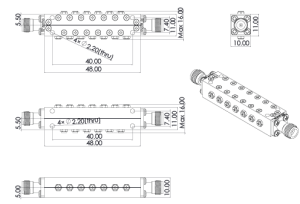

Outline

Band pass Filter From 26~31.5GHz OBP-287500-5500 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-287500-5500

Additional information

Center Frequency (F0) (MHz)

28750

Min. Pass Band Frequency (MHz)

26000

Max. Pass Band Frequency (MHz)

31500

Pass Band Insertion Loss (dB)

≤2.5

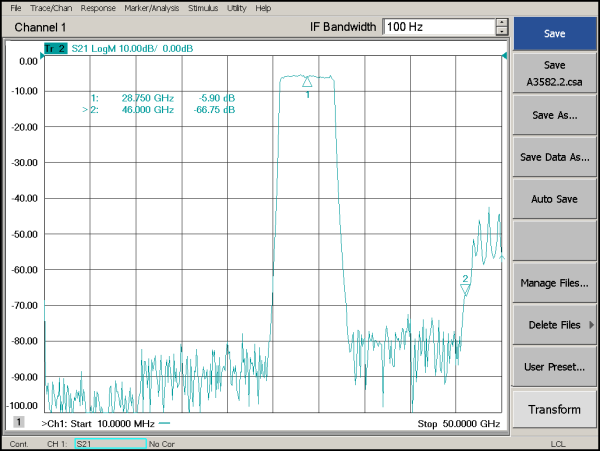

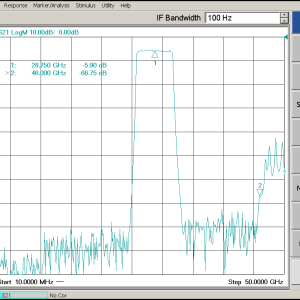

Stop Band Rejection

≥45dB @ 24.25GHz≥45dB @ 33.25GHz≥70dB @ 23.25GHz≥70dB @ 34.25GHz

Impedance (Ω)

50

Power Handling (W)

≤10

Connection Type

2.92mm-Female
