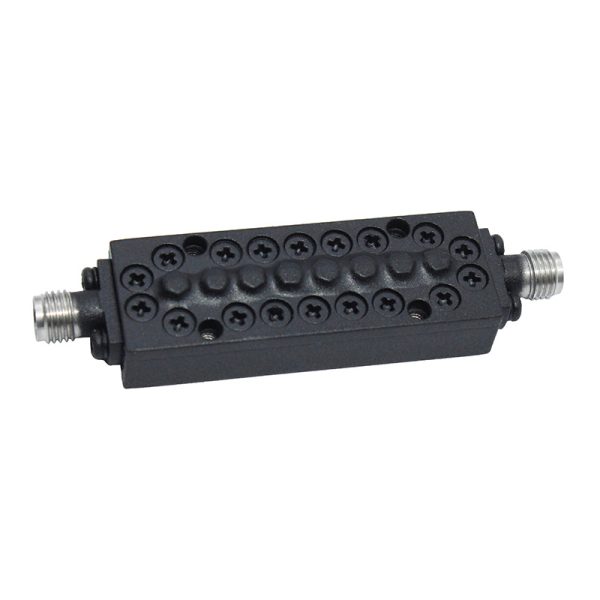

Band pass Filter From 26.5~29.5GHz OBP-280000-3000 With SMA-Female Connectors

Band pass Filter From 26.5~29.5GHz OBP-280000-3000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

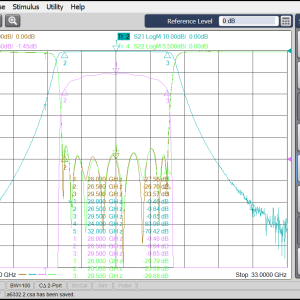

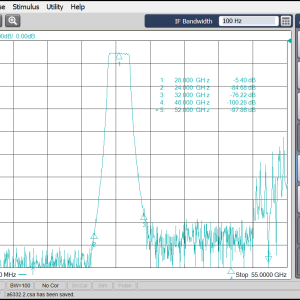

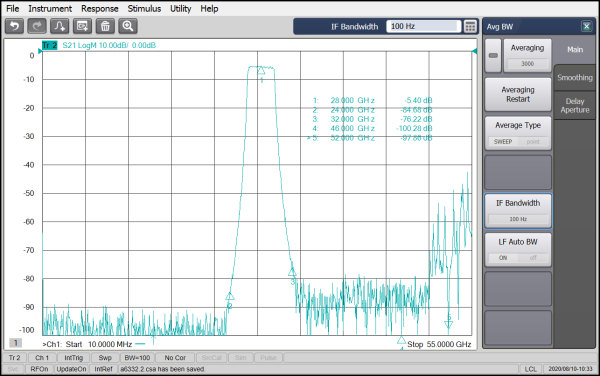

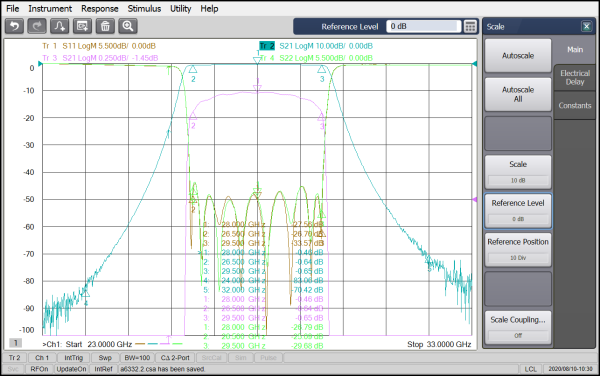

The product name of this Ocean band-pass filter (OBP) is OBP-280000-3000,its Center Frequency(F0) is 28GHz, its Pass Band Bandwidth is  26.5~29.5GHz, its Pass Band Insertion Loss is≤0.9dB, and the Stop Band frequency is≥75dB @ DC ~ 24GHz ≥65dB @ 32 ~ 48GHz.

Availability: Available on backorder SKU: OBP-280000-3000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-280000-3000,its Center Frequency(F0) is 28GHz, its Pass Band Bandwidth is  26.5~29.5GHz, its Pass Band Insertion Loss is≤0.9dB, and the Stop Band frequency is≥75dB @ DC ~ 24GHz ≥65dB @ 32 ~ 48GHz.

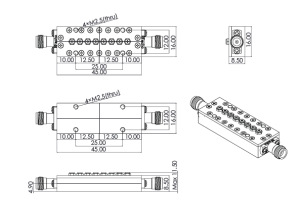

Outline

Band pass Filter From 26.5~29.5GHz OBP-280000-3000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-280000-3000

Additional information

Center Frequency (F0) (MHz)

28000

Min. Pass Band Frequency (MHz)

26500

Max. Pass Band Frequency (MHz)

29500

Pass Band Insertion Loss (dB)

≤0.9 ≤0.35 ≥18

Impedance (Ω)

50

Power Handling (W)

5.0W Max

Connection Type

2.92mm(K)-Female

Reviews

There are no reviews yet.


Be the first to review “Band pass Filter From 26.5~29.5GHz OBP-280000-3000 With SMA-Female Connectors”
