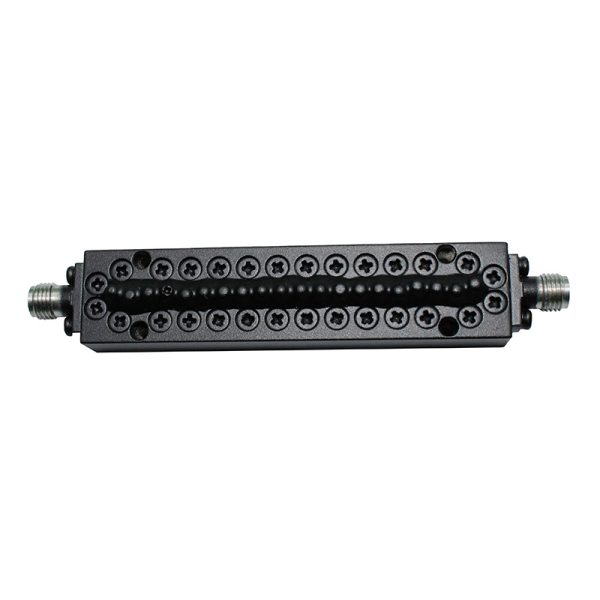

Band Pass Filter From 26~40GHz OBP-33000-14000 With 2.92mm(K)-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation：abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-33000-14000, it’s Center Frequency (FO) is 33GHz, it’s Pass Band Bandwidth is 26~40GHz, it’s Pass Band Insertion Loss is ≤1.2dB, Pass Band Return Loss is ≥17dB, Pass Band VSWR is, and the Stop Band frequency is≥80dB@DC ~24000MHz ≥45dB@24000 ~25000MHz ≥35dB@41000~42300MHz. ≥80dB@42300~43000MH ≥40dB@43000 ~47000MHz.
- Description
- Additional information
- Reviews (0)
Description
Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation：abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-33000-14000, it’s Center Frequency (FO) is 33GHz, it’s Pass Band Bandwidth is 26~40GHz, it’s Pass Band Insertion Loss is ≤1.2dB, Pass Band Return Loss is ≥17dB, Pass Band VSWR is, and the Stop Band frequency is≥80dB@DC~24000MHz ≥45dB@24000 ~25000MHz ≥35dB@41000~42300MHz.≥80dB@42300~43000MH ≥40dB@43000 ~47000MHz.

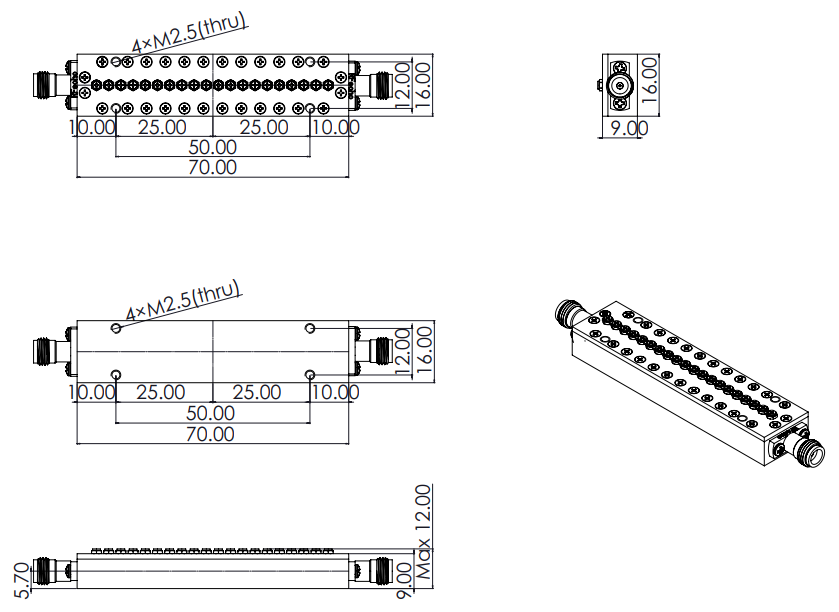

Outline
Band Pass Filter Datasheet (Click to download)
Additional information
| Weight | 0.075 kg |
|---|---|
| Dimensions | 70 × 16 × 9 cm |
| Center Frequency (F0) (MHz) | |
| Min. Pass Band Frequency (MHz) | |
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| Stop Band Rejection | |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
