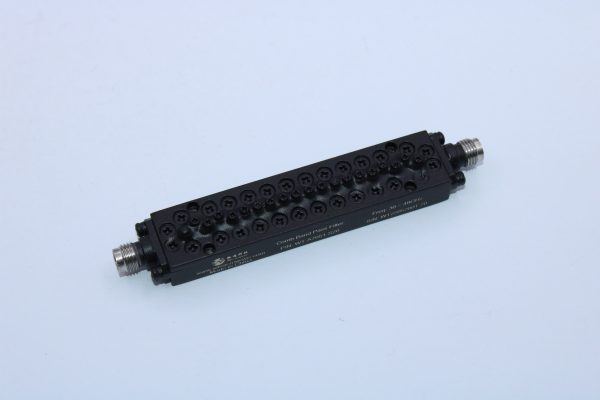

Band Pass Filter From 30~48GHz OBP-39000-18000 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-39000-18000, it’s Center Frequency (FO) is 39GHz, it’s Pass Band Bandwidth is 30~48GHz, it’s Pass Band Insertion Loss is ≤1.0dB, Pass Band Return Loss is >16dB, Pass Band VSWR is, and the Stop Band frequency is ≥80dB@DC~27.5GHz ≥30dB@27.5~29GHz510dB@49~52GHz.

Availability: Available on backorder SKU: OBP-39000-18000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-39000-18000, it’s Center Frequency (FO) is 39GHz, it’s Pass Band Bandwidth is 30~48GHz, it’s Pass Band Insertion Loss is ≤1.0dB, Pass Band Return Loss is >16dB, Pass Band VSWR is, and the Stop Band frequency is ≥80dB@DC~27.5GHz ≥30dB@27.5~29GHz510dB@49~52GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

39000

Min. Pass Band Frequency (MHz)

30000

Max. Pass Band Frequency (MHz)

48000

Pass Band Insertion Loss (dB)

≤1.0

Stop Band Rejection

≥80dB@DC~27.5GHz ≥30dB@27.5~29GHz510dB@49~52GHz.

Impedance (Ω)

50

Power Handling (W)

5.0W Max

Connection Type

2.4mm(Q)-Female
