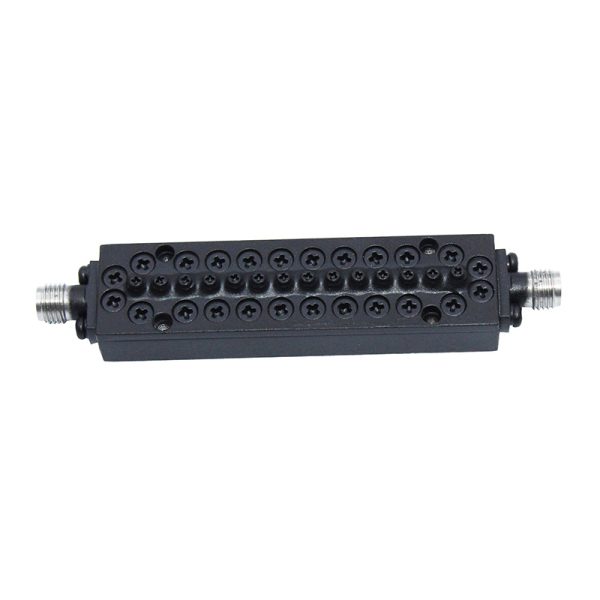

Band Pass Filter From 32~36GHz OBP-34000-4000 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-34000-4000, it’s Center Frequency (FO) is 34GHz, it’s Pass Band Bandwidth is 32~36GHz, it’s Pass Band Insertion Loss is ≤1.5dB, Pass Band Return Loss is, Pass Band VSWR is <1.3:1, and the Stop Band frequency is >65dB@DC~31GHz >50dB@37~49GHz.

Availability: Available on backorder SKU: OBP-34000-4000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-34000-4000, it’s Center Frequency (FO) is 34GHz, it’s Pass Band Bandwidth is 32~36GHz, it’s Pass Band Insertion Loss is ≤1.5dB, Pass Band Return Loss is, Pass Band VSWR is <1.3:1, and the Stop Band frequency is >65dB@DC~31GHz >50dB@37~49GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

34000

Min. Pass Band Frequency (MHz)

32000

Max. Pass Band Frequency (MHz)

36000

Pass Band Insertion Loss (dB)

≤1.5

Stop Band Rejection

>65dB@DC-31GHz>50dB@37-49GHz

Impedance (Ω)

50

Power Handling (W)

5.0W Max

Connection Type

2.92mm(K)-Female
