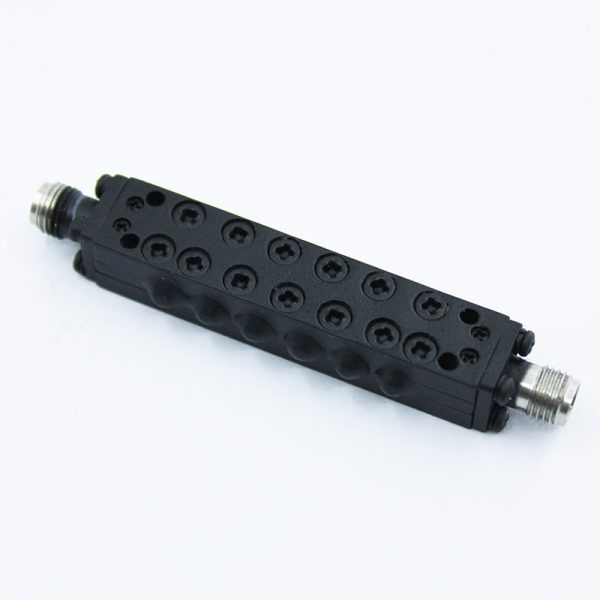

Band pass Filter From 35~40GHz OBP-375000-5000 With SMA-Female Connectors

Band pass Filter From 35~40GHz OBP-375000-5000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-375000-5000, it’s Center Frequency(F0) is37.5GHz, it’s Pass Band Bandwidth is 35~40GHz, it’s PassBand Insertion Loss is ≤3.0dB and its Pass BandVSWRis ≤2.0:1. It’s Stop Band frequency is≥45dB @ 33.5GHz ≥45dB @ 41.5GHz ≥70dB @ 32.5GHz ≥70dB @42.5GHz.





Availability: Available on backorder SKU: OBP-375000-5000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-375000-5000, it’s Center Frequency(F0) is37.5GHz, it’s Pass Band Bandwidth is 35~40GHz, it’s PassBand Insertion Loss is ≤3.0dB and its Pass BandVSWRis ≤2.0:1. It’s Stop Band frequency is≥45dB @ 33.5GHz ≥45dB @ 41.5GHz ≥70dB @ 32.5GHz ≥70dB @42.5GHz.

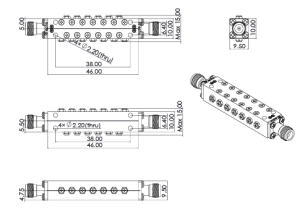

Outline

Band pass Filter From 35~40GHz OBP-375000-5000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-375000-5000

Additional information

Center Frequency (F0) (MHz)

37500

Min. Pass Band Frequency (MHz)

35000

Max. Pass Band Frequency (MHz)

40000

Pass Band Insertion Loss (dB)

≤3.0

Stop Band Rejection

≥45dB @ 33.5GHz≥45dB @ 41.5GHz ≥70dB @ 32.5GHz≥70dB @ 42.5GHz

Impedance (Ω)

50

Power Handling (W)

≤10

Connection Type

2.92mm-Female
