Band pass Filter From 35~40GHz OBP-375000-5000(NO.2) With SMA-Female Connectors

Band pass Filter From 35~40GHz OBP-375000-5000(NO.2) With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-375000-5000(NO.2), it’s Center Frequency(F0) is37.5GHz, it’s Pass Band Bandwidth is 35~40GHz, it’s Pass Band Insertion Loss is ≤2.0dB. It’s Stop Band frequency is≥80dB @ DC ~34GHz≥80dB @ 41 ~ 54GHz.





Availability: Available on backorder SKU: OBP-375000-5000(NO.2) Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-375000-5000(NO.2), it’s Center Frequency(F0) is37.5GHz, it’s Pass Band Bandwidth is 35~40GHz, it’s Pass Band Insertion Loss is ≤2.0dB. It’s Stop Band frequency is≥80dB @ DC ~34GHz≥80dB @ 41 ~ 54GHz.

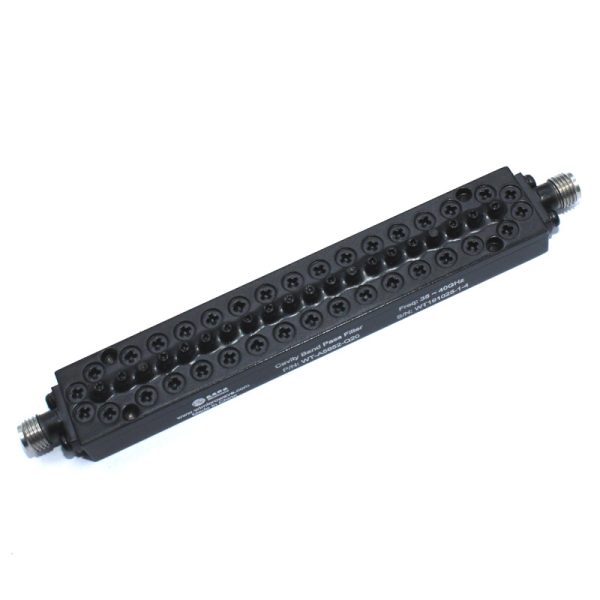

Outline

Band pass Filter From 35~40GHz OBP-375000-5000(NO.2) With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-375000-5000NO.2

Additional information

Center Frequency (F0) (MHz)

37500

Min. Pass Band Frequency (MHz)

35000

Max. Pass Band Frequency (MHz)

40000

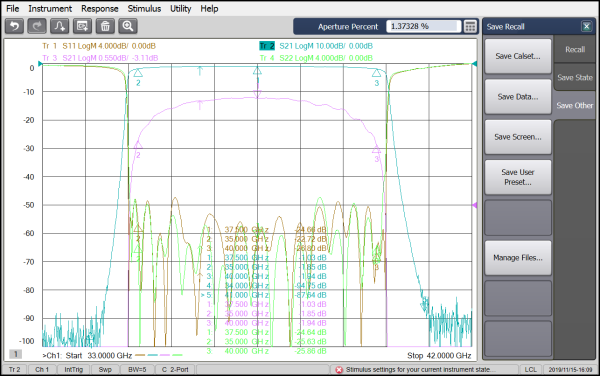

Pass Band Insertion Loss (dB)

≤2.0 ≤1.1 ≥15

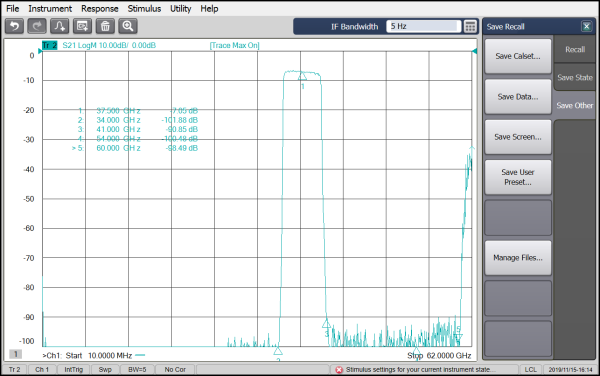

Stop Band Rejection

≥80dB @ DC ~ 34GHz ≥80dB @ 41 ~ 54GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm(K)-Female
