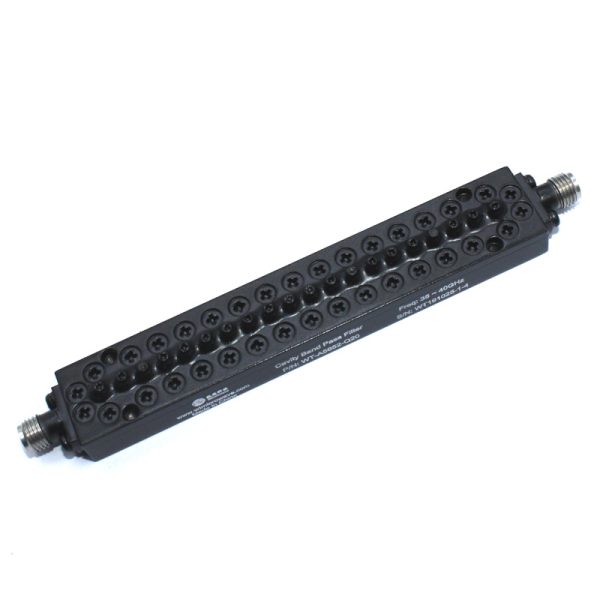

Band Pass Filter From 35~40GHz OBP-37500-5000 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-37500-5000, it’s Center Frequency (FO) is 37.5GHz, it’s Pass Band Bandwidth is 35~40GHz, it’s Pass Band Insertion Loss is<2.0dB, Pass Band Return Loss is>15dB, Pass Band VSWR is, and the Stop Band frequency is >80dB@DC-34GHz >80dB@41-54 GHz.

Availability: Available on backorder SKU: OBP-37500-5000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-37500-5000, it’s Center Frequency (FO) is 37.5GHz, it’s Pass Band Bandwidth is 35~40GHz, it’s Pass Band Insertion Loss is<2.0dB, Pass Band Return Loss is>15dB, Pass Band VSWR is, and the Stop Band frequency is >80dB@DC-34GHz >80dB@41-54 GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

37500

Min. Pass Band Frequency (MHz)

35000

Max. Pass Band Frequency (MHz)

40000

Pass Band Insertion Loss (dB)

≤2.0

Stop Band Rejection

>80dB@DC-34GHz>80dB@41-54GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
