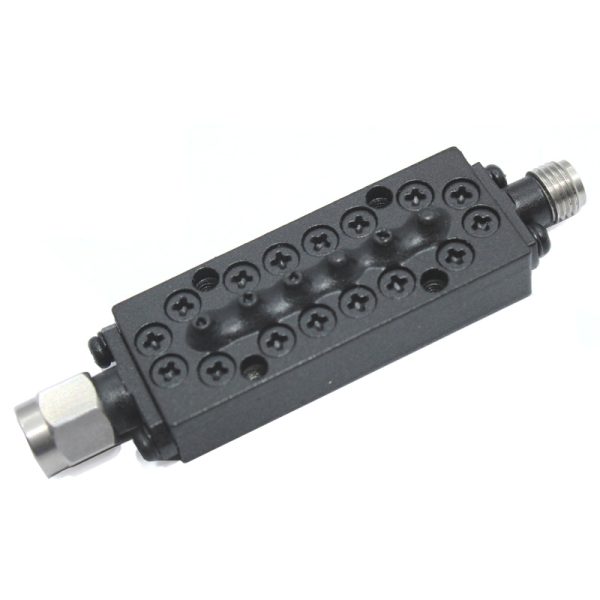

Band Pass Filter From 100MHz (36.95-37.05GHz) OBP-37000-100 With 2.92mm(K)-Female Connectors

Band Pass Filter From 100MHz (36.95-37.05GHz) OBP-37000-100 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP)isOBP-37000-100, it’s Center Frequency (FO) is 37GHz, it’s Pass Band Bandwidth is 100MHz (36.95-37.05GHz), it’s Pass Band Insertion Loss is≤1.7dB, Pass Band Return Loss is>15dB, Pass Band VSWR is<2.0:1, and the Stop Band frequency is >40dB@DC~36GHz>40dB@38~48GHz.

Availability: Available on backorder SKU: OBP-37000-100 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-37000-100, it’s Center Frequency (FO) is 37GHz, it’s Pass Band Bandwidth is 100MHz (36.95-37.05GHz), it’s Pass Band Insertion Loss is≤1.7dB, Pass Band Return Loss is>15dB, Pass Band VSWR is<2.0:1, and the Stop Band frequency is >40dB@DC~36GHz>40dB@38~48GHz.

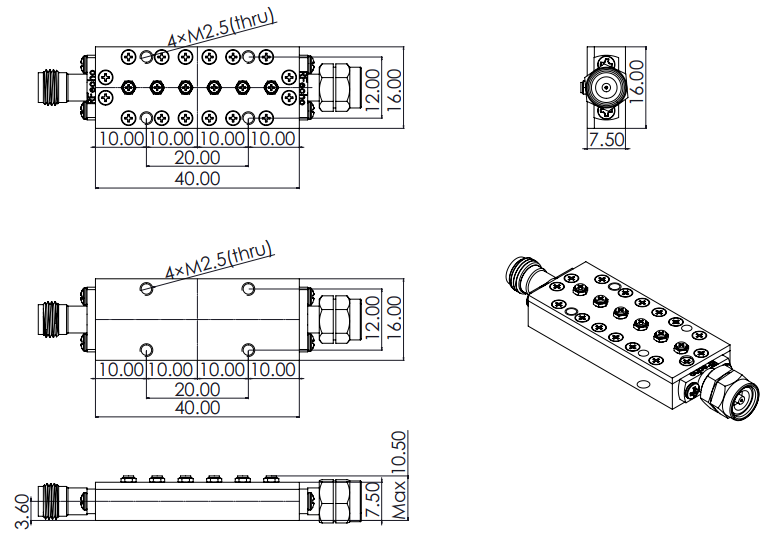

Outline

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

37000

Min. Pass Band Frequency (MHz)

36950

Max. Pass Band Frequency (MHz)

37050

Pass Band Insertion Loss (dB)

≤1.7

Stop Band Rejection

>40dB@DC~36GHz>40dB@38-48GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
