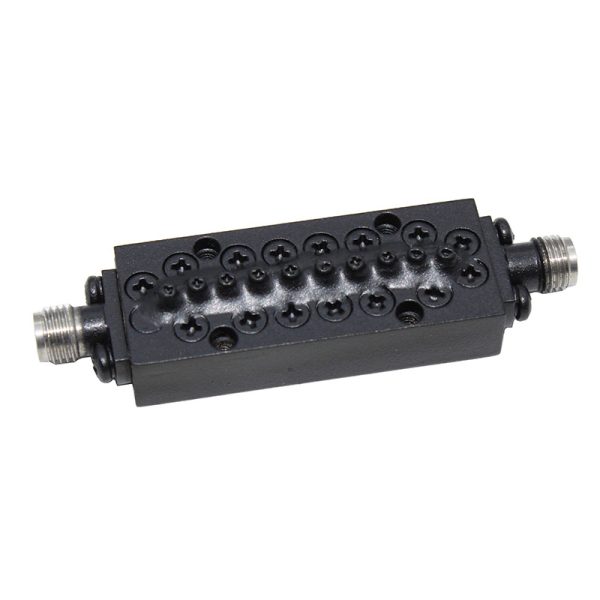

Band Pass Filter From 36~42GHz OBP-39000-6000 With 2.92mm-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP)is OBP-39000-6000, it’s Center Frequency (FO) is 39GHz, it’s Pass Band Bandwidth is 36~42GHz, it’s Pass Band Insertion Loss is <1.5dB, Pass Band Return Loss is, Pass Band VSWR is <1:5: l, and the Stop Band frequency is >45dB@31.5GHz>45dB@45GHz.

Availability: Available on backorder SKU: OBP-39000-6000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP)is OBP-39000-6000, it’s Center Frequency (FO) is 39GHz, it’s Pass Band Bandwidth is 36~42GHz, it’s Pass Band Insertion Loss is <1.5dB, Pass Band Return Loss is, Pass Band VSWR is <1:5: l, and the Stop Band frequency is >45dB@31.5GHz>45dB@45GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

39000

Min. Pass Band Frequency (MHz)

36000

Max. Pass Band Frequency (MHz)

42000

Pass Band Insertion Loss (dB)

≤1.5dB

Stop Band Rejection

>45dB@31.5GHz>45dB@45GHz

Impedance (Ω)

50

Power Handling (W)

≤5W

Connection Type

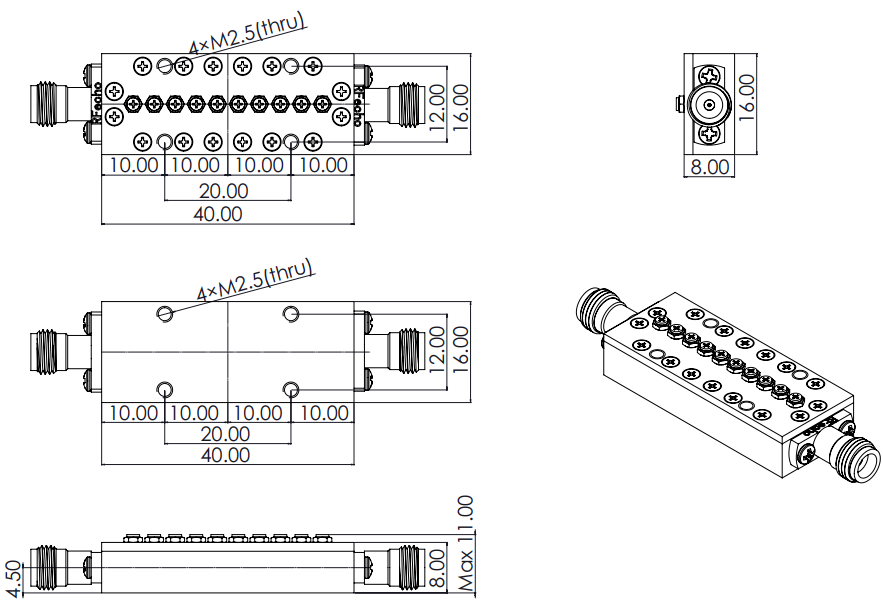

As Below (Size Unit:mm)
