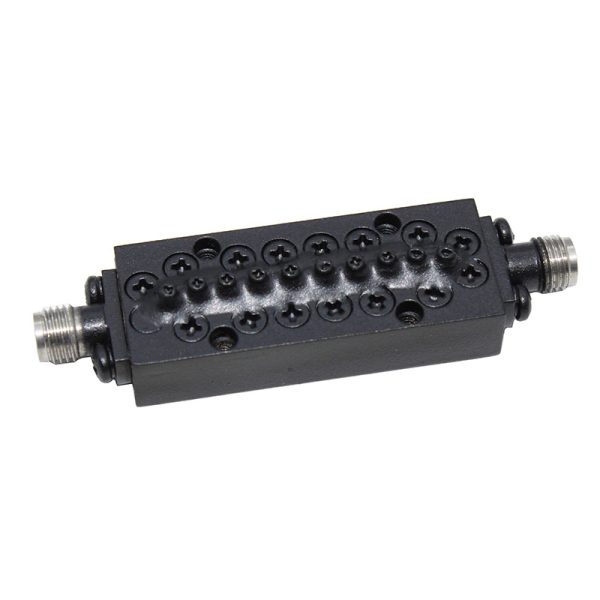

Band pass Filter From 36~42GHz OBP-390000-6000 With SMA-Female Connectors

Band pass Filter From 36~42GHz OBP-390000-6000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-390000-6000, it’s Center Frequency(F0) is 39GHz, it’s Pass Band Bandwidth is 36~42GHz, it’s PassBand Insertion Loss is ≤1.5dB and its Pass BandVSWRis ≤1.5:1. It’s Stop Band frequency is ≥45dB @ 31.5GHz ≥45dB @ 45GHz.





Availability: Available on backorder SKU: OBP-390000-6000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-390000-6000, it’s Center Frequency(F0) is 39GHz, it’s Pass Band Bandwidth is 36~42GHz, it’s PassBand Insertion Loss is ≤1.5dB and its Pass BandVSWRis ≤1.5:1. It’s Stop Band frequency is ≥45dB @ 31.5GHz ≥45dB @ 45GHz.

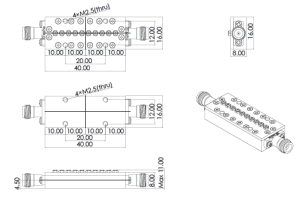

Outline

Band pass Filter From 36~42GHz OBP-390000-6000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-390000-6000

Additional information

Center Frequency (F0) (MHz)

39000

Min. Pass Band Frequency (MHz)

36000

Max. Pass Band Frequency (MHz)

42000

Pass Band Insertion Loss (dB)

≤1.5

Stop Band Rejection

≥45dB @ 31.5GHz≥45dB @ 45GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm-Female

Reviews

There are no reviews yet.
