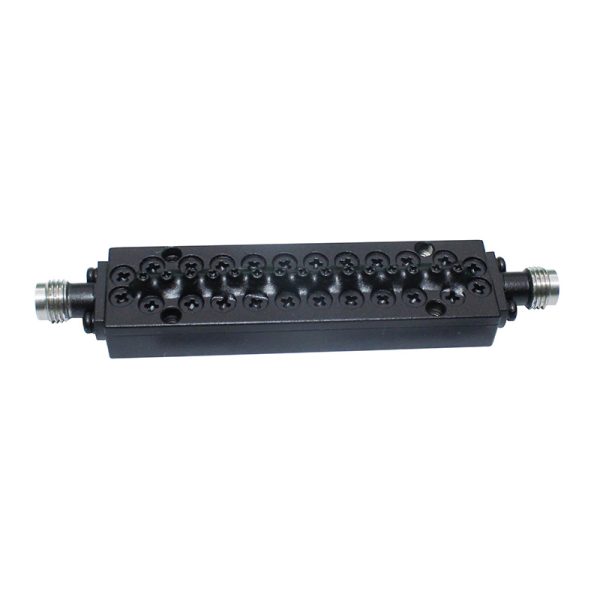

Band Pass Filter From 37.5~44.5GHz OBP-41000-7000 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

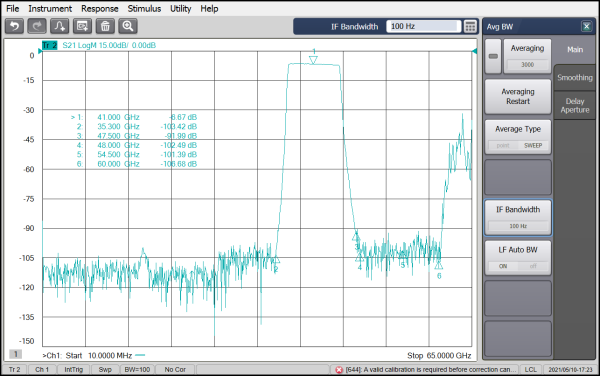

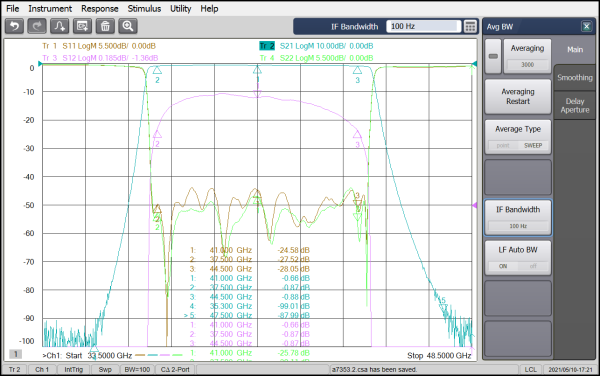

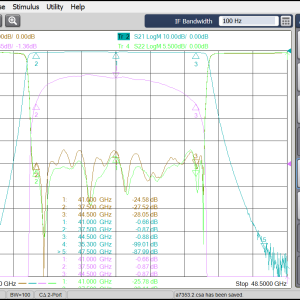

The product name of this Ocean band-pass filter(OBP)is BP-41000-7000,it’s Center Frequency(FO) is 41GHz,it’s Pass Band Bandwidth is 37.5~44.5GHz,it’s Pass Band Insertion Loss is <1.1dB,Pass Band Return Loss is ≥18dB,Pass Band VSWR is,and the Stop Band frequency is >80dB@DC~35.3GHz>80dB@47.5~58.5GHz.

Availability: Available on backorder SKU: OBP-41000-7000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter(OBP)is BP-41000-7000,it’s Center Frequency(FO) is 41GHz,it’s Pass Band Bandwidth is 37.5~44.5GHz,it’s Pass Band Insertion Loss is <1.1dB,Pass Band Return Loss is ≥18dB,Pass Band VSWR is,and the Stop Band frequencyis >80dB@DC~35.3GHz>80dB@47.5~58.5GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

41000

Min. Pass Band Frequency (MHz)

37500

Max. Pass Band Frequency (MHz)

44500

Pass Band Insertion Loss (dB)

≤1.1

Stop Band Rejection

>80dB@DC-35.3GHz>80dB@47.5-58.5GHz

Impedance (Ω)

50

Power Handling (W)

10W Max.

Connection Type

2.4mm-Female
