Band Pass Filter From 37~42GHz OBP-39500-5OOO With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Oceanband-pass filter(OBP) is OBP-39500-5OOO,it’s Center Frequency(FO) is 39.5GHz,it’s Pass Band Bandwidthis 37~42GHz ,it’sPass Band InsertionLossis<1.8dB,Pass Band Return Loss is,Pass Band VSWR is<1.5:1,and the Stop Band frequency is >60dB@DC~35.4GHz≥55dB@43.6~50GHz.

Availability: Available on backorder SKU: OBP-39500-5OOO Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Oceanband-pass filter(OBP) is OBP-39500-5OOO,it’s Center Frequency(FO) is 39.5GHz,it’s Pass Band Bandwidthis 37~42GHz ,it’sPass Band InsertionLossis<1.8dB,Pass Band Return Loss is,Pass Band VSWR is<1.5:1,and the Stop Band frequency is >60dB@DC~35.4GHz≥55dB@43.6~50GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

39500

Min. Pass Band Frequency (MHz)

37000

Max. Pass Band Frequency (MHz)

42000

Pass Band Insertion Loss (dB)

≤1.8

Stop Band Rejection

>60dB@DC~35.4GHz>55dB@43.6~50GHz

Impedance (Ω)

50

Power Handling (W)

≤5W

Connection Type

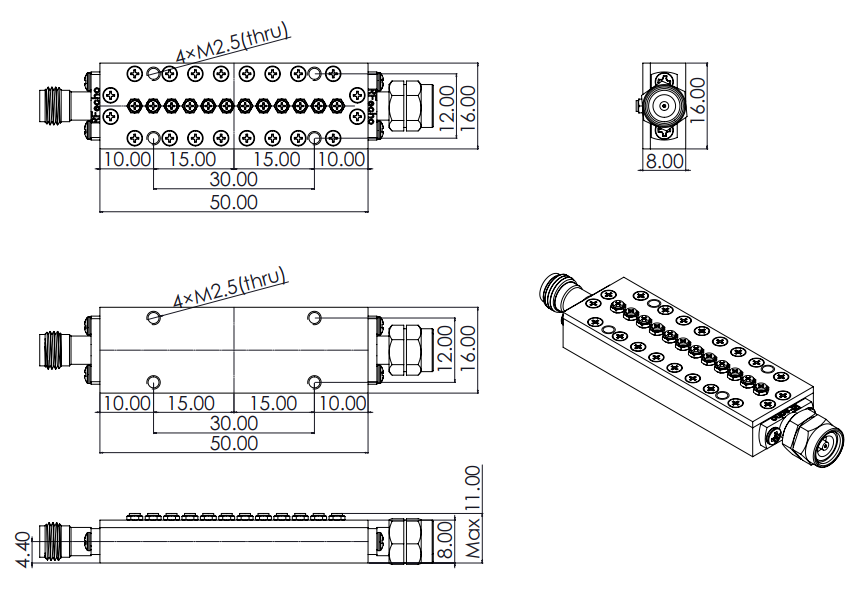

As Below (Size Unit:mm)
