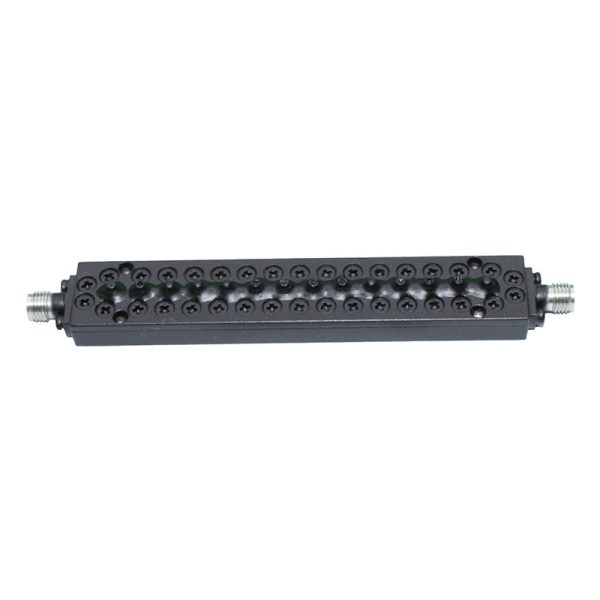

Band Pass Filter From 1.0GHz(38.5~39.5GHz) OBP-39000-1000 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter(OBP)isOBP-39000-1000,it’s Center Frequency(FO) is 39GHz,it’sPass Band Bandwidthis 1.0GHz(38.5~39.5GHz),it’s Pass Band Insertion Loss is<2.5dB,Pass Band Return Loss is ≥18dB,Pass Band VSWR is,and the Stop Band frequencyis >50dB@DC~38.2GHz >50dB@39.8~58.5GHz.

Availability: Available on backorder SKU: OBP-39000-1000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter(OBP)is OBP-39000-1000,it’s Center Frequency(FO) is 39GHz,it’sPass Band Bandwidthis 1.0GHz(38.5~39.5GHz),it’s Pass Band Insertion Loss is<2.5dB,Pass Band Return Loss is ≥18dB,Pass Band VSWR is,and the Stop Band frequencyis >50dB@DC~38.2GHz >50dB@39.8~58.5GHz.

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

39000

Min. Pass Band Frequency (MHz)

38500

Max. Pass Band Frequency (MHz)

39500

Pass Band Insertion Loss (dB)

≤2.5dB

Stop Band Rejection

>50dB@DC~38.2GHz>50dB@39.8-58.5GHz

Impedance (Ω)

50

Power Handling (W)

10W Max.

Connection Type

2.92mm(K)-Female
