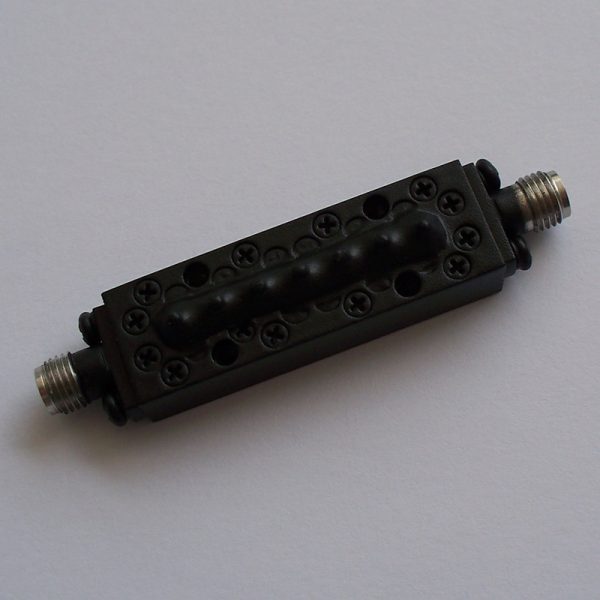

Band pass Filter From 38.6~40GHz OBP-393000-1400 With SMA-Female Connectors

Band pass Filter From 38.6~40GHz OBP-393000-1400 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-393000-1400, it’s Center Frequency(F0) is39.3GHz, it’s Pass Band Band width is 38.6~40GHz, it’s PassBand Insertion Loss is ≤1.8dB and it’s Pass Band VSWR is ≤1.5:1. It’s Stop Band frequency is≥40dB @ F0±2.0GHz (37.3GHz、41.3GHz).





Availability: Available on backorder SKU: OBP-393000-1400 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-393000-1400, it’s Center Frequency(F0) is39.3GHz, it’s Pass Band Band width is 38.6~40GHz, it’s PassBand Insertion Loss is ≤1.8dB and it’s Pass Band VSWR is ≤1.5:1. It’s Stop Band frequency is≥40dB @ F0±2.0GHz (37.3GHz、41.3GHz).

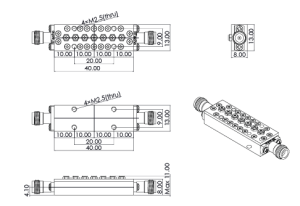

Outline

Band pass Filter From 38.6~40GHz OBP-393000-1400 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-393000-1400

Additional information

Center Frequency (F0) (MHz)

39300

Min. Pass Band Frequency (MHz)

38600

Max. Pass Band Frequency (MHz)

40000

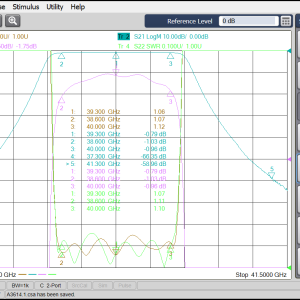

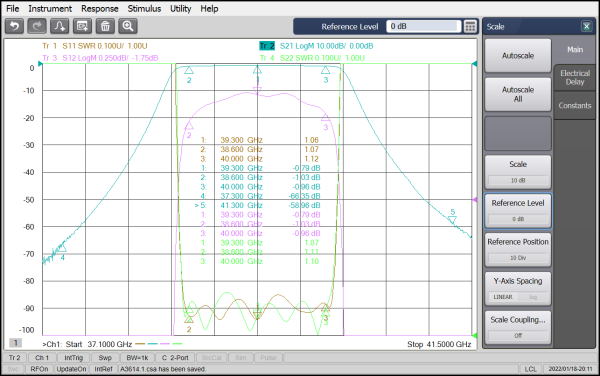

Pass Band Insertion Loss (dB)

≤1.8

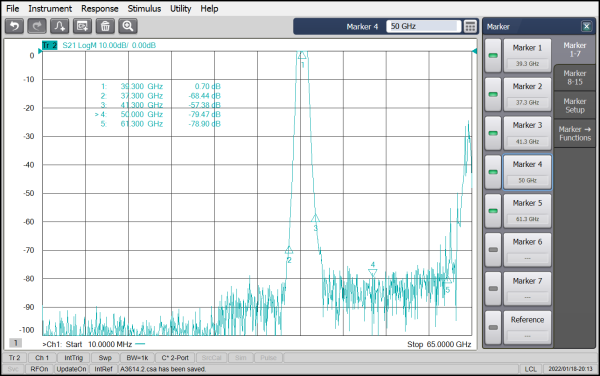

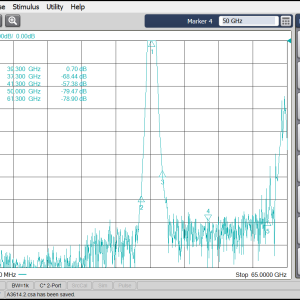

Stop Band Rejection

≥40dB @ F0±2.0GHz(37.3GHz、41.3GHz)

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm-Female
