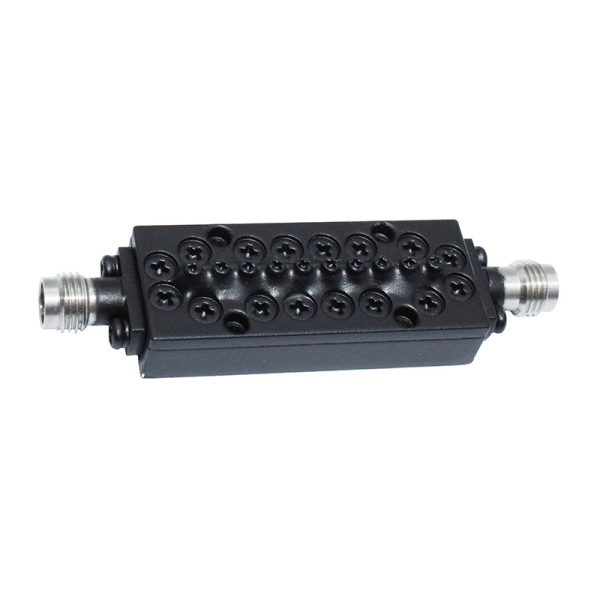

Band pass Filter From 4.0GHz (39~43GHz) OBP-410000-4000 With SMA-Female Connectors

Band pass Filter From 4.0GHz (39~43GHz) OBP-410000-4000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-410000-4000,it’s Center Frequency(F0) is 41GHz, it’s Pass Band Bandwidth is 4.0GHz (39~43GHz), it’s Pass Band Insertion Loss is≤1.0dB,PassBand VSWRand the Stop Band frequency is≥60dB @DC~37GHz≥55dB @45~60GHz.





Availability: Available on backorder SKU: OBP-410000-4000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-410000-4000,it’s Center Frequency(F0) is 41GHz, it’s Pass Band Bandwidth is 4.0GHz (39~43GHz), it’s Pass Band Insertion Loss is≤1.0dB,PassBand VSWRand the Stop Band frequency is≥60dB @DC~37GHz≥55dB @45~60GHz

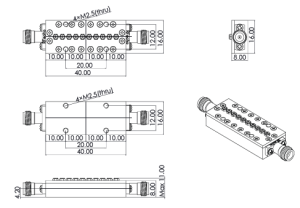

Outline

Band pass Filter From 4.0GHz (39~43GHz) OBP-410000-4000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-410000-4000

Additional information

Center Frequency (F0) (MHz)

41000

Min. Pass Band Frequency (MHz)

39000

Max. Pass Band Frequency (MHz)

43000

Pass Band Insertion Loss (dB)

≤1.0 ≤0.3 ≥18

Stop Band Rejection

≥60dB @ DC ~ 37GHz ≥55dB @ 45 ~ 60GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.4mm-Female
