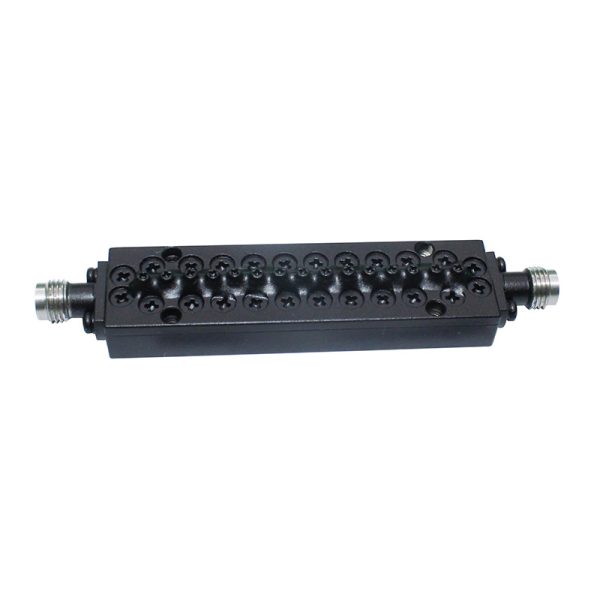

Band pass Filter From 37.5 ~ 44.5GHz OBP-410000-7000 With SMA-Female Connectors

Band pass Filter From 37.5 ~ 44.5GHz OBP-410000-7000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-410000-7000, it’s Center Frequency(F0) is 41GHz, it’s Pass Band Bandwidth is 37.5 ~ 44.5GHz, it’s PassBand Insertion Loss is ≤1.1dB. Its Stop Band frequency is ≥80dB @DC~35.3GHz ≥80dB @ 47.5~58.5GHz .





Availability: Available on backorder SKU: OBP-410000-7000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-410000-7000, it’s Center Frequency(F0) is 41GHz, it’s Pass Band Bandwidth is 37.5 ~ 44.5GHz, it’s PassBand Insertion Loss is ≤1.1dB. Its Stop Band frequency is ≥80dB @DC~35.3GHz ≥80dB @ 47.5~58.5GHz .

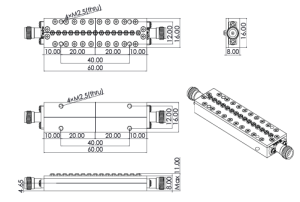

Outline

Band pass Filter From 37.5 ~ 44.5GHz OBP-410000-7000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-410000-7000

Additional information

Center Frequency (F0) (MHz)

41000

Min. Pass Band Frequency (MHz)

37500

Max. Pass Band Frequency (MHz)

44500

Pass Band Insertion Loss (dB)

≤1.1 ≤0.37 ≥18

Stop Band Rejection

≥80dB @ DC ~ 35.3GHz ≥80dB @ 47.5 ~ 58.5GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.4mm-Female
