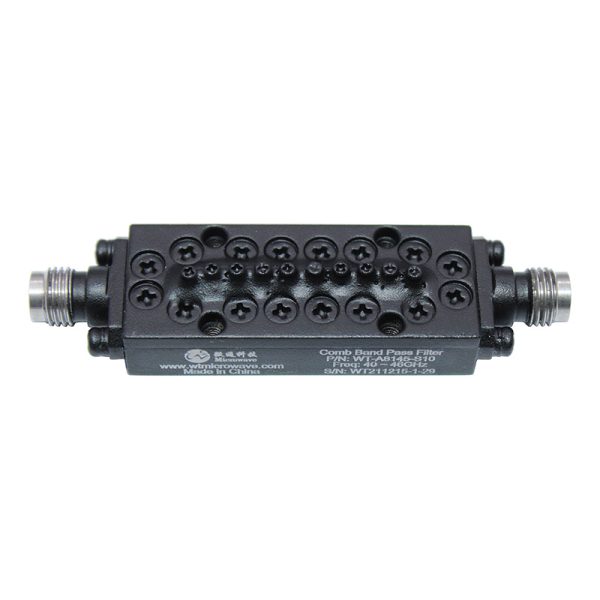

Band pass Filter From 40~46GHz OBP-430000-6000 With SMA-Female Connectors

Band pass Filter From 40~46GHz OBP-430000-6000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-430000-6000,it’s Center Frequency(F0) is 43GHz, it’s Pass Band Bandwidth is 40~46GHz, it’s Pass Band Insertion Loss is ≤1.3dB,PassBandVSWRand theStop Bandfrequency is≥80dB @DC~36GHz≥40dB @36~38.5GHz≥40dB @47.7~50GHz≥80dB @50~58GHz





Availability: Available on backorder SKU: OBP-430000-6000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-430000-6000,it’s Center Frequency(F0) is 43GHz, it’s Pass Band Bandwidth is 40~46GHz, it’s Pass Band Insertion Loss is ≤1.3dB,PassBandVSWRand theStop Bandfrequency is≥80dB @DC~36GHz≥40dB @36~38.5GHz≥40dB @47.7~50GHz≥80dB @50~58GHz

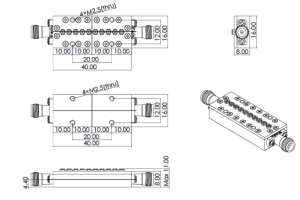

Outline

Band pass Filter From 40~46GHz OBP-430000-6000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-430000-6000

Additional information

Center Frequency (F0) (MHz)

43000

Min. Pass Band Frequency (MHz)

40000

Max. Pass Band Frequency (MHz)

46000

Pass Band Insertion Loss (dB)

≤1.3 ≤0.55 ≥17

Stop Band Rejection

≥80dB @ DC ~ 36GHz≥40dB @ 36 ~ 38.5GHz ≥40dB @ 47.7 ~ 50GHz≥80dB @ 50 ~ 58GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.4mm(Q)-Female
