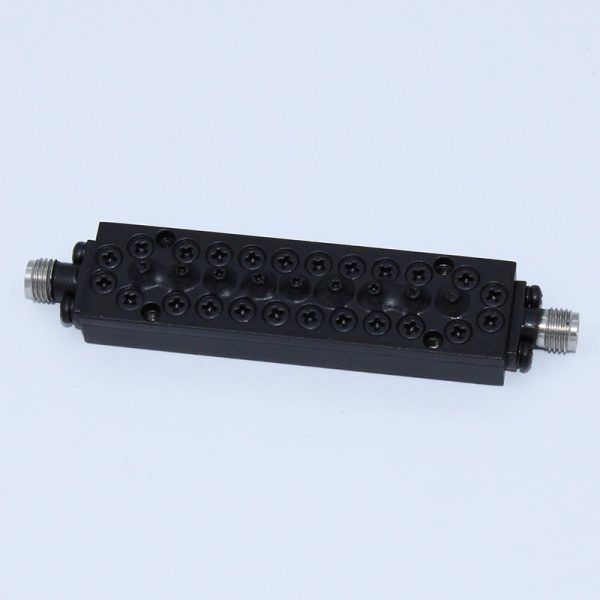

Band pass Filter From 600GHz(31800~32400MHz) OBP-32100-600 With SMA-Female Connectors

Band pass Filter From 600GHz(31800~32400MHz) OBP-32100-600 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-32100-600 ,its Center Frequency(F0) is 32.1GHz, its Pass Band Bandwidth is 600GHz(31800~32400MHz) its Pass Band Insertion Loss is≤2.0dB@32.1GHz ≤2.8dB@31.8GHz~32.4GHz, and itsPassBandVSWRis. Its Stop Bandfrequency is≥25dB @ 0~31600MHz ≥25dB @ 32600~45000MHz

Availability: Available on backorder SKU: OBP-32100-600 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-32100-600 ,its Center Frequency(F0) is 32.1GHz, its Pass Band Bandwidth is 600GHz(31800~32400MHz) its Pass Band Insertion Loss is≤2.0dB@32.1GHz ≤2.8dB@31.8GHz~32.4GHz, and itsPassBandVSWRis. Its Stop Bandfrequency is≥25dB @ 0~31600MHz ≥25dB @ 32600~45000MHz

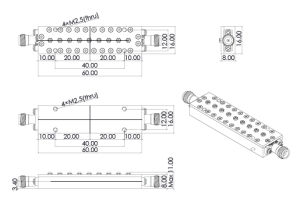

Outline

Band pass Filter From 600GHz(31800~32400MHz) OBP-32100-600 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-32100-600

Additional information

Center Frequency (F0) (MHz)

32100

Min. Pass Band Frequency (MHz)

31800

Max. Pass Band Frequency (MHz)

32400

Pass Band Insertion Loss (dB)

≤2.0dB @ 32100MHz≤2.8dB @ 31800~32400MHz

Stop Band Rejection

≥25dB @ 0~31600MHz≥25dB @ 32600~45000MHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
