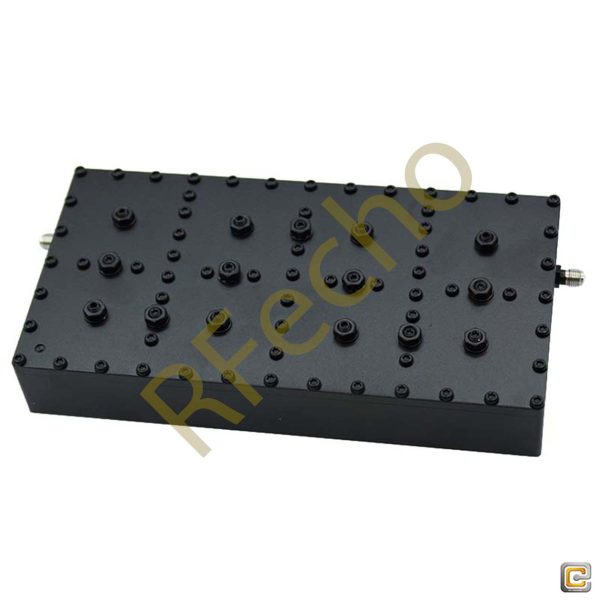

Bandpass Filter From 2.452GHz To 2.472GHz With SMA-Female Connectors

Bandpass Filter From 2.452GHz To 2.472GHz With SMA-Female Connectors

0 out of 5

Cavity bandpass filter part number OBP-2462-20-A is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 2.452GHz To 2.472GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.4:1 and a maximum power of 20 Watts.

SKU: OBP-2462-20-A Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

SPEC

Cavity bandpass filter

Bandpass Filter From 2.452GHz To 2.472GHz With SMA-Female Connectors

OBP-2462-20-A

Cavity bandpass filter part number OBP-2462-20-A is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 2.452GHz To 2.472GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.4:1 and a maximum power of 20 Watts.

Property

Value

Center Frequency (F0) (MHz)

2462

Min. Pass Band Frequency (MHz)

2452

Max. Pass Band Frequency (MHz)

2472

Pass Band Insertion Loss (dB)

≤2.5

Stop Band Rejection

≥30dB @ DC~2448MHz ≥30dB @ 2476~5000MHz

Impedance (Ω)

50

Power Handling (W)

≤20

Connection Type

SMA-Female

Data Sheet

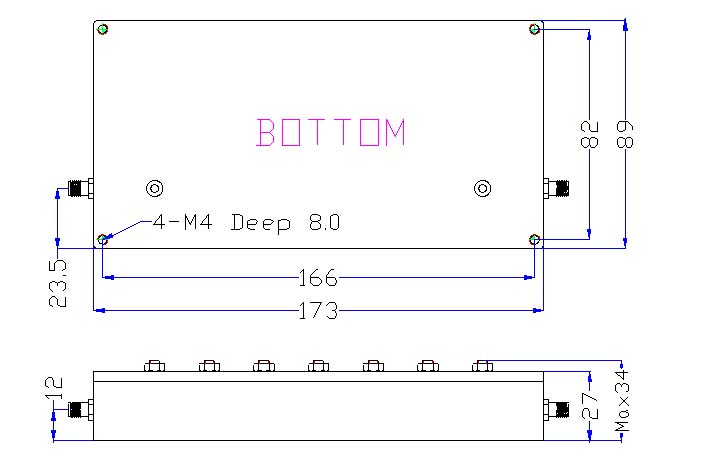

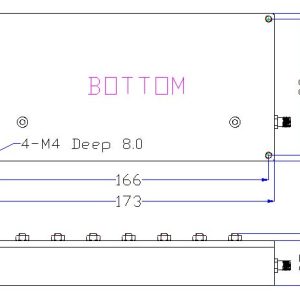

Outline

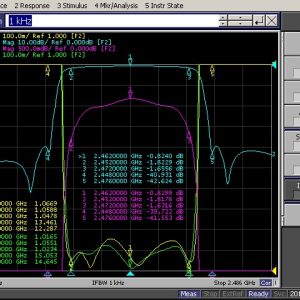

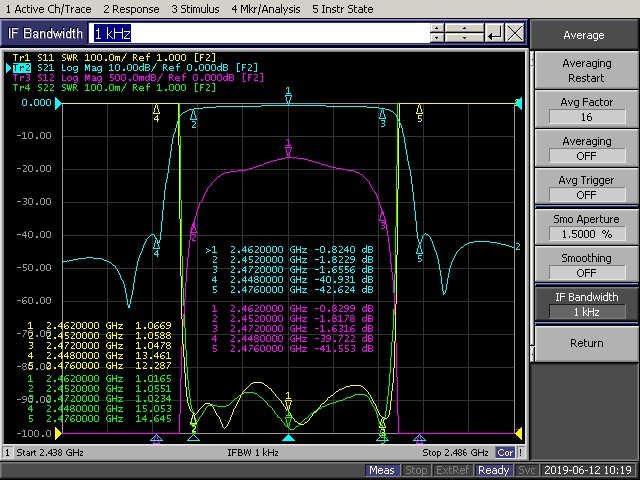

Plot

Additional information

Min. Pass Band Frequency (MHz)

2452

Max. Pass Band Frequency (MHz)

2472

Pass Band Insertion Loss (dB)

≤2.5

1

≥30dB @ DC~2448MHz ≥30dB @ 2476~5000MHz

Impedance (Ω)

50

Power Handling (W)

≤20

Connection Type

SMA-Female
