Bandpass Filter From 37GHz To 42GHz With N-Type 2.92mm(K) M/F Connectors

Cavity bandpass filter

Bandpass Filter From 37GHz To 42GHz With N-Type 2.92mm(K) M/F Connectors

OBP-39500-5000-A

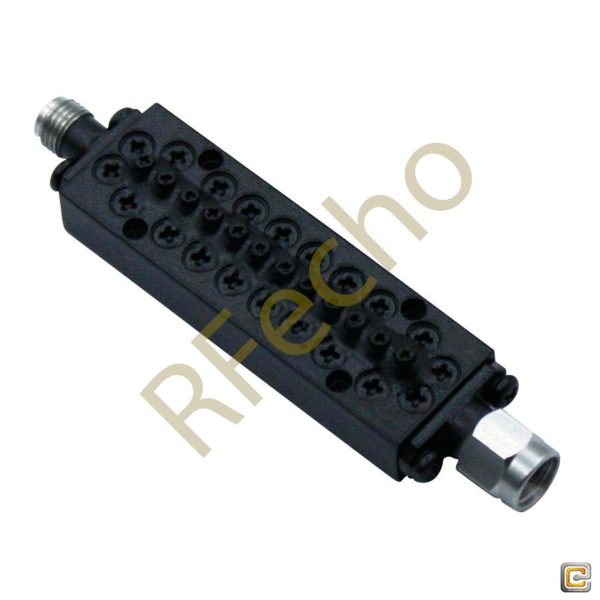

Cavity bandpass filter part number OBP-39500-5000-A is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 37GHz to 42GHz with N-Type 2.92mm(K) M/F Connectors. The N-Type cavity bandpass filter design is rated for a VSWR of ≤1.5:1 and a maximum power of 5 Watts.

Property

Value

Center Frequency (F0) (MHz)

39500

Min. Pass Band Frequency (MHz)

37000

Max. Pass Band Frequency (MHz)

42000

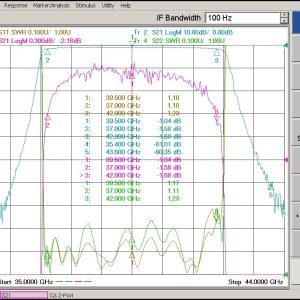

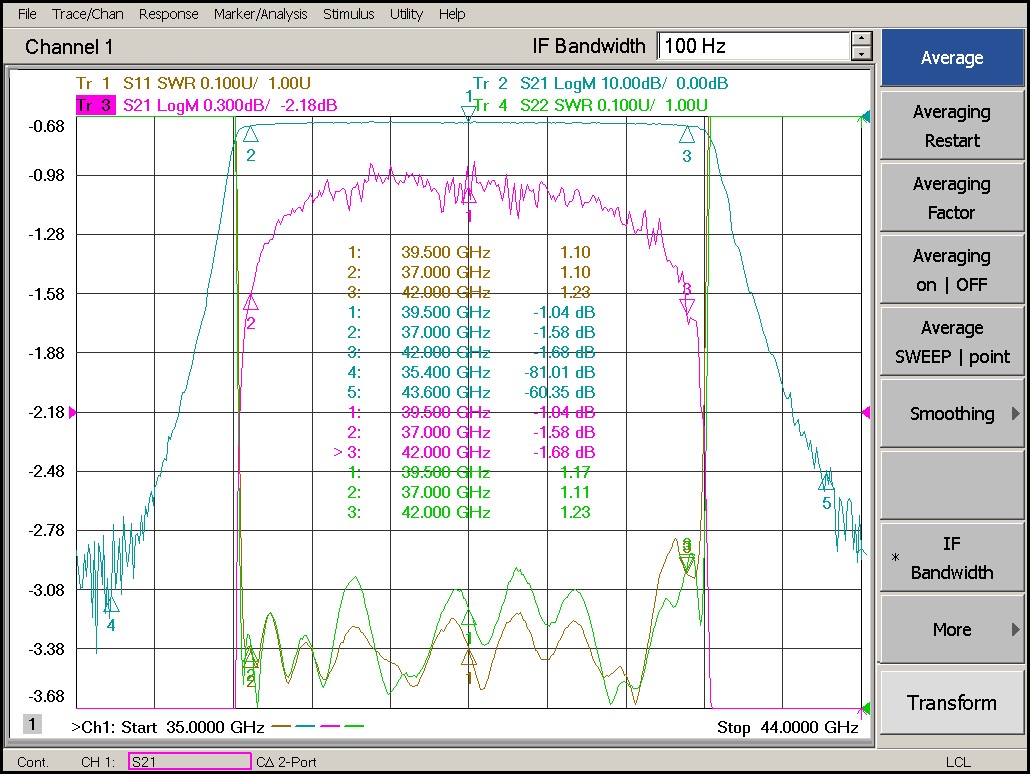

Pass Band Insertion Loss (dB)

≤1.8

Stop Band Rejection

≥60dB @ DC～35.4GHz ≥55dB @ 43.6～50GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

Input: 2.92mm(K)-Male Output: 2.92mm(K)- Female
