Biconical Antenna OBC033

0 out of 5

The OBC033 is a high-performance Biconical antenna, designed for a broad frequency range from 30 MHz to 300 MHz, and well-known for its perfect pattern stability with 100W power handling. The 4:1 Balun design of this model enhances gain and provides a more sensitive antenna factor. The OBC033 features robust broadband characteristics, making it a popular choice for a wide range of EMI testing operations, including demonstrating compliance with FCC,
CE, MIL-STD, RTCADO-160 and other criteria. It integrates flawlessly into scanning measurement and automated measurement systems, and is commonly used for transmission and immunity test to meet various EMC standard. Moreover, this antenna can completely replace traditional half-wave dipole antenna, providing a significant time saving.

SKU: OBC033 Categories: Biconical Antenna, RF Antenna, Uncategorized

Description

Biconical Antenna OBC033

OBC033

The OBC033 is a high-performance Biconical antenna, designed for a broad frequency range from 30 MHz to 300 MHz, and well-known for its perfect pattern stability with 100W power handling. The 4:1 Balun design of this model enhances gain and provides a more sensitive antenna factor. The OBC033 features robust broadband characteristics, making it a popular choice for a wide range of EMI testing operations, including demonstrating compliance with FCC,
CE, MIL-STD, RTCADO-160 and other criteria. It integrates flawlessly into scanning measurement and automated measurement systems, and is commonly used for transmission and immunity test to meet various EMC standard. Moreover, this antenna can completely replace traditional half-wave dipole antenna, providing a significant time saving.

Property

Value

Frequency Range

30 MHz∼300 MHz

Antenna Factor

1.32 m

Holder length / diameter

0.58 m / 22 mm

Connector

N

Element fixture

10 mm

Holder / balun weight

0.9KG

Features

30-300 MHz coverage.

Ensures accurate results.

Supports up to 100W power.

Applications

Ensures EMC compliance

Automated measurement systems.

Transmission and immunity testing.

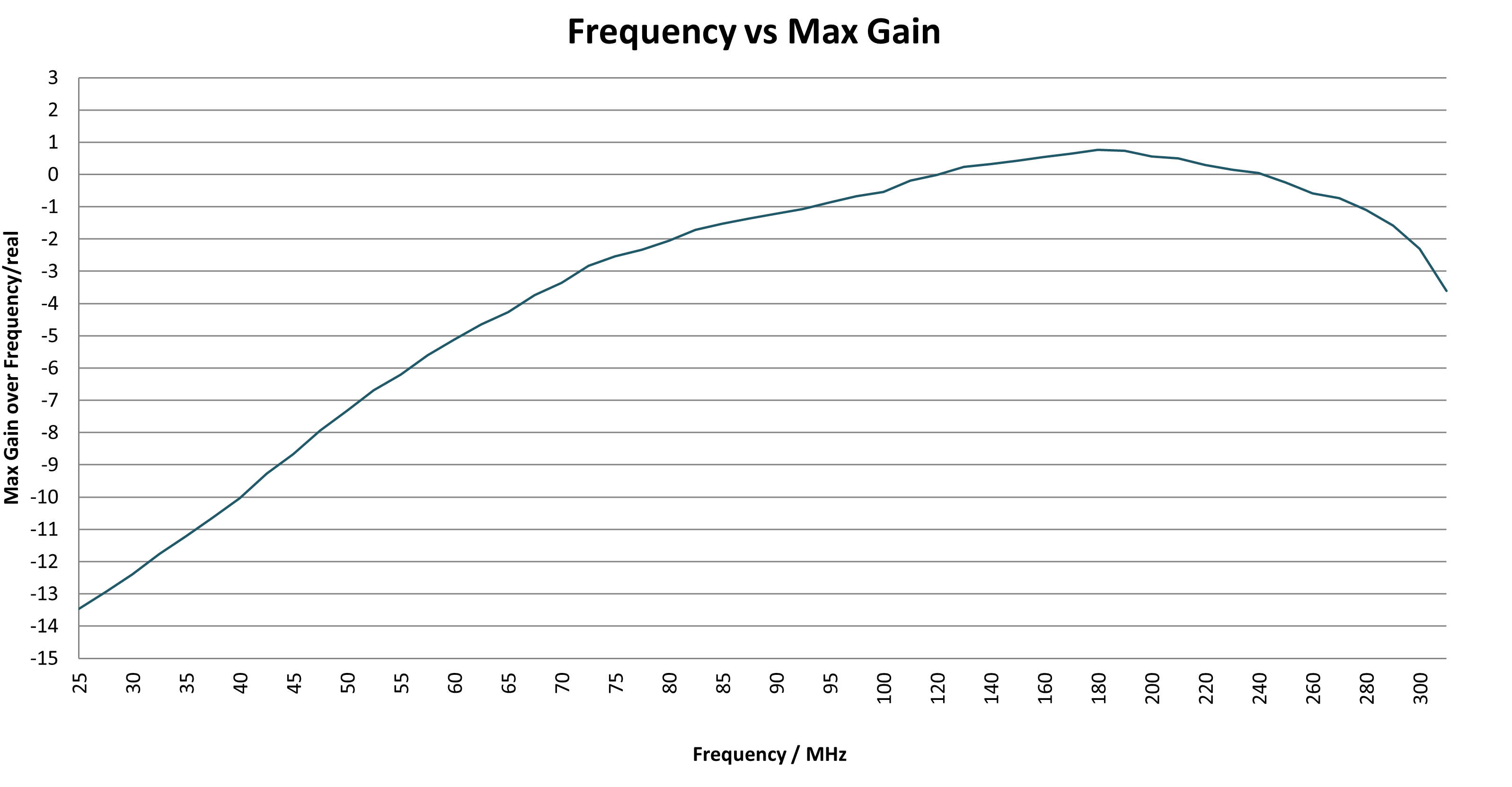

Frequency vs Max Gain 1m

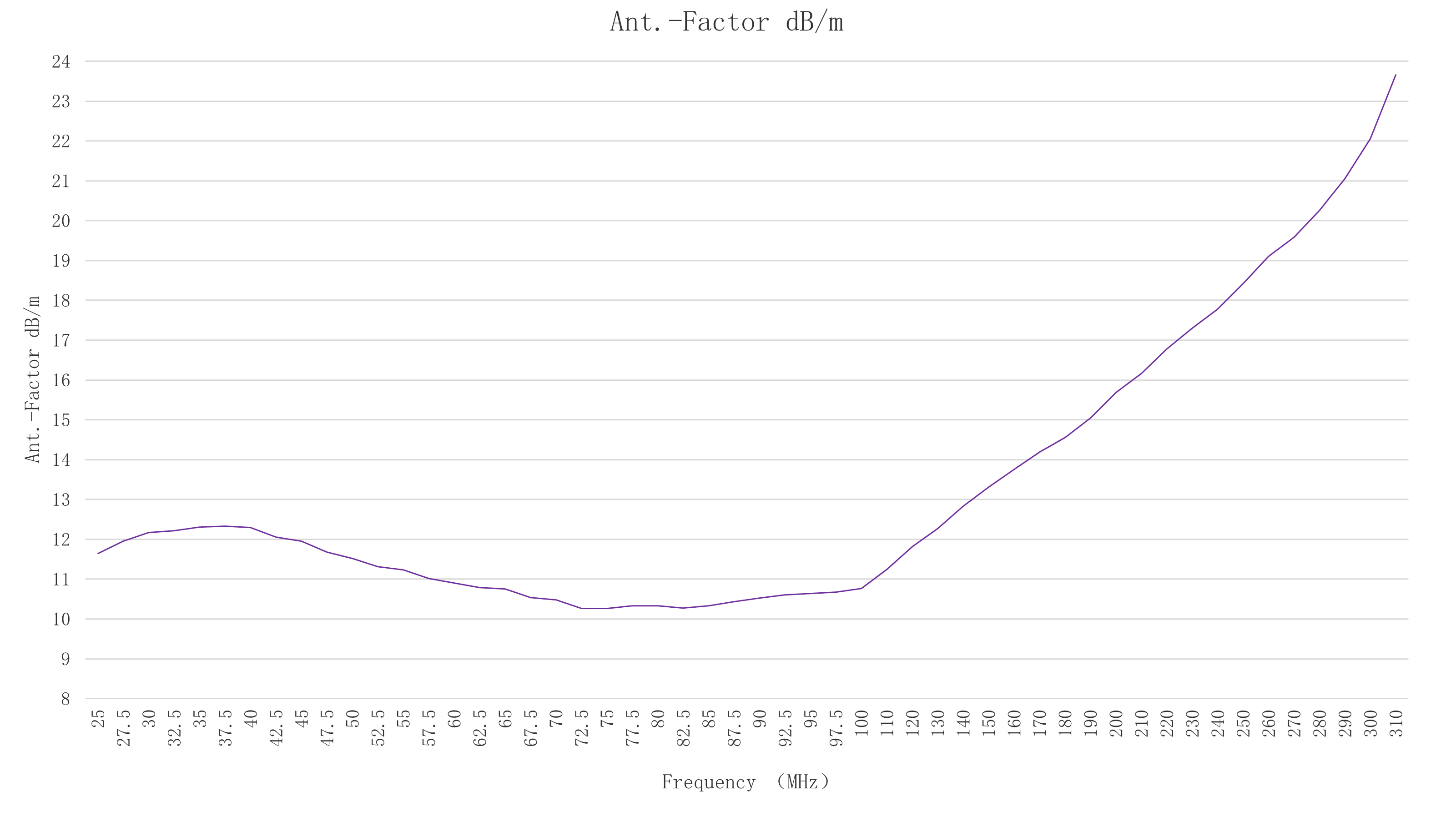

Ant.-Factor(dB/m) 1m

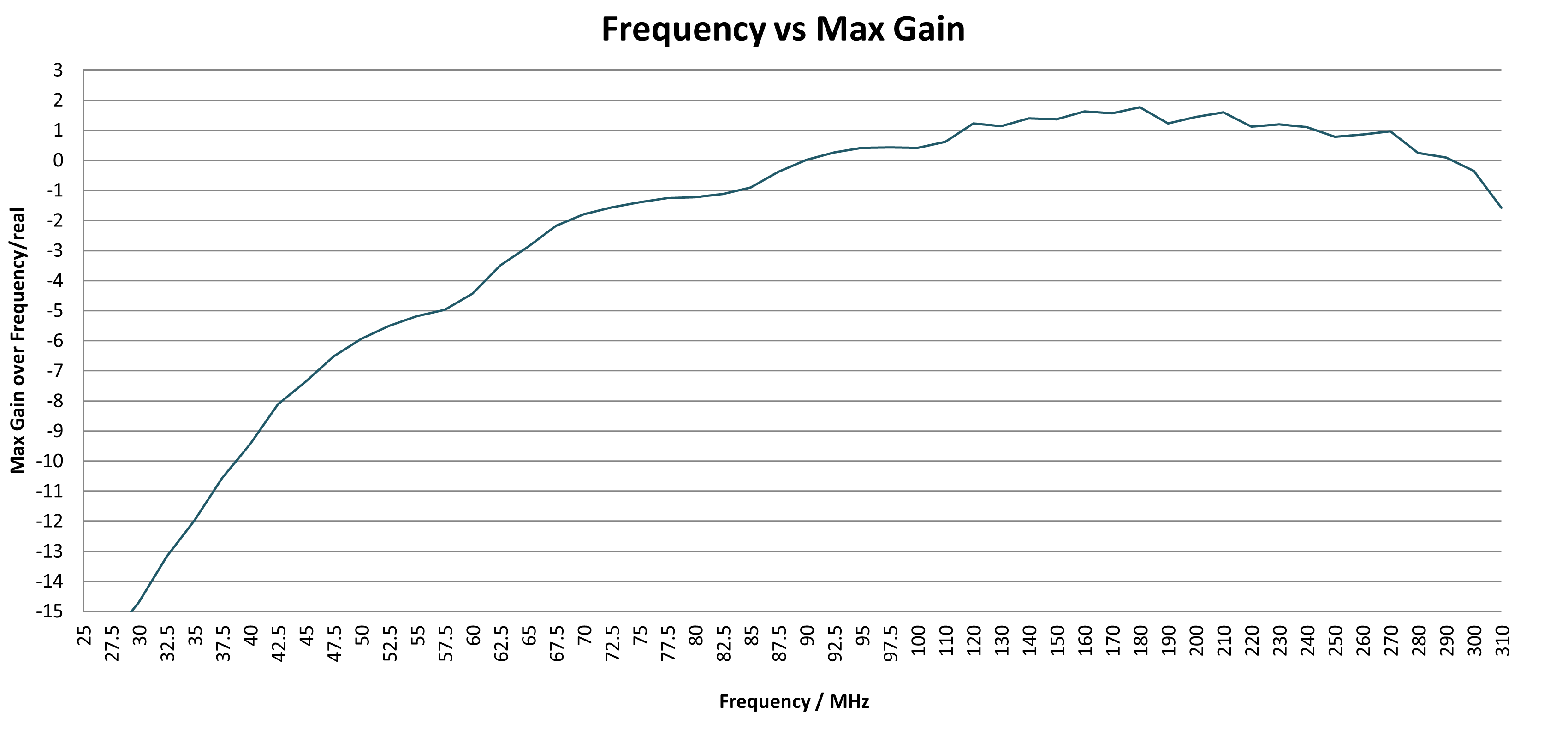

Frequency vs Max Gain 3m

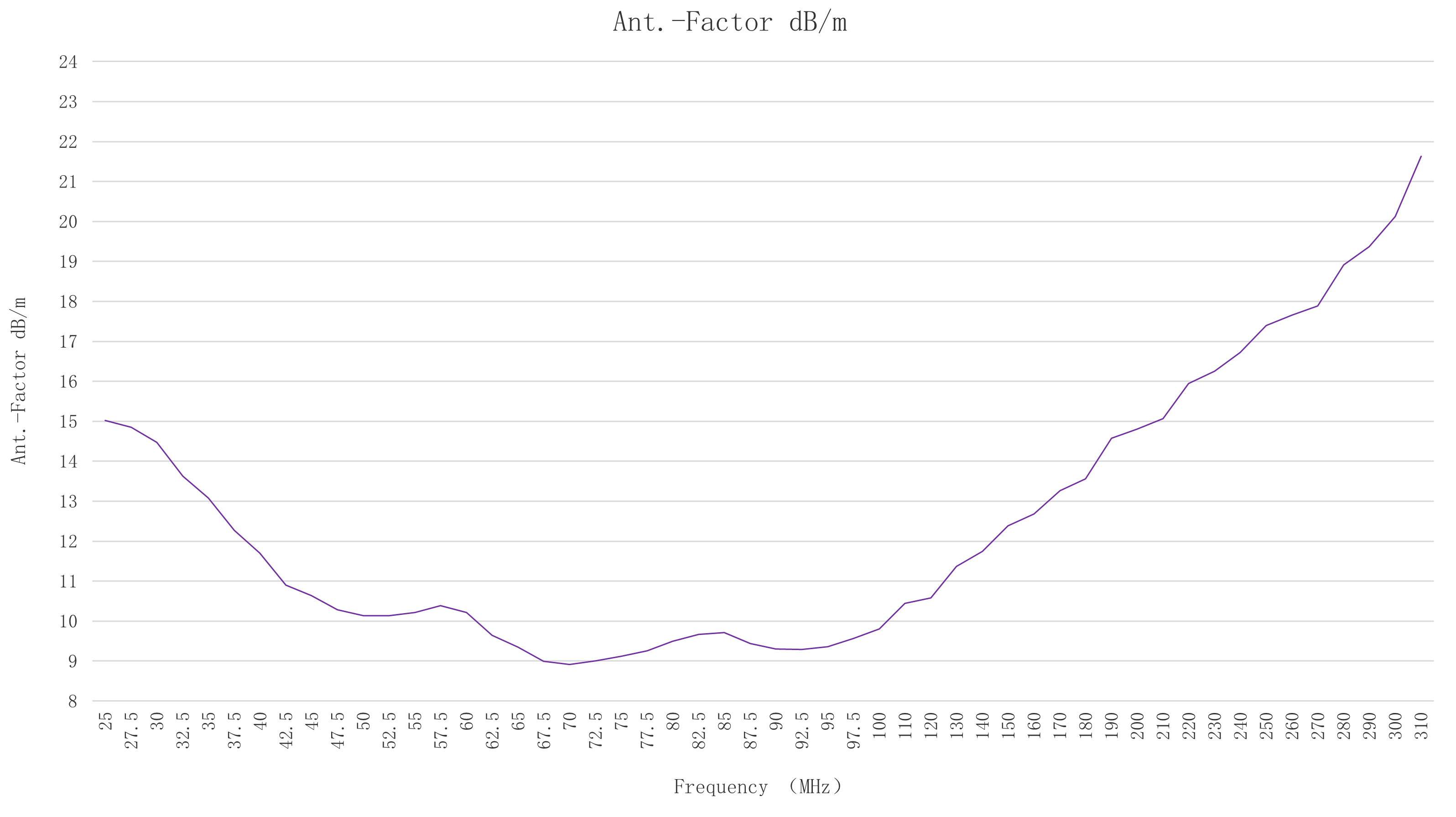

Ant.-Factor(dB/m) 3m

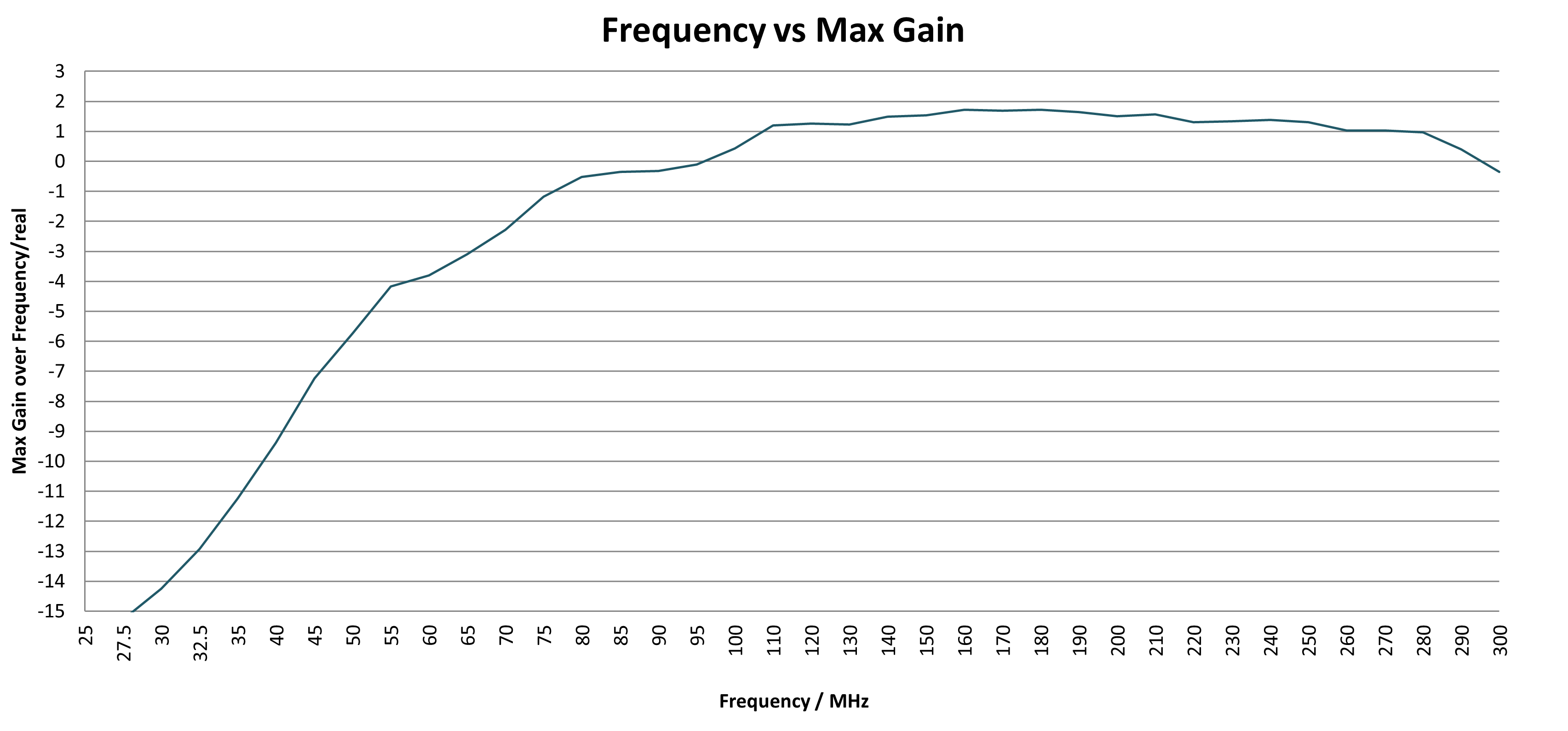

Frequency vs Max Gain 5.3m

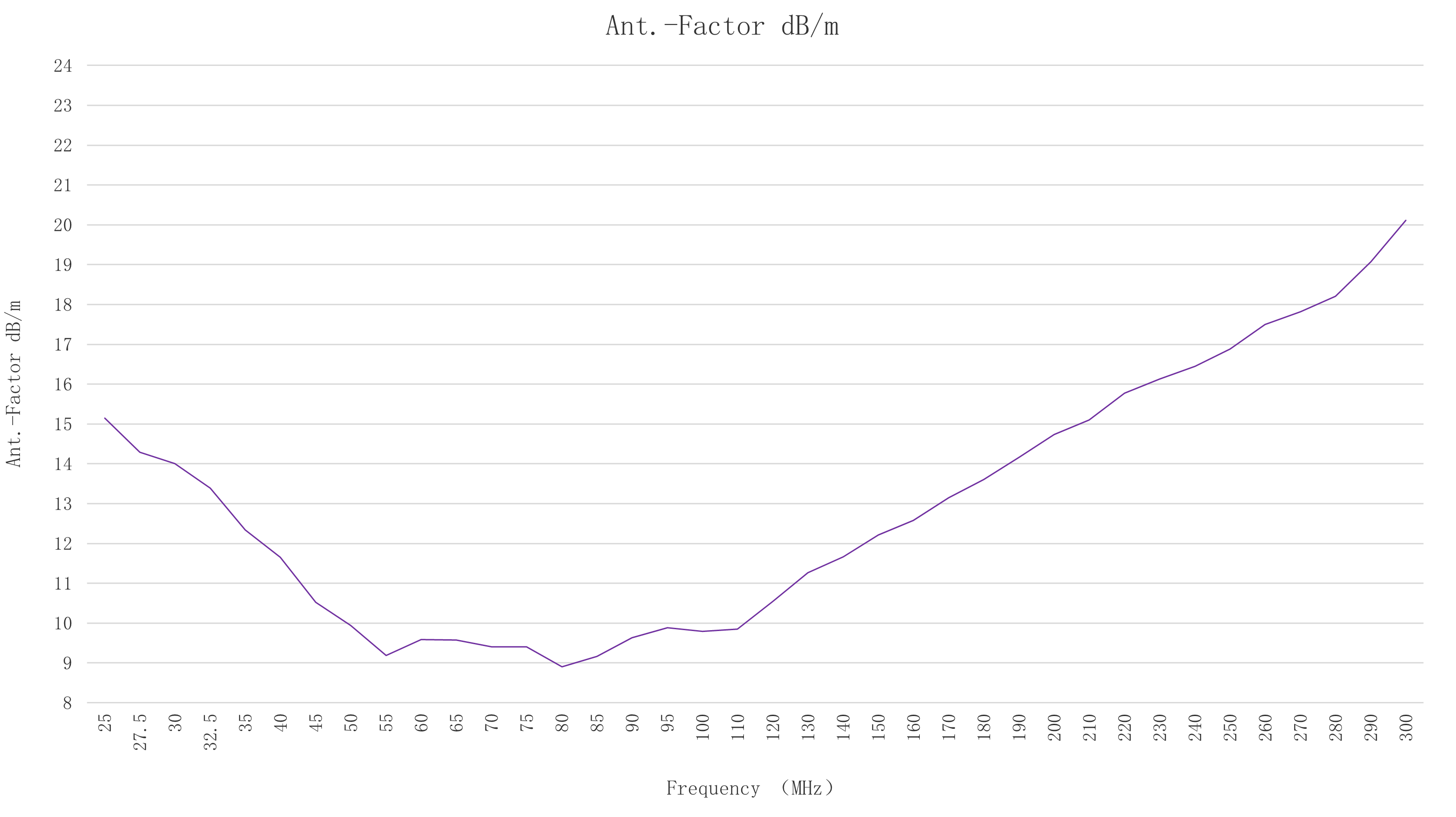

Ant.-Factor(dB/m) 5.3m
