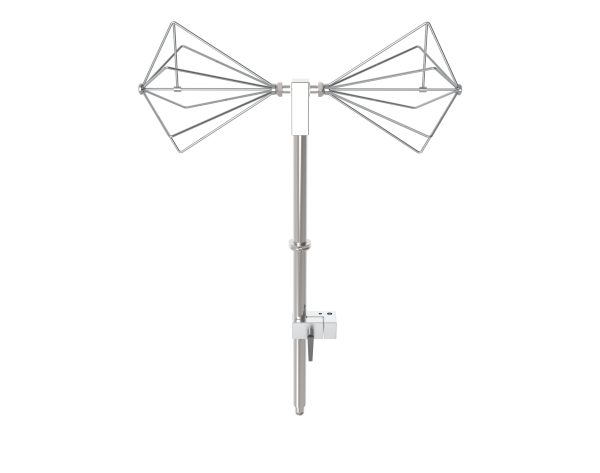

Biconical Antenna OBC1510

0 out of 5

The OBC1510 is a high-performance Biconical antenna, covering a wide frequency range from 150 MHz to 1000 MHz, and well-known for its perfect pattern stability with 10W power handling. The 1:1 Balun design of this model enhances gain and provides a more sensitive antenna factor. The OBC1510 features robust broadband characteristics, making it a popular choice for a wide range of EMI testing operations, including demonstrating compliance with FCC, CE, MIL-STD, RTCADO-160 and other criteria. It integrates flawlessly into scanning measurement and automated measurement systems, and is commonly used for transmission and immunity test to meet various EMC standard. Moreover, this antenna can completely replace traditional half-wave dipole antenna, providing a significant time saving.

SKU: OBC1510 Categories: Biconical Antenna, RF Antenna, Uncategorized

Description

Biconical Antenna OBC1510

OBC1510

The OBC1510 is a high-performance Biconical antenna, covering a wide frequency range from 150 MHz to 1000 MHz, and well-known for its perfect pattern stability with 10W power handling. The 1:1 Balun design of this model enhances gain and provides a more sensitive antenna factor. The OBC1510 features robust broadband characteristics, making it a popular choice for a wide range of EMI testing operations, including demonstrating compliance with FCC, CE, MIL-STD, RTCADO-160 and other criteria. It integrates flawlessly into scanning measurement and automated measurement systems, and is commonly used for transmission and immunity test to meet various EMC standard. Moreover, this antenna can completely replace traditional half-wave dipole antenna, providing a significant time saving.

Property

Value

Frequency Range

150∼1000 MHz

Power (EMC TX)

5 W

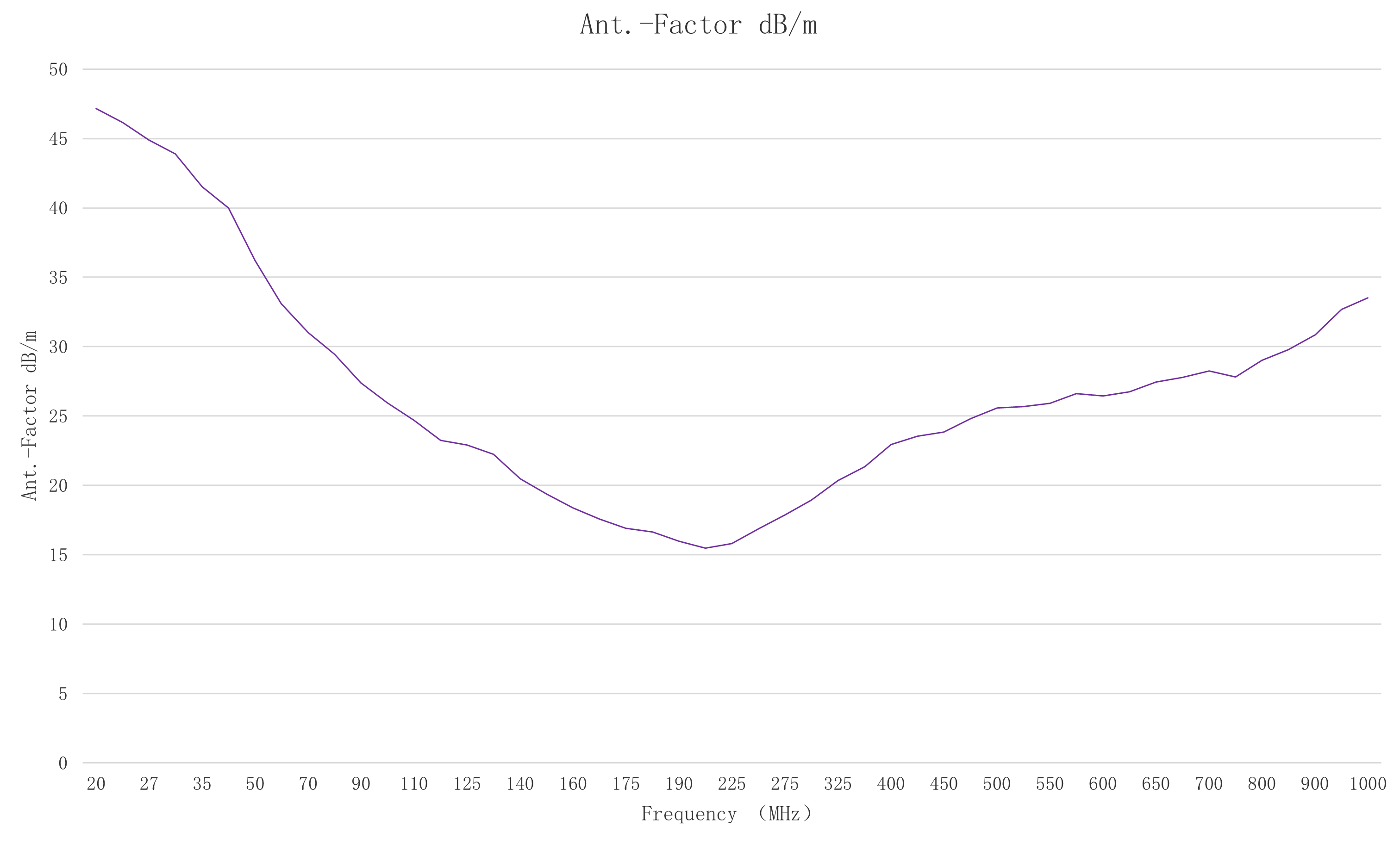

Antenna Factor

15 – 35 dB/m

Coaxial Connector

N-Buchse / N – female

Balun

(1:1)

Nominal Impedance

50 Ohm

Width LE

440 mm

Features

150-1000 MHz coverage.

Ensures reliable testing.

Manages up to 10W power.

Applications

EMC compliance testing.

Automated measurement integration.

Transmission and immunity testing.

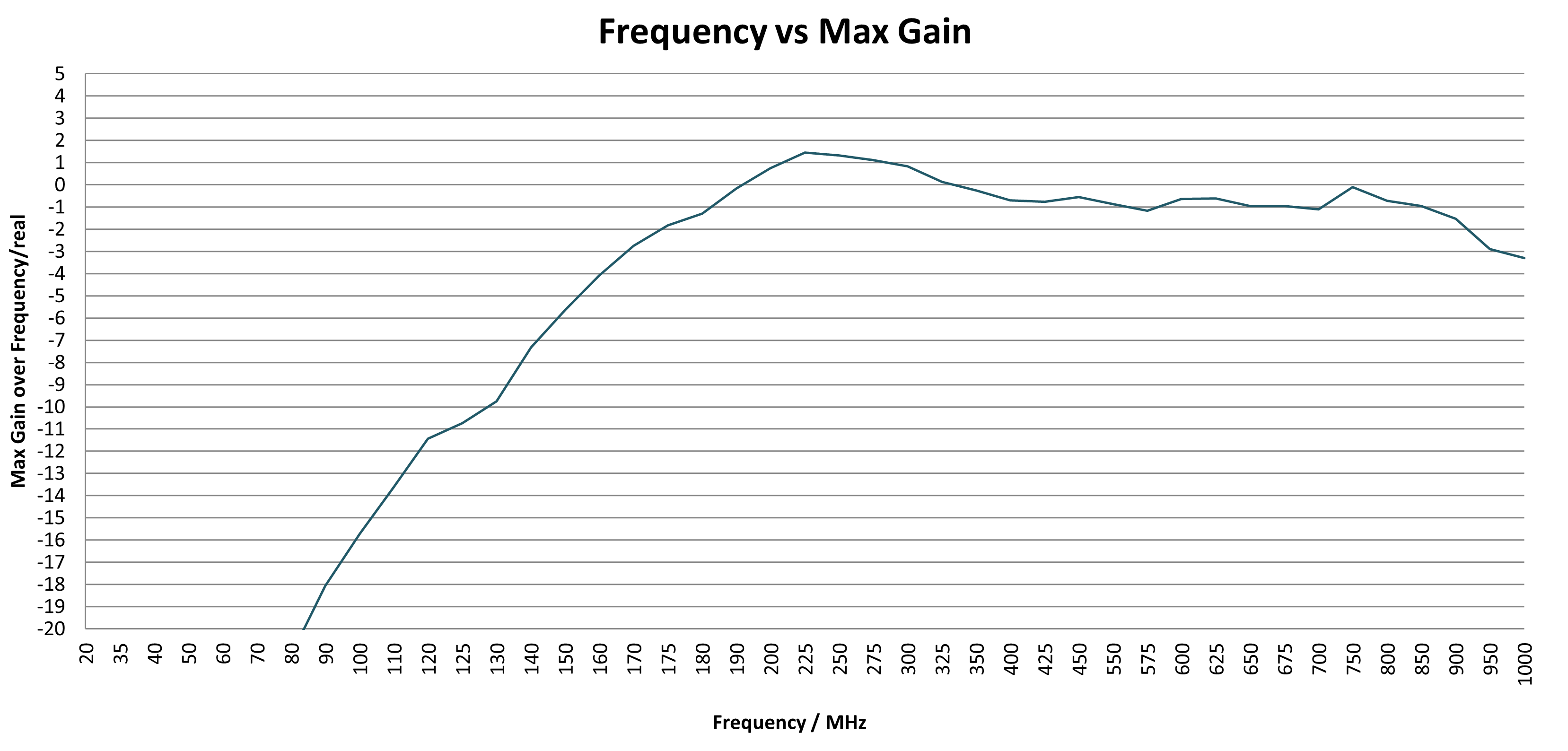

Frequency vs Max Gain

Ant.-Factor(dB/m)
