Cavity Band Pass OBP-1715-160

Cavity Band Pass OBP-1715-160

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-1715-160, its Center Frequency(F0) is 1715MHz, its Pass Band Bandwidth is 1635~1795MHz, its Pass Band Insertion Loss is ≤1.0dB, and its Pass Band VSWR is ≤1.3:1. Its Stop Band frequency is DC~1530MHz & 1900~3000MHz. The Stop Band Rejection is: ≥30dB

SKU: OBP-1715-160 Categories: ,

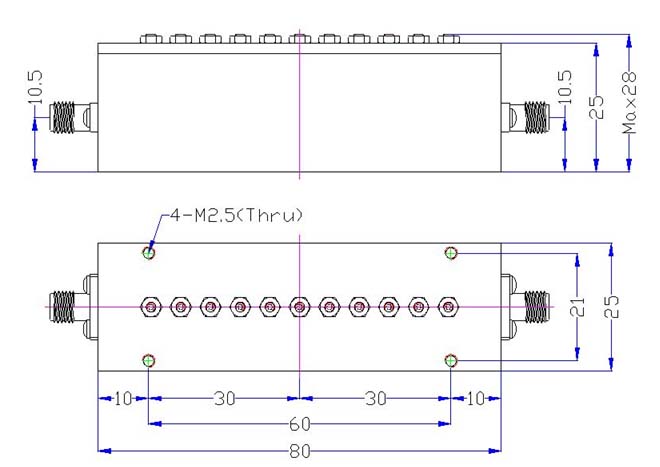

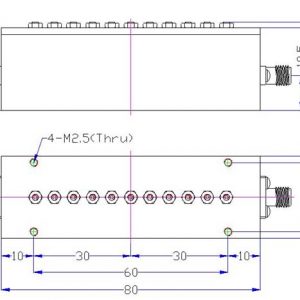

OBP 1715 160 outline Cavity Band Pass OBP-1715-160

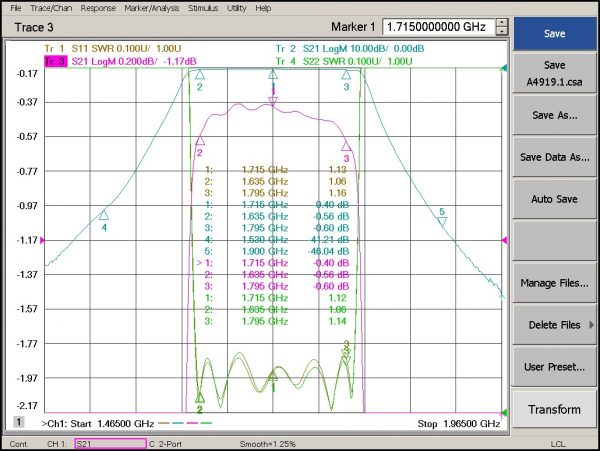

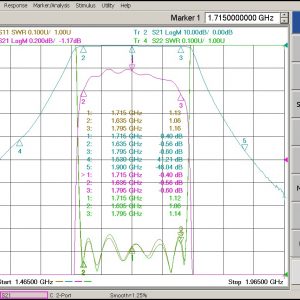

OBP 1715 160 plot1 Cavity Band Pass OBP-1715-160

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
