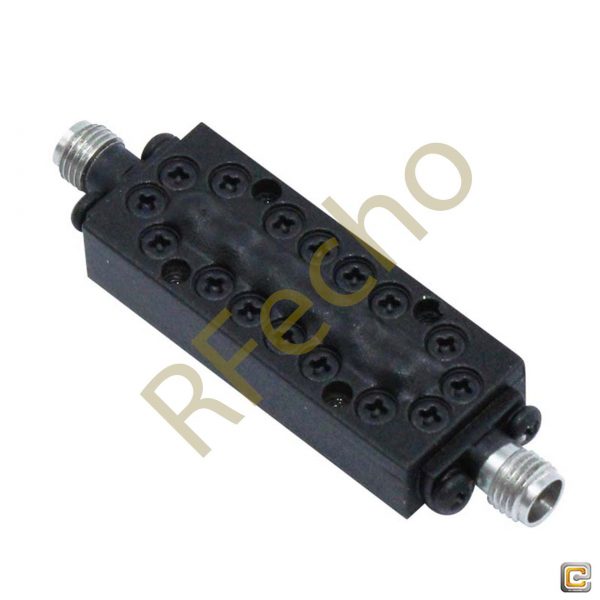

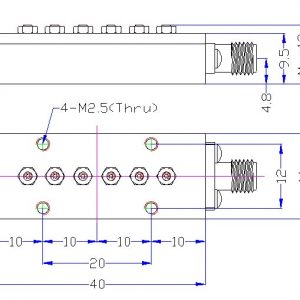

Bandpass Filter From 17.5GHz To 18.5GHz With SMA-Female Connectors

Cavity bandpass filter part number OBP-18000-1000 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 9.3GHz to 9.4GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.3:1 and a maximum power of 5 Watts.

SKU: OBP-18000-1000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Cavity bandpass filter part number OBP-18000-1000 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 17.5GHz to 18.5GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.3:1 and a maximum power of 5 Watts.

RFecho bandpass filter has a minimum passband frequency of 0.01 GHz and a maximum pass band frequency of 40 GHz. Cavity RF band-pass filter part number OBP-18000-1000 has an insertion loss maximum that is 1.0 dB. More coaxial SMA bandpass filter design specs for this radio frequency component can be found on its cavity RF bandpass filter PDF specifications datasheet.

RFecho also stocks a large selection of other RF filter products that will ship the same day from our location. RF/microwave and millimeter wave bandpass cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.



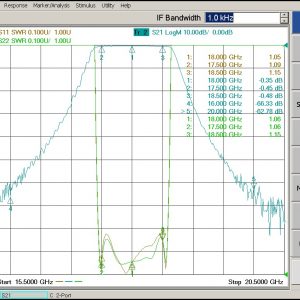

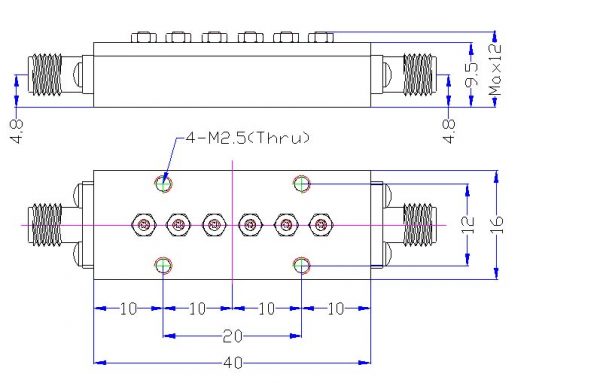

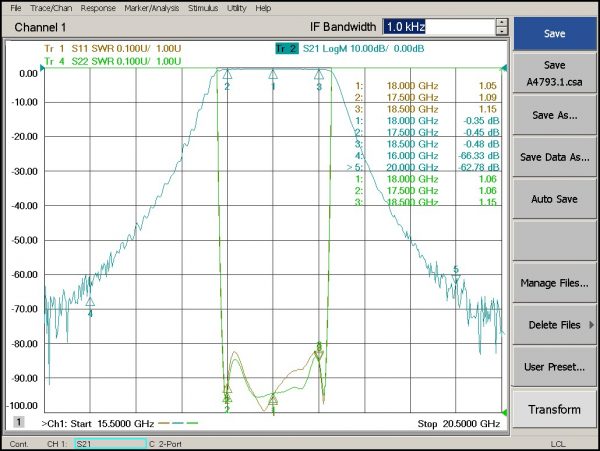

Bandpass Filter Datasheet (Click to download)

OBP-18000-1000

Additional information

Center Frequency (F0) (MHz)

18000

Min. Pass Band Frequency (MHz)

17500

Max. Pass Band Frequency (MHz)

18500

Pass Band Insertion Loss (dB)

≤1.0

Stop Band Rejection

≥45dB @ DC~16GHz ≥45dB @ 20~28GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

SMA-Female
