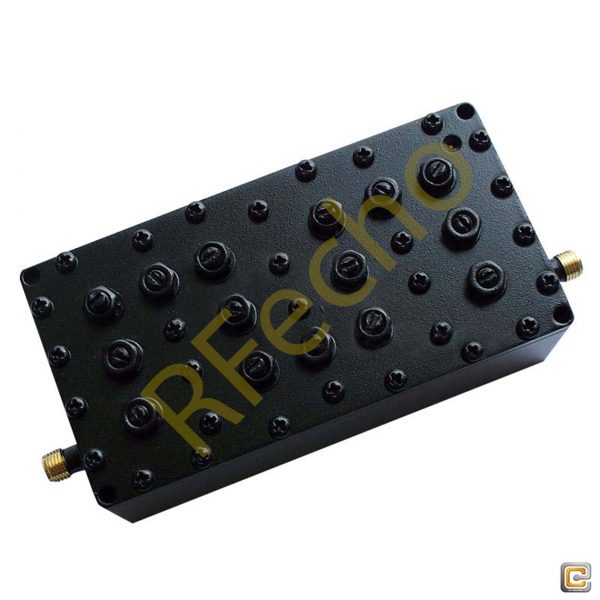

Cavity Band Pass OBP-1842-75

Cavity Band Pass OBP-1842-75

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-1842-75, its Center Frequency(F0) is1.8425GHz, its Pass Band Bandwidth is 1.805-1.88GHz, its Pass Band Insertion Loss is 1.5dB, and its Pass Band VSWR is1.4. Its Stop Band frequency is DC-1.2GHz &2.4-3GHz. The Stop Band Rejection is 70dB.

SKU: OBP-1842-75 Categories: ,

Description

PDF

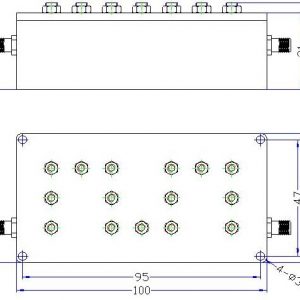

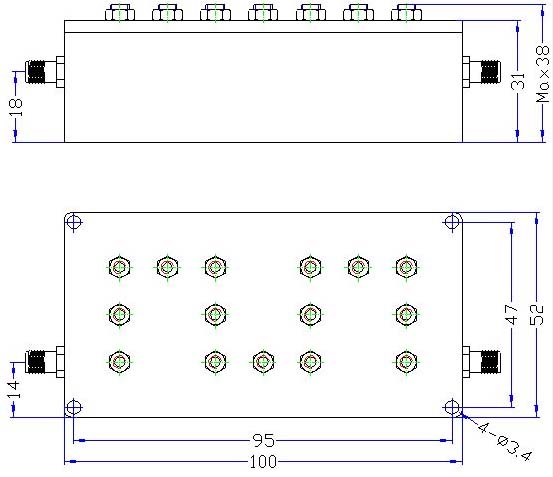

Outline

OBP 1842 75 outline Cavity Band Pass OBP-1842-75

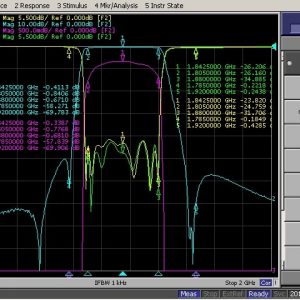

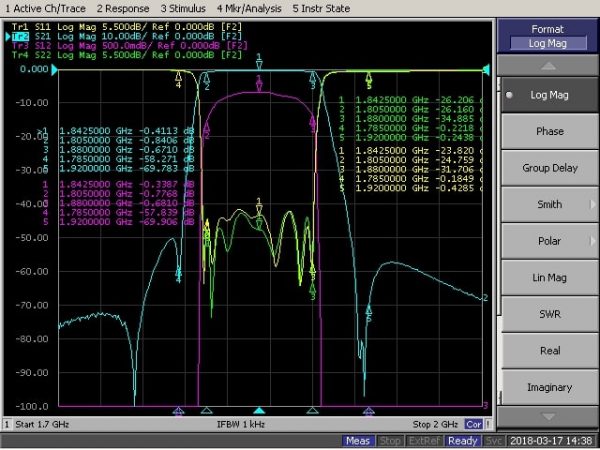

Plot

OBP 1842 75 plot1 Cavity Band Pass OBP-1842-75

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
