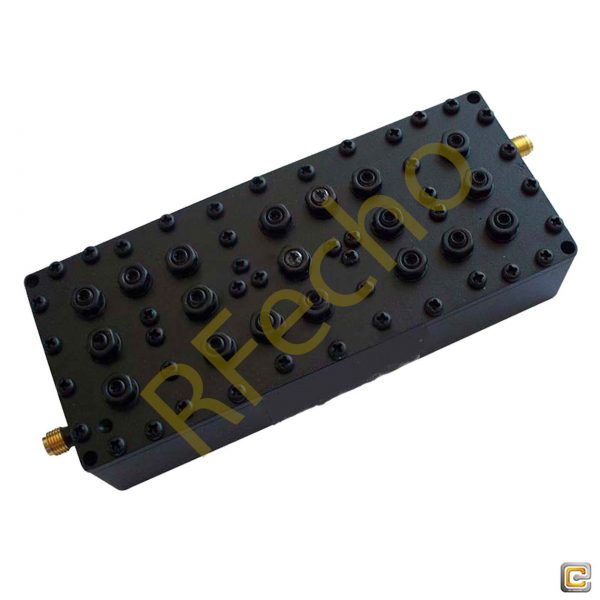

Cavity Band Pass OBP-2176.75-101.5
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-2176.75-101.5, its Center Frequency(F0) is 2176.75MHz, its Pass Band Bandwidth is 2126～2227.5MHz ,its Pass Band Insertion Loss is ≤2.0dB, and its Pass BandVSWR is ≤1.3:1. The Stop Band Rejection is: ≥30dB.
- Additional information
- Reviews (0)
|Center Frequency (F0) (MHz)|
|Min. Pass Band Frequency (MHz)|
|Max. Pass Band Frequency (MHz)|
|Pass Band Insertion Loss (dB)|
|Stop Band Rejection|
|Power Handling (W)|
