Cavity Band Pass OBP-2312.5-15

Cavity Band Pass OBP-2312.5-15

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequencyband to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-2312.5-15, itsCenter Frequency(F0) is 2312.5MHz, its Pass Band Bandwidth is2305~2320MHz, its Pass Band Insertion Loss is ≤1.5dB, and its Pass BandVSWR is ≤1.3:1.The Stop Band Rejection is≥50dB @F0±50.5MHz

SKU: OBP-2312.5-15 Categories: ,

Description

PDF

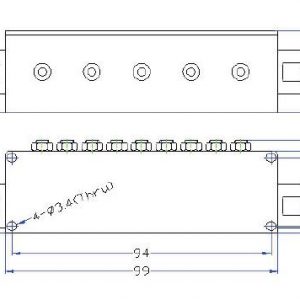

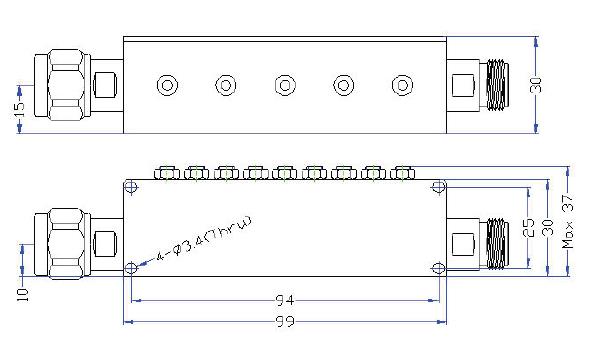

Outline

OBP 2312.5 15 outline Cavity Band Pass OBP-2312.5-15

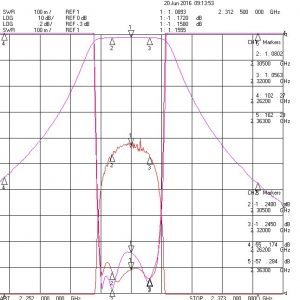

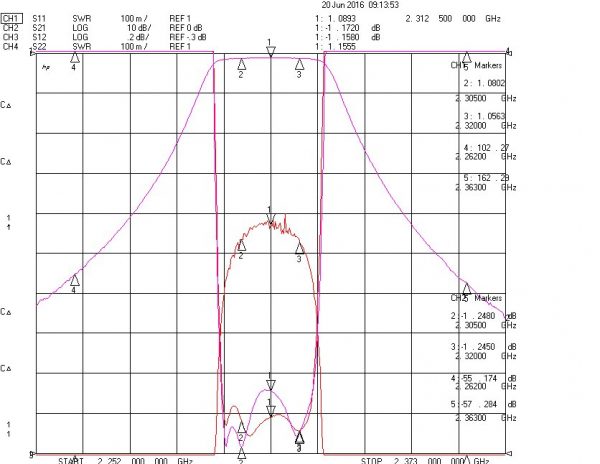

Plot

OBP 2312.5 15 plot1 Cavity Band Pass OBP-2312.5-15

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type

Reviews

There are no reviews yet.


Be the first to review “Cavity Band Pass OBP-2312.5-15”
